UDP Streamer
High-speed 10G Ethernet UDP streaming interface. Streams user data at line rate via UDP packets over 10 Gigabit Ethernet.
Introduction
The UDP Streamer block provides a high-speed 10 Gigabit Ethernet streaming interface. User data written to the internal FIFO is automatically packetized into UDP packets and transmitted over the network at 10G line rate.
This block is ideal for applications requiring continuous high-bandwidth data transfer to a host PC or network storage system.
Key Features:
- 10 Gigabit Ethernet (10GBASE-SR/LR via SFP+)
- Automatic UDP packet generation
- 4096-word internal FIFO buffer
- Configurable network parameters

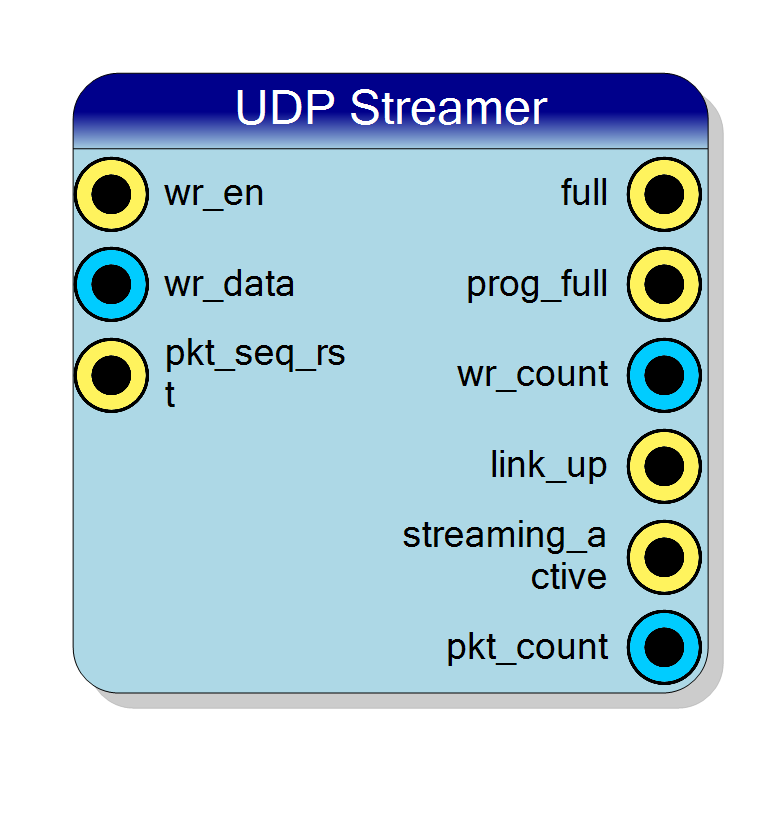

Pin Description
Write enable for the FIFO. Assert HIGH for one clock cycle to write wr_data into the FIFO.
Only write when full is LOW to avoid data loss.
FIFO programmable full flag. Asserts HIGH when the FIFO has fewer than 184 free slots (not enough space for a full UDP packet).
Use this for flow control to prevent overflow.
FIFO word count (16 bits). Indicates the number of 64-bit words currently stored in the FIFO.
Use this to calculate available space:
Available = 4096 - wr_count
This helps determine if a complete data block will fit before writing.
Ethernet link status. HIGH when the 10G Ethernet link is established and ready for transmission.
Wait for this signal before starting data transfer.
Packet counter (32 bits). Counts the total number of UDP packets transmitted since reset. Wraps around at 2^32.
Useful for debugging and monitoring throughput.
Local MAC address (48 bits). Only present when Local MAC Mode is set to “Configurable”.
Format: 48-bit vector, e.g., x"020000000001" for 02:00:00:00:00:01
Local IP address (32 bits). Only present when IP Parameters Mode is set to “Configurable”.
Format: 32-bit vector, e.g., x"C0A80180" for 192.168.1.128
Destination IP address (32 bits). Only present when IP Parameters Mode is set to “Configurable”.
This is the IP address of the receiving host (PC).
Gateway IP address (32 bits). Only present when IP Parameters Mode is set to “Configurable”.
Used for routing packets outside the local subnet.
Subnet mask (32 bits). Only present when IP Parameters Mode is set to “Configurable”.
Format: e.g., x"FFFFFF00" for 255.255.255.0

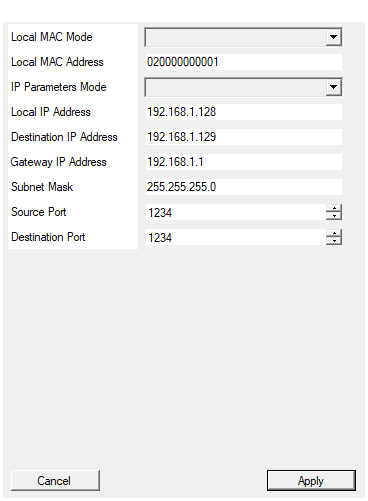

Properties
Set if Local MAC is fixed or configurable via input pin
Default: Fixed
Options: Fixed Configurable
Local MAC address (hex format, e.g. 020000000001)
Default: 020000000001
Set if all IP parameters (Local IP, Dest IP, Gateway, Subnet, Ports) are fixed or configurable via input pins
Default: Fixed
Options: Fixed Configurable
Local IP address (e.g. 192.168.1.128)
Default: 192.168.1.128
Destination IP address (e.g. 192.168.1.129)
Default: 192.168.1.129
Gateway IP address (e.g. 192.168.1.1)
Default: 192.168.1.1
Subnet mask (e.g. 255.255.255.0)
Default: 255.255.255.0
Source UDP port (e.g. 1234)
Default: 1234
Range: 1 – 65535
Destination UDP port (e.g. 1234)
Default: 1234
Range: 1 – 65535
Selects how the local MAC address is configured.
- Fixed: MAC address is set via the “Local MAC Address” property. No input pin is generated.
- Configurable: MAC address is provided via the LOCAL_MAC input pin at runtime.
Default: Fixed
Local MAC address in hexadecimal format (12 hex digits, no separators). Only used when “Local MAC Mode” is set to “Fixed”.
Example: 020000000001 for MAC 02:00:00:00:00:01
Default: 020000000001
Selects how all IP-related parameters are configured.
- Fixed: All parameters are set via properties. No input pins are generated.
- Configurable: All IP parameters are provided via input pins (LOCAL_IP, DEST_IP, GATEWAY_IP, SUBNET_MASK, SRC_PORT, DST_PORT).
Default: Fixed
Local IP address in dotted decimal format. Only used when “IP Parameters Mode” is set to “Fixed”.
Example: 192.168.1.128
Default: 192.168.1.128
Destination IP address (receiving host) in dotted decimal format. Only used when “IP Parameters Mode” is set to “Fixed”.
Example: 192.168.1.129
Default: 192.168.1.129
Gateway IP address in dotted decimal format. Only used when “IP Parameters Mode” is set to “Fixed”.
Example: 192.168.1.1
Default: 192.168.1.1
Subnet mask in dotted decimal format. Only used when “IP Parameters Mode” is set to “Fixed”.
Example: 255.255.255.0
Default: 255.255.255.0
Source UDP port number (1-65535). Only used when “IP Parameters Mode” is set to “Fixed”.
Default: 1234
Destination UDP port number (1-65535). Only used when “IP Parameters Mode” is set to “Fixed”.
Default: 1234
Usage
How It Works
The UDP Streamer operates as an asynchronous data streaming system:
- User logic writes 64-bit data words to the internal FIFO via wr_en and wr_data
- The module automatically packetizes data and sends UDP packets
- Status outputs provide feedback on FIFO state and link status
┌──────────────────────────────────────────────────────────────────┐
│ UDP Streamer Data Flow │
│ │
│ wr_data ────────►┌──────────────┐ ┌─────────────┐ │
│ (64-bit) │ FIFO │────►│ UDP/IP │────► SFP+│
│ wr_en ─────────►│ 4096 words │ │ Stack │ │
│ └──────────────┘ └─────────────┘ │
│ │ │
│ ▼ │
│ ┌──────────────┐ │
│ full ◄───────────│ Status │ │
│ prog_full ◄──────│ Outputs │ │
│ wr_count ◄───────│ │ │
│ └──────────────┘ │
└──────────────────────────────────────────────────────────────────┘
FIFO Buffer
The internal FIFO has a depth of 4096 words (64 bits each = 32 KB).
The wr_count output indicates how many words are currently stored in the FIFO. Use this to calculate available space before writing a burst of data:
Available space = 4096 - wr_count
Important: Before writing a large block of data, check that there is enough space in the FIFO to avoid overflow.
Automatic Packet Transmission
Packets are sent automatically under two conditions:
| Condition | Trigger | Packet Size |
|---|---|---|
| Full packet | FIFO contains ≥ 184 words | 184 words = 1472 bytes (MTU-optimal) |
| Timeout | 10 ms elapsed with data in FIFO | Variable (flushes all pending data) |
This design maximizes throughput by:
- Sending full MTU packets (1472 bytes payload) when possible
- Automatically flushing partial data after 10 ms to ensure low latency for sparse data
UDP Payload Structure:
- Each packet contains up to 184 × 64-bit words = 1472 bytes
- This fits within the standard Ethernet MTU of 1500 bytes (1472 + 20 IP + 8 UDP = 1500)
Network Configuration
Network parameters can be configured in two modes:
| Mode | Description |
|---|---|
| Fixed | Parameters are set at compile time via properties. No input pins are generated. |
| Configurable | Parameters are provided via input pins at runtime. Useful for dynamic configuration. |
MAC Address has a separate mode selector and can be configured independently.
IP Parameters (Local IP, Destination IP, Gateway, Subnet Mask, Ports) share a common mode selector. When set to “Configurable”, all IP-related pins are exposed.
Clock Domains
The module operates across two clock domains:
| Clock | Frequency | Usage |
|---|---|---|
| User Clock | Any (FIFO write side) | Your design clock for writing data |
| Core Clock | 156.25 MHz | Internal 10G Ethernet processing |
The internal FIFO handles clock domain crossing automatically. Status outputs (link_up, streaming_active, pkt_count) are synchronized to the 125 MHz system clock domain.
Typical Usage
vhdl
-- Example: Stream ADC data via UDP
process(clk)
begin
if rising_edge(clk) then
if adc_valid = '1' and udp_prog_full = '0' then
udp_wr_en <= "1";
udp_wr_data <= adc_data;
else
udp_wr_en <= "0";
end if;
end if;
end process;
Flow Control Tips:
- Monitor prog_full to prevent overflow
- Use wr_count to verify space before large bursts
- Check link_up before starting data transfer
Resources & Timing
-
Latency: Variable, depends on FIFO fill level and timeout
-
Throughput: 10 Gbps line rate (effective ~9.5 Gbps with protocol overhead)
- FIFO depth: 4096 × 64-bit words (32 KB)
- Maximum UDP payload: 1472 bytes (184 × 64-bit words)
- Automatic packet flush timeout: 10 ms
- Requires SFP+ transceiver for 10GBASE-SR/LR
- No software readout (data goes directly to network)
- ARP responses are handled automatically
