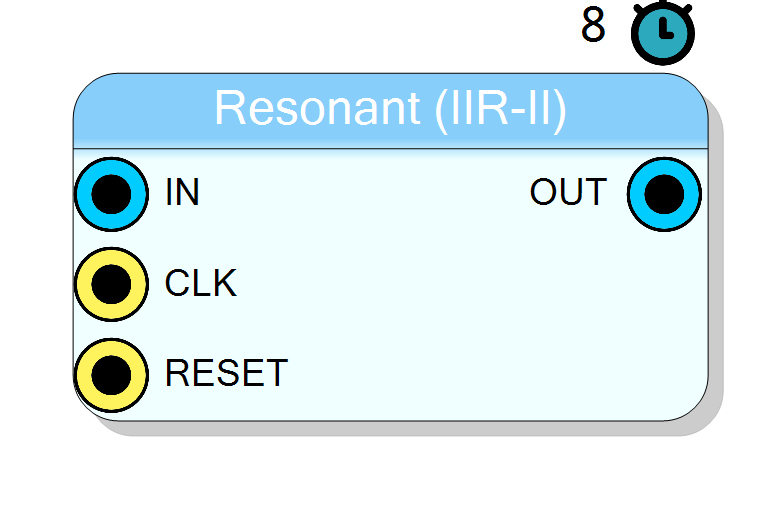

Block Preview

Introduction

The IIR Resonant - II Order block implements a second-order IIR resonant (peak) filter operating in real time on FPGA. A resonant filter (also known as peak or band-pass filter) amplifies a narrow frequency band while attenuating all other frequencies.

The filter is characterized by its center frequency and Q factor (quality factor), which determines the bandwidth of the resonance.

Pin Description

IN Input 16U/17S bit BIT VECTOR
Fixed-point number input. Supports 16-bit unsigned or 17-bit signed input based on the DataTypeIn property.
Default: Must be connected
CLK Input 1 bit BIT
Input signal used as clock. All filter operations are synchronous to this clock.
Default: Default Board Clock
RESET Input 1 bit BIT
Synchronous reset signal. Clears the filter state and all internal accumulators.
Default: Default Board Reset
OUT Output 16U/17S bit BIT VECTOR
Fixed-point number output. Same format as input (16-bit unsigned or 17-bit signed).

Properties

Property window

Cutoff (KHz) Cutoff

Set the filter pole/zero position according to the selected bandwidth in KHz

Default: 1000

Quality Factor Q

Quality factor. Dimensionless parameter that characterizes peak filter -3 dB bandwidth bw relative to its center frequency, Q = w0/bw.

Quality factor (Q factor). Determines the bandwidth of the peak: BW = f0/Q. Higher values create narrower peaks. Typical values: 10 to 100.

Default: 10

Input data type DataTypeIn

Select input data type

Input data format selection. Available values: Unsigned 16 bit, Signed 17 bit, default Unsigned 16 bit.

Default: UINT16

Options: UINT16 INT17

CenterFrequency CenterFrequency
Center frequency of the peak in kHz. The frequency at which maximum gain occurs. Must be less than half the sampling frequency (Nyquist limit).

Usage

Resonant Filter Characteristics

A resonant filter creates a “peak” in the frequency response at a specific frequency:

  • Center Frequency: The frequency at maximum gain
  • Q Factor: Quality factor that determines peak bandwidth (higher Q = narrower peak)
  • High Gain: Strong amplification at center frequency
  • Attenuation: Frequencies outside the peak are attenuated

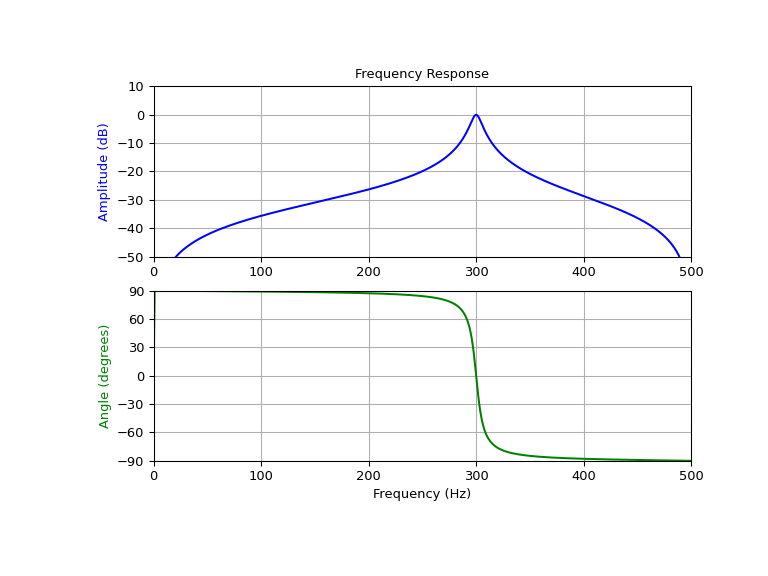

Resonant frequency response

Bandwidth and Q Factor

The relationship between Q factor and bandwidth:

$$ BW = \frac{f_0}{Q} $$

where:

  • BW: 3 dB bandwidth of the peak
  • f0: Center frequency
  • Q: Quality factor

Higher Q values create narrower, more selective peaks. Typical Q values range from 10 to 100.

Relationship to Notch Filter

The resonant (peak) filter is the complement of the notch filter:

Filter At f0 Away from f0
Notch Attenuates Passes
Resonant Amplifies Attenuates

Both use the same Q factor to control bandwidth.

Scattered Lookahead Implementation

To enable real-time FPGA operation at full clock rate, the filter uses the Scattered Lookahead technique:

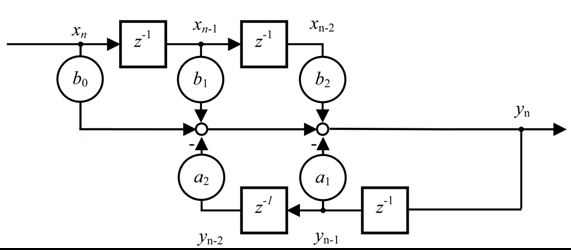

IIR block diagram

The standard IIR equation:

$$ y[n] = b_0 x[n] + b_1 x[n-1] + b_2 x[n-2] - a_1 y[n-1] - a_2 y[n-2] $$

Is transformed using scattered lookahead to:

Scattered lookahead structure

$$ y[j] = \sum_{k=0}^{6} b’_k x[j-k] - a’_3 y[j-3] - a’_6 y[j-6] $$

Reference: A universal look-ahead algorithm for pipelining IIR filters

Coefficient Calculation

SciCompiler automatically calculates the filter coefficients. The following Python code provides a reference implementation:

python
  import numpy as np
from scipy import signal

def scattered_lookahead_transform(a):
    A = np.array([[a[0], 0,    0,    0,      0,   ],
                  [a[1], a[0], 0,    0,      0,   ],
                  [a[2], a[1], a[0], 0,      0,   ],
                  [0,    0,    a[2], a[1], a[0],  ],
                  [0,    0,    0,    a[2], a[1],  ]])
    A_inv = np.linalg.inv(A)
    D = A_inv * [1, 0, 0, 0, 0]
    D1 = D[:,0]
    D = D[:,0].reshape(-1, 1)

    R = np.array([[ 0,   a[2], a[1],  a[0],  0,  ],
                  [0,   0,    0,    0,     a[2]]])

    Qw = np.dot(R, D)

    an = [1, Qw[0][0], Qw[1][0]]
    bn = D1
    return bn, an

fs = 250*1e6        # Sampling frequency
f0 = 10*1e6         # Peak center frequency
Q = 30              # Quality factor
w0 = f0/(fs/2)

b_z, a_z = signal.iirpeak(w0, Q)

print("original", b_z, a_z)
bn, an = scattered_lookahead_transform(a_z)

bq = np.convolve(bn, b_z)
aq = an

print("scattered", bq, aq)

Typical Applications

  • Detecting specific frequency components in signals
  • Audio equalization (enhancing specific frequency bands)
  • Narrowband signal extraction
  • Resonance detection in mechanical systems
  • Pilot tone detection in communication systems

Resources & Timing

  • Latency: 8 clock cycles
