Xilinx
TM

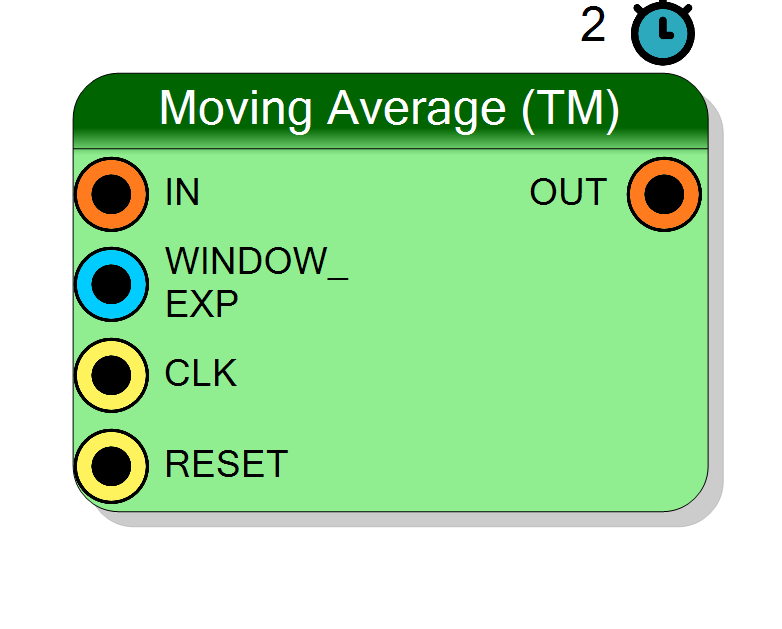

Block Preview

Introduction

This block computes the moving average of a time-multiplexed (TM) input stream over a programmable window of past samples. Each TM lane maintains its own independent circular buffer.

On every rising edge of CLK, the component updates:

$$ \mathrm{OUT}(n) = \frac{1}{W} \sum_{k=0}^{W-1} \mathrm{IN}(n-k), $$

where $W = 2^{\text{WINDOW_EXP}}$ is the window size determined by the exponent input WINDOW_EXP, and the division is implemented as a right-shift operation.

Pin Description

IN Input Variable bit TM
Input data stream, always TM. Width: Input bits × TM Factor Each TM lane has an independent circular buffer.
Default: Must be connected
WINDOW_EXP Input 16 bit BIT VECTOR
Window size exponent input, scalar (not TM), 16 bits. Window size is computed as $W = 2^{\text{WINDOW_EXP}}$. Valid range: 5 to 13 (window sizes: 32 to 8192 samples). Example: WINDOW_EXP = 5 → window of 32 samples. Applied to all TM lanes simultaneously.
Default: Must be connected
CLK Input 1 bit BIT
Global clock. Every rising edge updates buffers and computes new average for all TM phases in parallel.
Default: Default Board Clock
RESET Input 1 bit BIT
Synchronous reset, active high. Clears all circular buffers, accumulators, and pipeline stages.
Default: Default Board Reset
OUT Output 16 bit TM
Averaged output data, always TM. Width: Input bits × TM Factor (same as input) Valid data appear after 2 clock cycles + W/2 sample group delay.

Properties

Property window

Input bits InputSize

Set the number of bits of the input per sample

Number of bits per input sample ($N_\text{in}$). Range: 4 – 32. Output bit width matches input bit width.

Default: 16

Range: 4 – 32

Input sign InputSign

Select the sign/unsign of the input

Arithmetic type of input and output:

  • UNSIGNED → Non-negative integers
  • SIGNED → Two’s complement

Averaging preserves sign (signed average of signed inputs).

Default: UNSIGNED

Options: UNSIGNED SIGNED

TM Factor TMFactor

Select the Time Multiplexing factor (samples per word)

Number of time-multiplexed phases (samples per clock). Allowed values: 2, 4, 8, 16, 32. Each TM lane has an independent circular buffer of depth = Max Memory Length.

Default: 4

Options: 2 4 8 16 32

Max Memory Length MaxMemoryLength

Maximum buffer size (samples per TM lane). Stored in BRAM. Window input is 16 bits but limited to this value.

Maximum window size (buffer depth per TM lane), stored in BRAM. Allowed values: 32, 64, 128, 256, 512, 1024, 2048, 4096, 8192.

Larger buffers consume more BRAM:

  • BRAM usage ≈ (Input bits) × (Max Memory Length) × (TM Factor) / 18k bits

The WINDOW_EXP input can dynamically select any exponent from 5 to 13 (window sizes 32 to 8192) at runtime without reconfiguration, provided the resulting window size ≤ Max Memory Length.

Default: 1024

Options: 32 64 128 256 512 1024 2048 4096 8192

Functional description

The component is implemented using Xilinx HLS (High-Level Synthesis) and uses BRAM-based circular buffers for sample storage, replicated N times (where N = TM Factor) to support independent averaging per TM lane.

Window configuration

  • WINDOW_EXP: 16-bit input specifying the exponent of the window size
  • Window size is computed as $W = 2^{\text{WINDOW_EXP}}$
  • Max Memory Length: BRAM buffer size per TM lane (design-time parameter)
  • Valid exponent range: 5 to 13 (window sizes: 32 to 8192 samples)
WINDOW_EXP Window Size (samples)
5 32
6 64
7 128
8 256
9 512
10 1024
11 2048
12 4096
13 8192

Buffer operation

Each TM lane maintains:

  • Circular buffer of depth = Max Memory Length
  • Running sum accumulator
  • Write pointer (auto-increments each cycle)

The moving average is computed as:

$$ \text{avg}[n] = \frac{\text{sum}[n]}{W} = \frac{\text{sum}[n-1] - x[n-W] + x[n]}{W} $$

where $x[n-W]$ is fetched from the circular buffer.

Fixed-point precision

  • Input/Output bits: Same width (user-configurable, 4-32 bits)
  • Sign: Configurable (SIGNED/UNSIGNED)
  • Division: Implemented as right-shift by WINDOW_EXP bits (efficient for power-of-2)

Since the window size is always $W = 2^{\text{WINDOW_EXP}}$, the division is exact and computed as: $\text{avg} = \text{sum} \gg \text{WINDOW_EXP}$.

Mathematical background

For a moving average filter with window $W$:

$$ H(z) = \frac{1}{W} \cdot \frac{1 - z^{-W}}{1 - z^{-1}} $$

This is a lowpass FIR filter with:

  • First null at $f = f_s / W$ (where $f_s$ is sampling rate)
  • Passband droop: ~4 dB at DC for W ≥ 4
  • Linear phase (symmetric impulse response)

The filter attenuates high-frequency noise while preserving low-frequency signal components.

Timing

The HLS-generated IP has a fixed pipeline latency of 2 clock cycles:

Property Latency (clock cycles)
Moving Average (TM) 2

Total system delay: T_delay = 2 × T_CLK.

Note: This latency is in addition to the group delay of $W/2$ samples introduced by the averaging window itself.

Typical use cases

  • Noise reduction in ADC data streams
  • Baseline estimation for pulse detection
  • Trend analysis in time-series data
  • Smoothing of multi-channel detector signals

Waveform example

Example with TM Factor = 4, WINDOW_EXP = 1 (window size = 2), Input = [10, 20, 30, 40, 50, …].

Note: WINDOW_EXP = 1 → W = 2^1 = 2 samples, OUT = (IN[n] + IN[n-1]) / 2, with 2 cycle latency.
