RF Complex Conj-Multiplier (A*conj(B))
Per-sample complex conjugate multiplier: computes Y = A * conj(B) for two I/Q baseband streams at full precision. The phase of the result is the phase difference arg(A) - arg(B). Typical use: phase discriminator, Costas / PLL / carrier and symbol-timing recovery loops, differential demodulation.
Introduction
The Complex Conj-Multiplier multiplies operand A by the conjugate of operand B, sample by sample:
OUT_I[n] = A_I*B_I + A_Q*B_Q
OUT_Q[n] = A_Q*B_I - A_I*B_Q
Equivalently, with A = A_I + j*A_Q and B = B_I + j*B_Q,
OUT = A * conj(B)
Because arg(A*conj(B)) = arg(A) - arg(B), the argument of the output is
the instantaneous phase difference between the two inputs, and the
magnitude is |A|*|B|. All inputs are signed two’s complement.

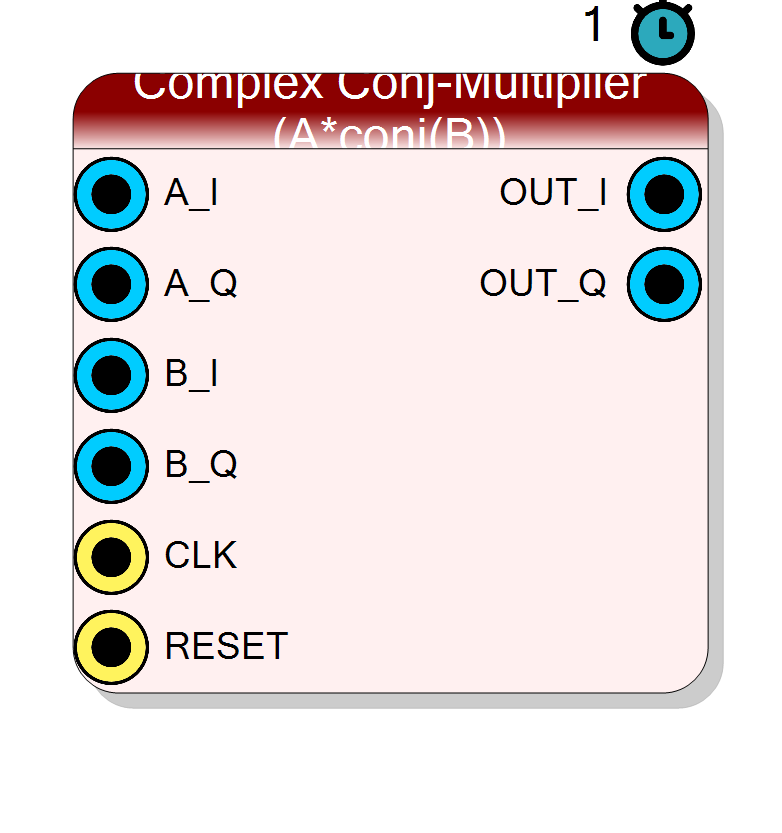

Pin Description
Properties
Bit width of each I/Q sample (signed). Output is 2*InputSize+1 (full precision).
Bit width of each signed I / Q input sample. Range 4 to 32, default 16. The output width is2*InputSize + 1 (full
precision).
Default: 16
Options: 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32
M+N+1 = full precision. M+N = drop the guard bit, SATURATE on the rare overflow. max(M,N) = shift right by min(M,N) then SATURATE to the input width (no growth). M=N=Input Bit Width.
Default: M+N+1 (full)
Options: M+N+1 (full) M+N (sat) max(M N)
Usage
Mathematical model
Writing the four real products
p1 = A_I*B_I p2 = A_Q*B_Q
p3 = A_Q*B_I p4 = A_I*B_Q
the outputs are
OUT_I = p1 + p2 (real part of A*conj(B))
OUT_Q = p3 - p4 (imag part of A*conj(B))
This is the standard “cross-multiply” phase-detector: OUT_Q (or
atan2(OUT_Q, OUT_I)) is the loop error in a carrier / timing recovery
loop, and OUT_I alone gives the in-phase (matched) correlation.
Bit widths
Data is signed two’s complement.
A_I,A_Q,B_I,B_Q: signedInputSizebits.- Each product is
2*InputSizebits; the sum / difference of two products needs one extra bit. OUT_I,OUT_Q: signed2*InputSize + 1bits (full precision, same growth as the complex Mixer).
Truncate or round downstream if fewer bits are needed.
Latency and throughput
#pragma HLS PIPELINE II=1: one sample pair per clock.- 1-clock latency.
- All data ports use the
ap_noneinterface (no ready/valid handshake); the core is free-running (ap_ctrl_none).
Reset
RESET is the HLS synchronous reset (ap_rst).
Typical applications
- Phase discriminator :
arg(A*conj(B)) = arg(A) - arg(B). - Costas loop / PLL carrier recovery and symbol-timing recovery.
- Differential demodulation :
A[n] * conj(A[n-1]).
Resources & Timing
-
Latency: 1 clock cycle
-
Throughput: 1 sample per clock (II=1)
Four real multiplies (four DSP48 slices for InputSize <= 18) plus two adders. Implemented with Vitis HLS. Free-running core (ap_ctrl_none), no handshake logic.
