DSP - BLOCK SKEWNESS

Introduction link

The Block Skewness block chops the input stream into consecutive blocks of N samples and, at the end of each block, publishes the skewness of that block:

$$ \mathrm{mean} = \frac{1}{N}\sum_{i=0}^{N-1} x_i , \qquad m_k = \frac{1}{N}\sum_{i=0}^{N-1} (x_i - \mathrm{mean})^k $$

$$ \mathrm{skew} = \frac{m_3}{\sigma^3} = \frac{m_3}{m_2^{3/2}} $$

It is the normalised third central moment, and what it measures is ASYMMETRY.

N is a runtime input, not a property. You drive the exponent on the EXP pin and the block size is $N = 2^{\mathrm{EXP}}$:

How to read the number link

Skewness is dimensionless and gain independent: multiply every sample by ten and it does not move. That is what makes it comparable across channels, across gains and across days, and it is why the output format spends its bits on the fraction rather than on range.

What it is FOR link

• Detecting one-sided activity on a quiet channel. A baseline that is clean has skewness 0; the same baseline with a few unipolar pulses on it does not, even when the mean has barely moved and the variance is still small. Because the answer does not depend on gain, one threshold works for every channel.
• Telling a pulse train from noise. Noise is symmetric, pulses are not. Where the variance says “something is happening” the skewness says “and it only goes one way”.
• Polarity discrimination. The sign is the information: it tells you which way the tail points, which is exactly what distinguishes a positive pulse train from a negative one, or an over-shooting baseline restore from an under-shooting one.
• Distribution shape monitoring in slow control - a channel whose skewness starts drifting away from zero is developing an asymmetry (leakage, saturation on one rail, a pile-up tail) long before the mean or the RMS notice.

No histogram, no second pass, no buffer link

The obvious way to get a central moment is to compute the mean, go back over the samples and accumulate $(x - \mathrm{mean})^3$. That needs the block stored, i.e. a memory of $2^{\mathrm{EXP}}$ samples and a second pass - which would halve the throughput and put a BRAM in the design.

This block does none of that. It keeps three ordinary accumulators,

$$ S_1 = \sum x_i , \qquad S_2 = \sum x_i^2 , \qquad S_3 = \sum x_i^3 $$

each updated once per clock, and recovers the third central moment at the end of the block from an exact integer identity (see the description below). There is no sample buffer, no histogram and no second pass anywhere in the block.

Cost link

Per clock, while accumulating: two real multipliers - one for $x \cdot x$ and one for $(x \cdot x) \cdot x$ - because they run at one sample per clock and cannot be serialised, plus the three accumulators.

In the tail: one reused shift-add stage (it does all three products) and one reused compare-subtract stage each for the square root and for the division. What the tail costs is CLOCKS, not multipliers - there is no DSP in the tail at all. The clocks are what you have to budget for; see “Timing” below, because this is one of the long tails of the family.

When to use this instead of Block Statistics link

The all-in-one Block Statistics block is not deprecated, but it does not compute skewness - there is no SKEWNESS pin over there, so for this number there is no choice to make: this block is the only way to get it.

The usual family rule still applies to everything around it:

• you want several statistics of the SAME block - mean and RMS and min/max of the same N samples - place one Block Statistics block. They share one accumulator set and one serial tail, so the second and third statistic are nearly free.
• you want exactly one number - use the matching per-operator block. Then you synthesise only that number, and nothing else reaches the synthesiser.

A Block Skewness block placed next to a Block Statistics block accumulates the same stream a second time: $S_1$ and $S_2$ exist in both. That is the price of a statistic the all-in-one block does not have, and it is usually worth paying - the alternative is a histogram.

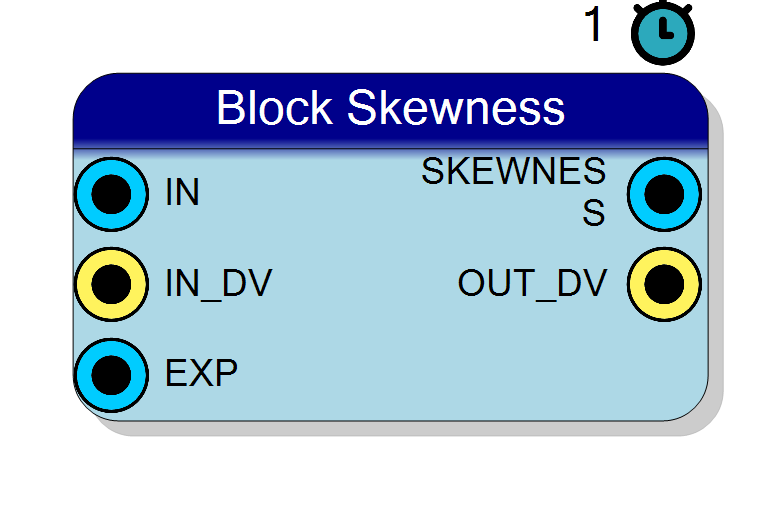

Pin Description link

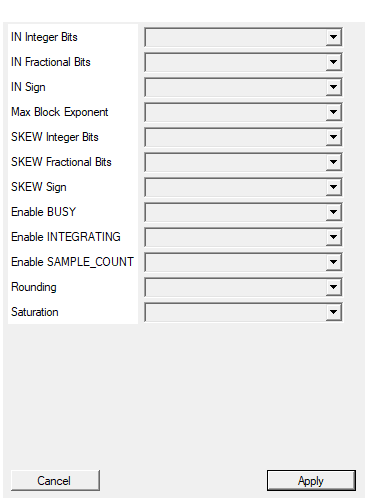

Properties link

The exact integer identity link

Expanding the third central moment and clearing the denominators turns the definition into a ratio of two integers built from the raw power sums:

$$ A = N^2 S_3 - 3 N S_1 S_2 + 2 S_1^3 ;=; N^3 m_3 $$

$$ D = N S_2 - S_1^2 ;=; N^2 m_2 ;\ge; 0 $$

$$ \mathrm{skew} = \frac{A}{D^{3/2}} $$

Every factor of $N$ in there is a shift - N is a power of two - and the $N^3$ scalings cancel exactly between numerator and denominator. So neither $N$ nor the input fractional bits appear anywhere in the arithmetic: the answer is a pure ratio of two exact integers, built without a single premature rounding.

Why a symmetric block gives EXACTLY zero link

$A$ is an exact integer, and for a sample set that is symmetric about its mean it really is 0 - not “small”, not “within a few LSB”. The reported skewness is therefore exactly 0, with no rounding noise to drift through a threshold.

That is worth having, and it is the reason the block is built this way. A skewness estimator that wanders off zero on symmetric data is useless as a trigger: you would have to put a dead band around zero, and the dead band would have to be sized for the worst case of a quantity you were trying to measure. Here there is nothing to dead-band.

$D^{3/2}$ is BUILT, not approximated link

The denominator is an odd power, so a square root is unavoidable. The core takes $\mathrm{root} = \sqrt{D}$ with SQG = 4 guard bits and then multiplies it by $D$:

$$ D \cdot \mathrm{root} = D^{3/2} \cdot 2^{\mathrm{SQG}} $$

and the numerator is shifted by that same SQG so the guard bits cancel. Nothing is ever cubed and square-rooted twice, and there is exactly one root in the block.

A constant block has no skewness, and the arithmetic says so link

If every sample equals $c$ then

$$ A = N^3 c^3 - 3 N^3 c^3 + 2 N^3 c^3 = 0 \qquad\text{and}\qquad D = 0 $$

so the zero-denominator path always finds a zero numerator and reports 0. The truncated root cannot break that: $D \ge 1$ gives $\mathrm{root} \ge \sqrt{2^{2,\mathrm{SQG}}} = 16$, so root == 0 if and only if D == 0. The saturating branch of the ratio is therefore unreachable through the ports - a constant block reports 0, never a full-scale spike.

Accuracy link

Two things happen after the exact integers: the root is up to 1 ulp low (at $2^{-\mathrm{SQG}}$ = 1/16 of a SKEWNESS LSB), and the quotient is floored - it already comes out at exactly SKEW Fractional Bits fractional bits, so nothing is shifted or re-rounded afterwards. The answer is therefore within 1 LSB of the exactly-rounded value.

The host regression (tb/block-ops/run_tb.ps1) checks that against a Python golden (tb/block-ops/gen_golden.py) which evaluates $m_3 / m_2^{3/2}$ in exact rational arithmetic and shares no algorithm with the core. Its tolerance is 1 LSB, plus a small value-dependent allowance that propagates the truncated root through the division - about $2,|\mathrm{skew}| / \mathrm{root}$, which is a fraction of an LSB for any block whose $D$ is of realistic size. The symmetric and constant scenarios are checked at tolerance 0: they must be exactly 0.

Accumulation and IN_DV link

IN_DV is the only qualifier. It says “this clock carries a sample”: a sample is added into $S_1$, squared into $S_2$, cubed into $S_3$, and counts towards N, exactly on the clocks where IN_DV is high. Clocks with IN_DV low are ignored completely - whatever sits on IN during them cannot corrupt the block - while the serial tail keeps running, which is what you want: the tail has nothing to do with the input stream.

Unconnected, IN_DV ties to '1' and EXP ties to 10 (N = 1024), so the block free-runs with nothing wired except IN.

There is deliberately no CE pin. On the all-in-one Block Statistics block an earlier revision had one, and it did not survive synthesis: with nothing but internal state gated by it, Vitis could reason the frozen path away and delete the port from the generated entity while SciCompiler’s wrapper still wired it, which failed a real Vivado build with [VRFC 10-718] formal port <ce> does not exist in entity. The whole per-operator family was built without one. To stall this block, gate its IN_DV - a block that only accumulates on IN_DV has no need to be frozen, and there is no reason to stall the tail.

There is no LEVEL pin either: a central moment is referred to the block’s own mean, by definition.

When EXP changes link

EXP is clamped to Max Block Exponent and then latched on the first accepted sample of a block, and held for that whole block. A change therefore takes effect on the NEXT block: a block in progress always finishes against the N it was started with, and a block is never emitted against a different N than the one it was accumulated with. The latched exponent is the one used for every $N$, $N^2$ and $N^3$ shift in the identity, so the arithmetic of a block is always self-consistent.

Timing: the serial tail link

The state walk link

A block has a whole block period of slack after its N-th sample, so all post-accumulation arithmetic is serial. Four passes reuse one shift-add stage, and the root and the division reuse one compare-subtract stage each:

  IDLE -(block complete)-> MUL2 (|S1|*|S1|) -> MUL3 (|S1|^2*|S1|)
     -> MULM (S2*|S1|) -> VAR (form D and A) -> LD
     -> SQRT x ROOTW -> MULD (D*root) x ROOTW -> CLD -> DIV x CNUMW
     -> FIN -> IDLE


OUT_DV pulses for one clock when the tail COMPLETES - not when the N-th sample arrives - and SKEWNESS is updated on that same clock and on no other.

The latency contract link

Counted in clocks from the clock on which the N-th sample of the block was accepted:

$$ L = 3,(\mathrm{IN_SW} + \mathrm{EXP}) + 2,\mathrm{ROOTW} + \mathrm{CNUMW} + 5 $$

where $\mathrm{IN_SW}$ is the signed working width of a sample - the input width, +1 if the input is UNSIGNED (a sample has to be promoted to signed before it can be accumulated) - and the two engine widths are fixed at compile time by your formats:

$$ \mathrm{ROOTW} = \mathrm{IN_SW} + \mathrm{MaxBlockExponent} + 4 $$

$$ \mathrm{CNUMW} = \max\bigl(3,(\mathrm{IN_SW} + \mathrm{MaxBlockExponent}) + \mathrm{SKEW_{fract}} + 4,; \mathrm{SKEWNESS\ width} + 2\bigr) $$

The 4 in both is the square-root guard SQG. The three serial products consume $\mathrm{IN_SW} + \mathrm{EXP}$ bits each, which is where the runtime exponent enters; everything else is fixed at compile time by your formats and by Max Block Exponent.

Note what this means: raising Max Block Exponent lengthens the tail here, unlike on Block Mean where it costs only accumulator width. It widens both the root (one clock per bit, twice - once for the root and once for the $D \cdot \mathrm{root}$ product) and the divider (three clocks per bit). Keep it at the largest block you actually use.

Worked numbers link

Take a 16 bit signed input at the default formats (SKEWNESS Q6.10, Max Block Exponent 20):

• $\mathrm{IN_SW} = 16$
• $\mathrm{ROOTW} = 16 + 20 + 4 = 40$
• $\mathrm{CNUMW} = \max(3 \cdot 36 + 10 + 4,; 16 + 2) = \max(122, 18) = 122$
• $L = 3,(16 + \mathrm{EXP}) + 80 + 122 + 5 = 255 + 3,\mathrm{EXP}$

At EXP = 8 that is $L = 279$ clocks and $2^8 = 256 < 279$: it does not fit. At EXP = 9 it is $L = 282$ and $2^9 = 512 \ge 282$: it does. The minimum usable EXP is 9, a block of 512 samples, and every larger exponent fits too - the block grows exponentially while the tail grows linearly. At the default EXP = 10 the tail is 285 clocks inside a 1024-sample block, i.e. about 72 % idle.

A few more configurations, to show where the clocks go:

Budget a long block. Even the cheapest configuration in that table needs N = 256; there is no useful setting of this block that works at EXP = 5. If your application really wants a short block, the number you can still get cheaply is the variance (Block Variance, whose tail is $\mathrm{IN_SW} + \mathrm{EXP} + 3$ clocks) - but it will not tell you anything about asymmetry.

The 2^EXP >= L rule, and what happens when it is broken link

The tail of one block must finish before the next block completes:

$$ 2^{\mathrm{EXP}} \ge L $$

A completed block is only handed to the tail when the tail is IDLE, so if a block completes while the previous tail is still running, that block’s result is DROPPED: there is no OUT_DV for it, the accumulators are unaffected and the following blocks come out correctly, but a result is silently skipped. There is no error pin and no overrun pin for it.

Two things guard against it, and one hole remains:

• the property page refuses a configuration whose minimum exponent exceeds Max Block Exponent, telling you the tail length and the exponent it would need;
• CompileHDL prints both numbers - the worst-case tail length and the minimum usable EXP - into the compilation log for every placement;
• but EXP is a PIN. Nothing can stop a design driving it too low at RUN TIME, and with L in the hundreds of clocks this is the block where that bites hardest: an EXP of 6 that would be perfectly reasonable on Block Mean drops every result here. If EXP is under software control, clamp it in software to the minimum the compiler printed.

Knowing where the block is: BUSY, INTEGRATING and SAMPLE_COUNT link

Three optional status outputs, all defaulting to NO. They answer different questions, and on this block the difference is at its most useful, because the tail is long:

Every output of this block is a register, so each status bit is observed on the clock after the event that sets it:

• INTEGRATING rises on the clock after the FIRST sample of a block is accepted and falls on the clock after the N-th - it is high exactly while the block is ACCUMULATING, and never during the tail. BUSY high with INTEGRATING low is precisely the three-products-root-divide tail.
• BUSY covers the accumulation and the tail. It rises with INTEGRATING, stays high across the tail, and its LAST HIGH CLOCK IS THE OUT_DV PULSE; it falls on the clock after.
• On a continuous stream the next block starts before the previous tail ends, so BUSY never drops and INTEGRATING dips for exactly one clock per block boundary - which makes it a free block marker.
• SAMPLE_COUNT is a fixed 32 bits and reads 1 after the first accepted sample, N after the N-th. It is NOT cleared at the block end: it HOLDS the final count through the tail and past OUT_DV, until the first sample of the next block takes it back to 1. it reads N at OUT_DV only when the input STOPS for the whole tail. On a CONTINUOUS stream the next block has already started by then, so OUT_DV shows how far into it the input has got, not N - the clock that always reads N is the one INTEGRATING falls on - which is the useful thing to latch alongside the result, and here also the cheapest way to confirm at run time that the block was long enough for the tail. Only RESET clears it to 0.

Q formats link

Both data ports carry their own fixed point format (integer bits, fractional bits, sign), the same convention as the Fixed P. family. The quotient already carries exactly SKEW Fractional Bits fractional bits, so the final requantisation is a zero-bit shift: the value is not rounded again on the way out, only checked against the format bounds, with saturation symmetric for signed formats as everywhere else in the toolchain.

Sizing is unusual here, and easy:

• skewness is dimensionless and for any realistic signal sits within a few units, so the default 6 integer bits (up to 31 in magnitude) is generous. The bits belong in the fraction: the default 10 give steps of 1/1024, and each one costs three clocks of tail through CNUMW.
• keep it SIGNED. The sign IS the information - an UNSIGNED SKEWNESS format throws away the direction of the asymmetry and clamps every negatively-skewed block to 0. UNSIGNED is offered for completeness, not as a recommendation.
• the input Q format does not enter the value at all: the identity is scale free, so IN_BitsFract changes nothing about the answer (only the tail length, through IN_SW).

Verification link

The core is regression tested by a host-side csim harness (tb/block-ops/run_tb.ps1) that runs one simulated clock at a time and follows OUT_DV. The expected values come from tb/block-ops/gen_golden.py, which evaluates $m_3 / m_2^{3/2}$ in exact rational arithmetic and shares no algorithm with the core. Coverage includes a positively skewed pattern - a quiet baseline with large positive excursions - and its exact mirror image, which is what pins the SIGN of the third moment (a symmetric vector gives 0 either way and proves nothing); a symmetric extremes pattern, which must read exactly 0; a constant block (the D == 0 path, which must read 0 and not saturate); pseudo-random input; and an UNSIGNED 8 bit input to exercise the promotion. The tail length is checked at compile time: three copies of the formula exist - the BSK_TAIL macro in the core, tail_len() in the generator and TailClocks() in the plugin - and the testbench refuses to build if they disagree. The status outputs are checked clock by clock against the contract above.
