IIR Chebyshev Type 2 - II Order
Second-order Chebyshev Type 2 IIR filter with flat passband and stopband ripple. Also known as inverse Chebyshev filter. Provides steeper roll-off than Butterworth.
Introduction
The IIR Chebyshev Type 2 - II Order block implements a second-order Chebyshev Type 2 (inverse Chebyshev) IIR filter operating in real time on FPGA. The component includes automatic filter coefficient calculation based on filter type (low/high pass), cutoff frequency, and stopband attenuation.
Unlike Chebyshev Type 1 filters, Type 2 filters have a flat passband and ripple in the stopband. This is preferred when passband flatness is more important than stopband flatness.

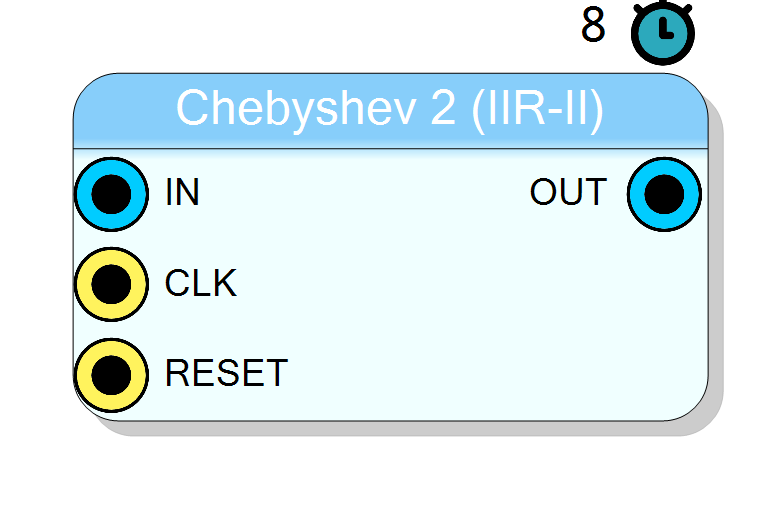

Pin Description
Properties
Select between low pass and high pass filter
Filter type selection. Available values: Low Pass, High Pass, default Low Pass.Default: Low Pass
Options: Low Pass High Pass
Set the filter pole/zero position according to the selected bandwidth in KHz
Cutoff frequency in kHz. Must be less than half the sampling frequency (Nyquist limit).Default: 1000
The minimum attenuation required in the stop band. Specified in decibels, as a positive number.
Stopband attenuation in dB. Minimum attenuation guaranteed in the stopband. Typical values: 20 to 60 dB.Default: 40
Select input data type
Input data format selection. Available values: Unsigned 16 bit, Signed 17 bit, default Unsigned 16 bit.Default: UINT16
Options: UINT16 INT17
Usage

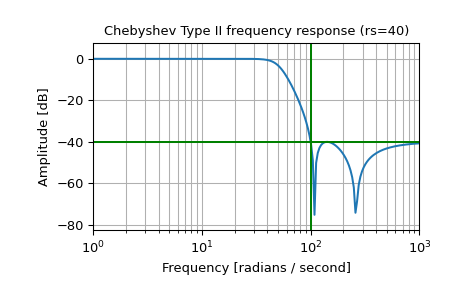

Chebyshev Type 2 Filter Characteristics
Chebyshev Type 2 filters (also called inverse Chebyshev) have complementary characteristics to Type 1:
- Flat Passband: No ripple in the passband
- Stopband Ripple: Controlled ripple in the stopband (specified as attenuation in dB)
- Steeper Roll-off: Sharper transition than Butterworth filters
- Smoother Response: Better passband behavior than Type 1
Comparison with Other Filters
| Filter Type | Passband | Stopband | Roll-off |
|---|---|---|---|
| Butterworth | Flat | Flat | Moderate |
| Chebyshev 1 | Ripple | Flat | Steep |
| Chebyshev 2 | Flat | Ripple | Steep |
| Elliptic | Ripple | Ripple | Steepest |
Scattered Lookahead Implementation
To enable real-time FPGA operation at full clock rate, the filter uses the Scattered Lookahead technique:

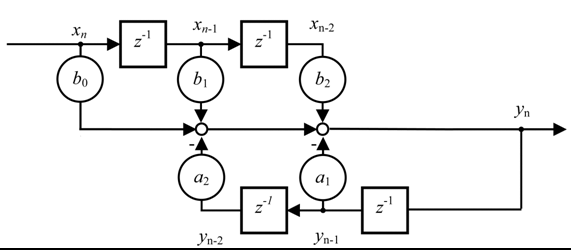

The standard IIR equation:
$$ y[n] = b_0 x[n] + b_1 x[n-1] + b_2 x[n-2] - a_1 y[n-1] - a_2 y[n-2] $$
Is transformed using scattered lookahead to:
$$ y[j] = \sum_{k=0}^{6} b’_k x[j-k] - a’_3 y[j-3] - a’_6 y[j-6] $$
Reference: A universal look-ahead algorithm for pipelining IIR filters
Coefficient Calculation
SciCompiler automatically calculates the filter coefficients. The following Python code provides a reference implementation:
python
import numpy as np
from scipy import signal
def scattered_lookahead_transform(a):
A = np.array([[a[0], 0, 0, 0, 0, ],
[a[1], a[0], 0, 0, 0, ],
[a[2], a[1], a[0], 0, 0, ],
[0, 0, a[2], a[1], a[0], ],
[0, 0, 0, a[2], a[1], ]])
A_inv = np.linalg.inv(A)
D = A_inv * [1, 0, 0, 0, 0]
D1 = D[:,0]
D = D[:,0].reshape(-1, 1)
R = np.array([[ 0, a[2], a[1], a[0], 0, ],
[0, 0, 0, 0, a[2]]])
Qw = np.dot(R, D)
an = [1, Qw[0][0], Qw[1][0]]
bn = D1
return bn, an
N = 2 # Order of the filter
fs = 250*1e6 # Sampling frequency
fc = 5*1e6 # Corner frequency
rs = 40 # Stopband attenuation in dB
Wn = fc/(fs/2)
b_z, a_z = signal.cheby2(N, rs, Wn, btype='low')
print("original", b_z, a_z)
bn, an = scattered_lookahead_transform(a_z)
bq = np.convolve(bn, b_z)
aq = an
print("scattered", bq, aq)
Typical Applications
- Signal filtering where passband flatness is critical
- Anti-aliasing filters requiring flat passband
- Applications tolerating stopband ripple for better passband response
Resources & Timing
- Latency: 8 clock cycles
