TM

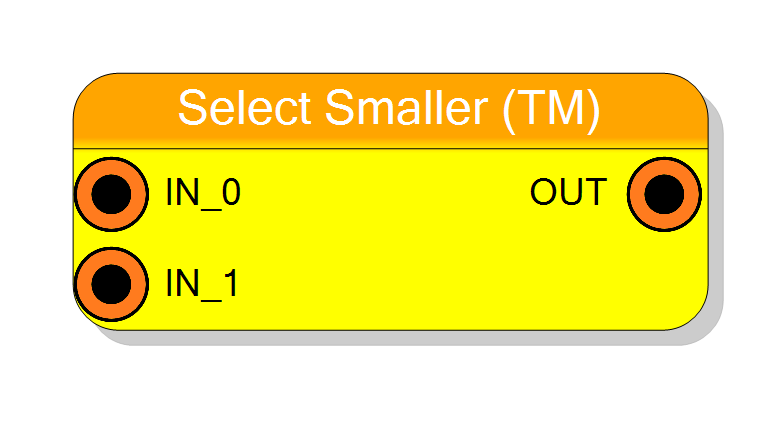

Block Preview

Introduction

Parallel minimum selection on TM data streams. See Select Smaller for details.

Pin Description

IN_0 Input Variable (TM) bit TM
First TM input. Width: Input Size × TM Factor.
Default: Must be connected
IN_1 Input Variable (TM) bit TM
Second TM input. Width: Input Size × TM Factor.
Default: Must be connected
OUT Output Variable (TM) bit TM
TM output (minimum values). Width: Input Size × TM Factor.

Properties

Property window

Input Sign Sign

Select if input is signed or unsigned

UNSIGNED or SIGNED.

Default: UNSIGNED

Options: UNSIGNED SIGNED

Input Size InputWordsize

Set the size in bit of inputs (per TM phase)

Bits per sample. Range: 2-16384.

Default: 16

Range: 2 – 16384

TM Factor TMFactor

Select the TM Factor

TM factor: 2, 4, 8, 16, or 32.

Default: 4

Options: 2 4 8 16 32

IN1 Mode IN1_Mode

Select if IN1 is Time-Multiplexed or a single STD signal

Default: TM

Options: TM STD

Usage

Replicates Select Smaller N times (N = TM Factor). Zero latency combinational logic.
