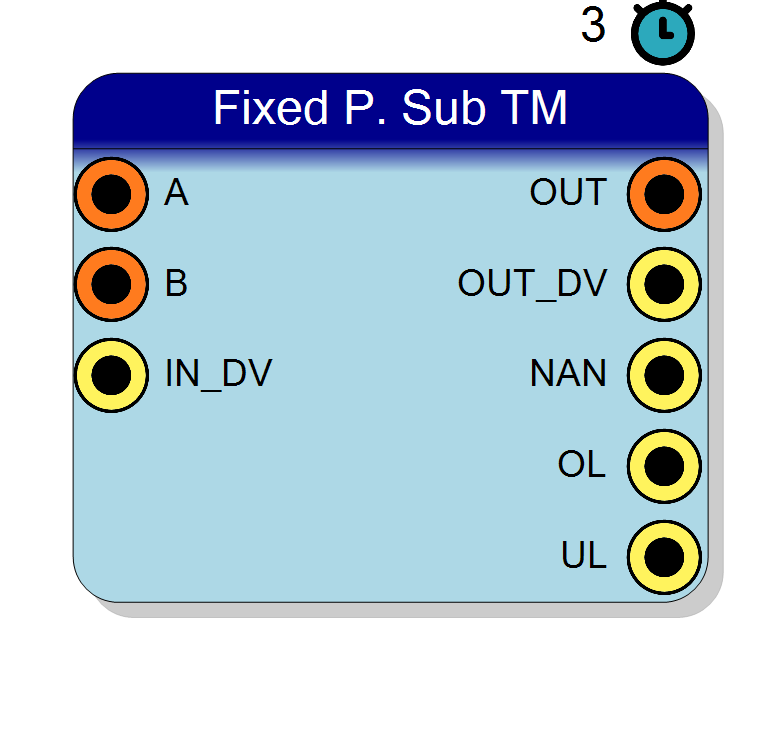

Block Preview

Introduction

The block computes, in fixed-point arithmetic, $$ \mathrm{OUT} = A - B $$ This is the time-multiplexed variant: the A port carries TM samples packed side by side in one wide vector, and the same operation is applied to every slot in the same clock cycle. The scalar variant fixedp_sub is identical apart from the packing.

Operand B can either be time-multiplexed as well (slot by slot operation) or a single scalar broadcast to every slot, selected by the B_IsTM property.

Every operand and every result carries its own Q format: the number of integer bits, the number of fractional bits and the sign are chosen independently. The binary point is tracked through the whole datapath, so operands with different scaling are aligned automatically – no manual shifting is required, which is the main practical difference with respect to the integer-only arithmetic blocks.

Pin Description

A Input Variable bit TM
Time-multiplexed input operand. Width: (A Integer Bits + A Fractional Bits) x TM Factor.
Default: Must be connected
B Input Variable bit TM
Second operand. When B_IsTM = YES the width is (B Integer Bits + B Fractional Bits) x TM Factor and the operation is applied slot by slot; when NO the port is a single sample broadcast to every slot.
Default: Must be connected
IN_DV Input 1 bit BIT
Input data valid, active high. Tie to ‘1’ for free running operation.
OUT Output 17 bit TM
Result, format Q(OUT Integer Bits . OUT Fractional Bits). Width: (OUT Integer Bits + OUT Fractional Bits) x TM Factor, packed like the inputs.
OUT_DV Output 1 bit BIT
Output data valid, asserted when the result is available.
NAN Output 1 bit BIT
Result undefined, asserted together with OUT_DV for the sample it qualifies. No operand makes this operation undefined, so this pin stays low here; it exists because every Fixed P. block presents the same status interface. NAN suppresses OL and UL. One bit for the whole TM word: the flag is the OR across the slots.
OL Output 1 bit BIT
Overflow: the true result left the OUT format and was saturated - wrapped instead, when Enable Saturation is NO. Asserted together with OUT_DV, mutually exclusive with UL, and suppressed by NAN. One bit for the whole TM word: the flag is the OR across the slots.
UL Output 1 bit BIT
Underflow: the true result was NOT zero but requantised to zero in the OUT format, i.e. the whole value was lost. Asserted together with OUT_DV, mutually exclusive with OL, and suppressed by NAN. One bit for the whole TM word: the flag is the OR across the slots.
CLK
Processing clock, connected to the acquisition clock.
RESET
Global synchronous reset, active high.

Properties

Property window

A Integer Bits A_BitsInt

Number of INTEGER bits of A (the sign, when present, uses one of them).

Number of INTEGER bits of the operand A (1 to 64). When the port is SIGNED one of these bits carries the sign.

Default: 16

Options: 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64

A Fractional Bits A_BitsFract

Number of FRACTIONAL bits of A, i.e. how many bits sit to the right of the binary point. Total width = integer + fractional bits.

Number of FRACTIONAL bits of the operand A (0 to 64), i.e. the bits to the right of the binary point. Total port width = integer + fractional bits.

Default: 0

Options: 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64

A Sign A_Sign

Select whether A is a signed (two’s complement) or unsigned quantity.

Arithmetic type of A:

  • SIGNED – two’s complement, range $[-2^{N_{int}-1}, 2^{N_{int}-1})$
  • UNSIGNED – non negative only, range $[0, 2^{N_{int}})$

Default: SIGNED

Options: UNSIGNED SIGNED

B Integer Bits B_BitsInt

Number of INTEGER bits of B (the sign, when present, uses one of them).

Number of INTEGER bits of the operand B (1 to 64). When the port is SIGNED one of these bits carries the sign.

Default: 16

Options: 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64

B Fractional Bits B_BitsFract

Number of FRACTIONAL bits of B, i.e. how many bits sit to the right of the binary point. Total width = integer + fractional bits.

Number of FRACTIONAL bits of the operand B (0 to 64), i.e. the bits to the right of the binary point. Total port width = integer + fractional bits.

Default: 0

Options: 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64

B Sign B_Sign

Select whether B is a signed (two’s complement) or unsigned quantity.

Arithmetic type of B:

  • SIGNED – two’s complement, range $[-2^{N_{int}-1}, 2^{N_{int}-1})$
  • UNSIGNED – non negative only, range $[0, 2^{N_{int}})$

Default: SIGNED

Options: UNSIGNED SIGNED

B is TM B_IsTM

YES: operand B is time multiplexed like A. NO: it is a single scalar value broadcast to every TM slot.

  • YES – operand B is time-multiplexed and is consumed slot by slot
  • NO – operand B is a single scalar broadcast to every TM slot

Default: YES

Options: NO YES

OUT Integer Bits OUT_BitsInt

Number of INTEGER bits of OUT (the sign, when present, uses one of them).

Number of INTEGER bits of the result OUT (1 to 64). When the port is SIGNED one of these bits carries the sign.

Default: 17

Options: 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64

OUT Fractional Bits OUT_BitsFract

Number of FRACTIONAL bits of OUT, i.e. how many bits sit to the right of the binary point. Total width = integer + fractional bits.

Number of FRACTIONAL bits of the result OUT (0 to 64), i.e. the bits to the right of the binary point. Total port width = integer + fractional bits.

Default: 0

Options: 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64

OUT Sign OUT_Sign

Select whether OUT is a signed (two’s complement) or unsigned quantity.

Arithmetic type of OUT:

  • SIGNED – two’s complement, range $[-2^{N_{int}-1}, 2^{N_{int}-1})$
  • UNSIGNED – non negative only, range $[0, 2^{N_{int}})$

Default: SIGNED

Options: UNSIGNED SIGNED

TM Factor TimeMultiplexing

Time multiplexing factor

Time multiplexing factor: 4, 8, 16 or 32 samples packed per port. One operator instance is generated per slot.

Default: 4

Options: 4 8 16 32

Rounding Rounding

ROUND: round to nearest when discarding fractional bits. TRUNCATE: drop them (cheaper, adds a DC bias).

  • ROUND – round to nearest when discarding fractional bits
  • TRUNCATE – discard them (cheaper, introduces a negative bias)

Default: ROUND

Options: TRUNCATE ROUND

Saturation EnableSaturation

YES: clip to the largest representable output value on overflow. NO: wrap around (cheaper, but overflow changes sign).

  • YES – clip to the largest representable output value on overflow
  • NO – wrap around modulo the output width

Default: YES

Options: NO YES

Status Flags StatusFlags

YES: the block exposes three extra 1-bit outputs, valid together with OUT_DV – NAN (the result is mathematically undefined for the operands presented, or the operand had to be clamped into the convergence domain of the algorithm), OL (overflow: the true result left the output format and was saturated), and UL (underflow: the true result was not zero but requantized to zero). NO: the pins are not generated and the logic that produces them is not synthesised.

Default: YES

Options: NO YES

Pipeline Length PipelineLength

Fixed latency of the block, in clock cycles. More stages ease timing closure. Ignored in SERIAL mode, where the latency is set by the iteration count.

Fixed latency of the block in clock cycles (1 to 8). Higher values ease timing closure without changing the numerical result.

Default: 3

Options: 1 2 3 4 5 6 7 8

Functional description

$$ \mathrm{OUT} = A - B $$

where

  • A – input operand, format $Q_{A_BitsInt.A_BitsFract}$
  • B – input operand, format $Q_{B_BitsInt.B_BitsFract}$
  • OUT – result, format $Q_{OUT_BitsInt.OUT_BitsFract}$

Fixed-point format

A value with $N_{int}$ integer bits and $N_{frac}$ fractional bits is stored on $N_{int} + N_{frac}$ bits and represents

$$ \text{value} = \frac{\text{raw integer}}{2^{N_{frac}}} $$

When the operand is SIGNED, one of the integer bits carries the sign (two’s complement). Each port is configured independently, so it is perfectly legal to feed a $Q_{16.0}$ signal and a $Q_{2.14}$ coefficient into the same block.

Implementation

Fixed-point subtraction after alignment. The result is signed in general: keep the output SIGNED unless A is guaranteed to be greater than or equal to B.

Rounding and overflow

Two properties control how the internal full precision result is reduced to the output format:

  • Rounding – ROUND rounds to nearest when fractional bits are discarded, TRUNCATE simply drops them. Truncation is cheaper but introduces a systematic negative bias, which accumulates in a long processing chain.
  • Saturation – YES clips to the largest representable value, NO wraps around. Wrapping turns a small overflow into a full-scale sign flip, so saturation is strongly recommended for signal processing.

Time multiplexing

The wide ports carry TM samples packed from the least significant bits up:

    bits [W-1 : 0]      -> slot 0
  bits [2W-1 : W]     -> slot 1
  ...
  bits [TM*W-1 : (TM-1)*W] -> slot TM-1

where W is the width of a single sample. One operator instance is generated per slot, so the resource usage scales with the TM factor while the throughput stays one full set of samples per clock.

Latency

The PipelineLength property fixes the latency of the block in clock cycles (1 to 8). Raising it helps timing closure at high clock rates and does not change the numerical result. The symbol reports the configured latency.

Typical use cases

  • Baseline or pedestal removal
  • Computing a difference between two channels
  • Error signal generation in a control loop
