Citiroc Frame Transfer

Event collector and PC readout endpoint for the four CITIROC 1A ASICs of the DT5550W-Citiroc1A board. It polls the four Citiroc Analog blocks round-robin, packs each event into a fixed 38-word 32-bit packet with a sync header, timestamps, an event counter and a trailer, and pushes it into a dual-clock FIFO that the host drains through a memory-mapped endpoint. It also generates the C and Python decoder for that packet format.

Introduction

Principle of Operation

Each Citiroc Analog block produces, once per event, a 1024-bit packed frame plus a 32-bit run timestamp and a 64-bit global timestamp, and raises a level DV that it holds until it is acknowledged. This block is the other half of that handshake for all four ASICs at once.

A single state machine cycles A → B → C → D → A …, one ASIC per clock cycle. When it finds a DV_x asserted for an unmasked ASIC it:

latches the whole event — header, timestamps, counter, 32 channel words, trailer — into a 1216-bit register in one clock cycle;
pulses ACK_x so the analog block can release its DV and start accepting the next trigger;
shifts the 38 words out of that register into the FIFO, one word per clock.

The FIFO is an xpm_fifo_async with independent write and read clocks, sized by the Samples property. The host reads it through the standard FIFO endpoint, and the generated CitirocFRAME_<name>_RECONSTRUCT_DATA function turns the raw 32-bit word stream back into per-channel charges.

The packet format is the real contract between firmware and software, so it is documented in full below — it is what you need if you write your own decoder.

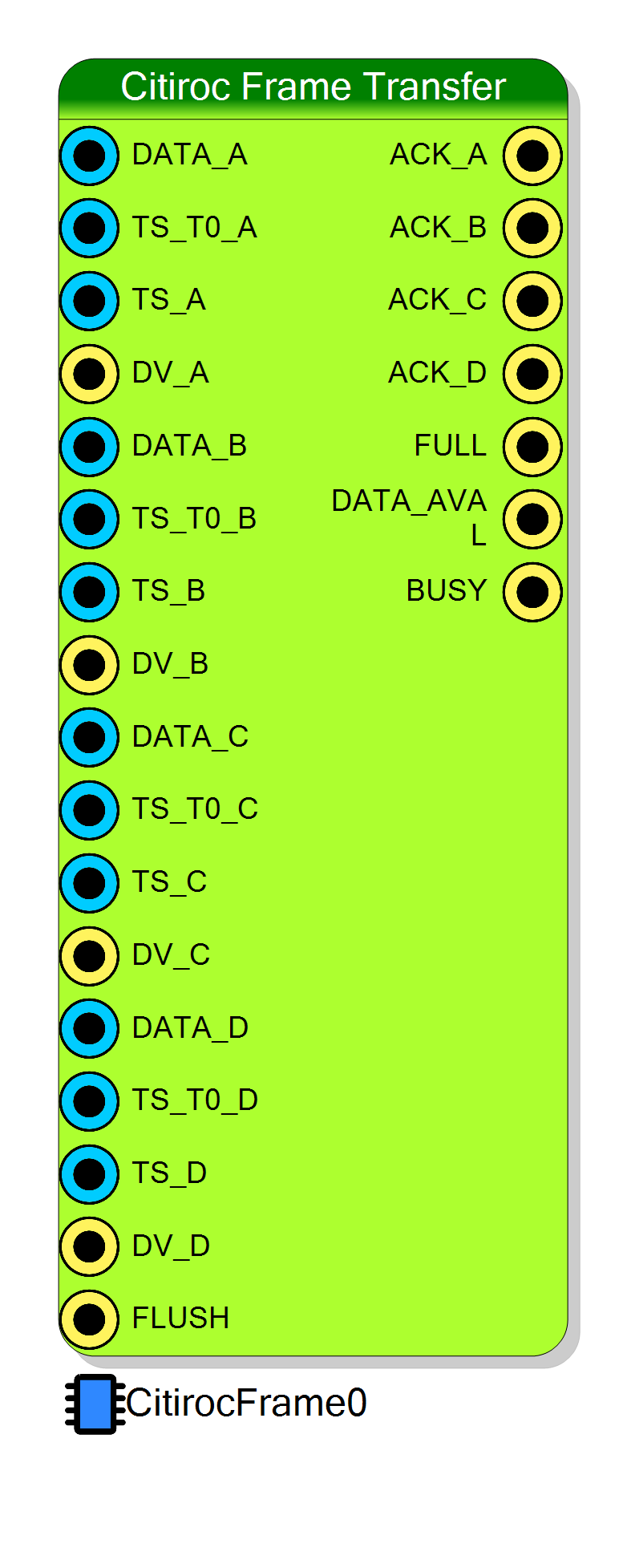

Pin Description

DATA_A Input 1024 bit BIT VECTOR

TS_T0_A Input 32 bit BIT VECTOR

TS_A Input 64 bit BIT VECTOR

DV_A Input 1 bit BIT

DATA_B Input 1024 bit BIT VECTOR

TS_T0_B Input 32 bit BIT VECTOR

TS_B Input 64 bit BIT VECTOR

DV_B Input 1 bit BIT

DATA_C Input 1024 bit BIT VECTOR

TS_T0_C Input 32 bit BIT VECTOR

TS_C Input 64 bit BIT VECTOR

DV_C Input 1 bit BIT

DATA_D Input 1024 bit BIT VECTOR

TS_T0_D Input 32 bit BIT VECTOR

TS_D Input 64 bit BIT VECTOR

DV_D Input 1 bit BIT

FLUSH Input 1 bit BIT

Flush / reset – asynchronous, ORed with CONTROL[8]. While high it resets the arbiter, clears the event counter and flushes the FIFO. If left unconnected the compiler ties it to the board’s FIFO_RESET net, so the block is flushed by the global FIFO reset.

Default: FIFO_RESET

ACK_A Output 1 bit BIT

ACK_B Output 1 bit BIT

ACK_C Output 1 bit BIT

ACK_D Output 1 bit BIT

FULL Output 1 bit BIT

FIFO almost full – the XPM prog_full flag, asserted one full packet (38 words) before the real full. While it is high, incoming events are acknowledged but discarded. Use it to throttle the trigger.

DATA_AVAL Output 1 bit BIT

Data available – inverse of the XPM prog_empty flag, so it rises only when more than one complete packet is buffered. It is the same bit the host reads as STATUS[0].

BUSY Output 1 bit BIT

Busy – high only while the 38 words of a latched event are being written into the FIFO (38 consecutive clock cycles). It does not indicate FIFO fullness.

DATA_A, DATA_B, DATA_C, DATA_D Input 1024 bit

Packed event frame from the Citiroc Analog block of the corresponding ASIC. 32 channel words of 32 bits, channel 0 in the most significant word. Copied verbatim into words 5…36 of the packet, so its bit layout is the packet’s channel layout — but note the words are serialised LSW-first, so packet word 5 is ASIC channel 31.

TS_T0_A, TS_T0_B, TS_T0_C, TS_T0_D Input 32 bit

Run timestamp of the event, from the TS0_OUT pin of the matching Citiroc Analog block. Becomes word 1 of the packet and is decoded as Time_Code.

TS_A, TS_B, TS_C, TS_D Input 64 bit

Global 64-bit timestamp of the event, from the TS_OUT pin of the matching Citiroc Analog block. Split into words 2 (low) and 3 (high) and decoded as RunTime_Code.

DV_A, DV_B, DV_C, DV_D Input 1 bit

Event request – level signal from the analog block’s P_FRAME_DV. Sampled when the round-robin arbiter reaches that ASIC’s slot; must stay high until the matching ACK is returned. Masked ASICs (CONTROL[0..3] = 1) are never sampled.

ACK_A, ACK_B, ACK_C, ACK_D Output 1 bit

Event acknowledge – one-cycle pulse telling the analog block its frame has been latched. Wire it to the analog block’s P_FRAME_ACK. It is pulsed even when the FIFO was too full to actually store the event.

Properties

Property window

Name EndpointName

Set the name of the endpoint

Name of the memory-mapped FIFO endpoint, and the name embedded in every generated symbol: the registers become SCI_REG_<name>_CONTROL / _STATUS / _FIFOADDRESS, and the API functions become CitirocFRAME_<name>_START, _RESET, _GetStatus, _DOWNLOAD, _RECONSTRUCT_DATA (plus _GET_STATUS and _GET_DATA in Python). Changing it rebuilds the symbol.

Default: CitirocFrame0

Default: CitirocFrame0

Number of samples per channel Samples

Set the number of samples stored for each acquisition

Depth of the readout FIFO, in 32-bit words (not in samples per channel, despite the caption). It is passed straight to the memLength generic and becomes the XPM FIFO_WRITE_DEPTH. Capacity in events is Samples / 38.

Value	Events buffered	Usable?
1024	26	yes
4096	107	yes
8192	215	yes
16384	431	yes
32768	862	yes
65536	1724	yes — the largest depth whose word-count field still fits in `STATUS`
131072	3449	no — the `STATUS` word-count slice runs past bit 31
262144	6898	no — same problem

Default: 8192

Default: 8192

Options: 1024 4096 8192 16384 32768 65536 131072 262144

⚙️ Detailed Operation

Packet layout — 38 words of 32 bits

This is the authoritative layout, cross-checked between CitirocFrameTransfer.vhd, the generated C decoder and the generated Python decoder.

Word	Content	Decoder field
0	`0x8000000n` — sync header, `n` = ASIC index (`A`=0, `B`=1, `C`=2, `D`=3)	`AsicID`
1	`TS_T0_x` — 32-bit run timestamp	`Time_Code`
2	`TS_x[31:0]` — global timestamp, low half	`RunTime_Code` (low)
3	`TS_x[63:32]` — global timestamp, high half	`RunTime_Code` (high)
4	event counter of this block, free running	`Pack_Id`
5	ASIC channel 31 data word	`ChargeHg[0]`, `ChargeLg[0]`, `Hit[0]`
6	ASIC channel 30 data word	`…[1]`
…	…	…
36	ASIC channel 0 data word	`ChargeHg[31]`, `ChargeLg[31]`, `Hit[31]`
37	`0xC0000000` — trailer	—

warning

**The 32 channel words are in reverse channel order.** The analog block packs channel 0 into the most significant word of its 1024-bit bus, and this block shifts that bus into the FIFO starting from the *least* significant word, so the first channel word on the wire is ASIC channel 31. The generated decoder fills its arrays in arrival order, which makes decoder index `i` correspond to **ASIC channel `31 − i`**. Reverse the arrays on the host, or the channel map of your detector will be mirrored.

Each channel data word:

Bits	Field	Width
31:29	reserved, always `000`	3
28	`Hit` — channel discriminator	1
27:14	`ChargeLg` — low-gain charge	14
13:0	`ChargeHg` — high-gain charge	14

Note the naming: the 32-bit TS_T0 becomes Time_Code and the 64-bit global timestamp becomes RunTime_Code in the decoded structure — the opposite of what the names suggest.

Resynchronisation rules used by the decoder

The generated decoder is a 7-state machine over the raw word stream:

stateDiagram-v2
  [*] --> HUNT
  HUNT --> TS_T0 : word>>4 == 0x8000000
  HUNT --> HUNT  : otherwise (discard)
  TS_T0 --> TS_LO
  TS_LO --> TS_HI
  TS_HI --> PACKID
  PACKID --> DATA
  DATA --> DATA : 32 channel words
  DATA --> TRAIL : after the 32nd
  TRAIL --> HUNT : word & 0xC0000000 == 0xC0000000 -> emit packet
  TRAIL --> HUNT : otherwise -> discard packet

Two consequences worth knowing:

A packet is emitted only if the trailer check passes. A truncated or corrupted packet is silently dropped and the decoder resynchronises on the next header.
The header test is word >> 4 == 0x8000000, so any of 0x80000000…0x8000000F is a valid header. The low nibble is the ASIC index.

Round-robin arbiter and event loss

The poll slot advances every clock, unconditionally, whether or not an event was found. A DV_x is therefore serviced within at most 4 clock cycles.
BUSY is high only while the 38 words are being written into the FIFO.
The whole event is latched in one cycle, so the analog block may drop DV as soon as it sees ACK without any risk of tearing.

warning

**Events are dropped silently when the FIFO is nearly full.** In the arbiter, `ACK_x` is pulsed and the event counter is incremented *outside* the `RDO_FIFO_FREE` test — only the transition into the write state is conditional. So when `prog_full` is asserted the analog block is told "taken", the counter advances, and the event is never written. The loss is not reported on any pin. It **is** detectable on the host: word 4 (`Pack_Id`) counts every acknowledged event, so a gap in `Pack_Id` between consecutive received packets is exactly the number of lost events. Monitor `FULL` and check `Pack_Id` continuity.

FIFO thresholds

With memLength = Samples and MaxPacketSize = 38:

XPM parameter	Value	Effect
`FIFO_WRITE_DEPTH`	`Samples`	total depth in 32-bit words
`PROG_FULL_THRESH`	`Samples − 38`	drives `FULL` / `FIFO_FULL`, one packet of headroom
`PROG_EMPTY_THRESH`	`38`	drives `DATA_AVAL` and `STATUS[0]`
`READ_MODE`	`"std"`, latency 1	standard (non-FWFT) read
`CDC_SYNC_STAGES`	2	write and read clocks are independent

So DATA_AVAL (and the software “data available” bit) only rises once more than one full packet is buffered — the host is never woken up for a partial packet. Capacity in events is Samples / 38: 215 packets at the default 8192.

warning

**Do not use `Samples = 131072` or `262144` with this block.** The FIFO word count is wired to `STATUS_REG(16 + rBits − 1 downto 16)` where `rBits = ceil(log2(Samples))`. For 65536 (`rBits = 16`) the slice ends exactly at bit 31; for 131072 and 262144 it would run to bit 32 or 33, past the top of the 32-bit status register. The V2 block moved the field down to bit 8 precisely to make the larger depths usable.

Control and status registers

CompileMMC declares one FIFO-read endpoint named after the EndpointName property, with two auto-registers.

CONTROL (write)

Bit	Function
0	Mask ASIC A — `1` = ignore `DV_A`, its events are never collected
1	Mask ASIC B
2	Mask ASIC C
3	Mask ASIC D
8	Reset / flush — holds the arbiter and the FIFO in reset and clears the event counter

Note the polarity: a mask bit set disables that ASIC. Writing 0 therefore enables all four and releases the reset, which is exactly what the generated _START function does.

STATUS (read)

Bits	Function
0	Data available (`1` = more than one packet buffered)
16 + `rBits` − 1 : 16	Words currently in the FIFO

The FLUSH pin is ORed with CONTROL[8]: both reset the arbiter and flush the FIFO.

Generated software API

The C library gets five functions, named after the endpoint (CitirocFrame0 by default):

Function	What it does
`CitirocFRAME_<name>_START(handle)`	writes `0` to `CONTROL` — releases the reset and unmasks all four ASICs
`CitirocFRAME_<name>_RESET(handle)`	writes `0x100` to `CONTROL` — asserts the flush and holds it
`CitirocFRAME_<name>_GetStatus(&is_data_available, &word_available, handle)`	reads `STATUS`; `is_data_available = STATUS & 1`, `word_available = (STATUS >> 16) & 0xFFFF`
`CitirocFRAME_<name>_DOWNLOAD(val, size, timeout, handle, &read_data, &valid_data)`	bulk FIFO read; `val` must be preallocated to `size + 16` words
`CitirocFRAME_<name>_RECONSTRUCT_DATA(buffer_handle, &decoded_packets)`	runs the state machine above over a circular buffer and fills a `t_ASIC_packet_collection`

RESET only asserts the flush — it does not release it. A RESET must always be followed by a START before data can flow.

The decoded structure carries, per packet: AsicID, Time_Code, RunTime_Code, Pack_Id, and three 32-element arrays Hit[], ChargeHg[], ChargeLg[]. Release it with free_CitirocFRAME_packet_collection.

C usage

  uint32_t data_frame[100000];
uint32_t read_data_frame, valid_data_frame, valid_data_enqueued;
t_ASIC_packet_collection decoded_packets;
void *BufferDownloadHandler = NULL;

Utility_ALLOCATE_DOWNLOAD_BUFFER(&BufferDownloadHandler, 1024 * 1024);

Citiroc_ALLFIFO_FLUSH(&handle);
CitirocFRAME_CitirocFrame0_START(&handle);

while (1) {
    uint32_t is_data_available = 0, word_available = 0;
    CitirocFRAME_CitirocFrame0_GetStatus(&is_data_available, &word_available, &handle);
    if (!is_data_available) continue;

    /* ask for whole packets: 38 words each */
    CitirocFRAME_CitirocFrame0_DOWNLOAD(data_frame, N_Packet * 38, 1000,
                                        &handle, &read_data_frame, &valid_data_frame);

    Utility_ENQUEUE_DATA_IN_DOWNLOAD_BUFFER(BufferDownloadHandler, data_frame,
                                            valid_data_frame, &valid_data_enqueued);
    CitirocFRAME_CitirocFrame0_RECONSTRUCT_DATA(BufferDownloadHandler, &decoded_packets);

    for (int p = 0; p < decoded_packets.valid_packets; p++) {
        printf("ASIC %u  pack %u  t0 %u\n",
               decoded_packets.packets[p].AsicID,
               decoded_packets.packets[p].Pack_Id,
               decoded_packets.packets[p].Time_Code);
        for (int i = 0; i < 32; i++) {
            int ch = 31 - i;          /* arrival order is reversed, see above */
            printf("  ch%2d hit=%u hg=%5u lg=%5u\n", ch,
                   decoded_packets.packets[p].Hit[i],
                   decoded_packets.packets[p].ChargeHg[i],
                   decoded_packets.packets[p].ChargeLg[i]);
        }
    }
    free_CitirocFRAME_packet_collection(&decoded_packets);
}

Python usage

python

  while True:
    [err, data, read_data, valid_data] = CitirocFRAME_CitirocFrame0_GET_DATA(16, 1000, handle)
    if valid_data > 0:
        [AsicId, Time_Code, RunTime_Code, Pack_Id,
         ChargeHg, ChargeLg, Hit] = CitirocFRAME_CitirocFrame0_RECONSTRUCT_DATA(data, valid_data)
        for i in range(len(Pack_Id)):
            print(Pack_Id[i], Time_Code[i], ChargeHg[i])

..._GET_DATA(n_packet, timeout_ms, handle) sizes its request as n_packet * 38 words, which is the correct packet size for this block.

warning

Known defects in the **generated** decoders — check them before trusting `AsicID`: * In the **C** decoder, `packets[k].AsicID = mpe & 0xf;` sits inside the branch taken when the header check *fails*, not the one where it succeeds. The ASIC index of a successfully decoded packet is therefore never written from its own header. * In the **Python** decoder the same field is extracted as `mpe & 0x4`, a single-bit mask, instead of `mpe & 0xf`. It cannot distinguish ASIC A from B. * Both shipped examples print a field named `Charge[]`, which the decoders do not produce — the real fields are `ChargeHg[]` and `ChargeLg[]`. * The C decoder's internal `PacketSize` is `n_ch + 5 = 37`, one short of the real 38. It is used only as the minimum-bytes-available guard, so decoding stays correct, but a download sized with the same expression returns slightly less than the requested number of complete packets. The charges, hits, timestamps and `Pack_Id` are decoded correctly; only the ASIC identification is affected. Re-derive it yourself from `word0 & 0xF` if you need it.

Typical wiring

   Citiroc Analog (A) ─DATA_A/TS_A/TS_T0_A/DV_A─►┌──────────────────┐
                    ◄────────────── ACK_A ─────│                  │
 Citiroc Analog (B) ──────────────────────────►│  Citiroc Frame   │──► FIFO endpoint ──► PC
 Citiroc Analog (C) ──────────────────────────►│    Transfer      │
 Citiroc Analog (D) ──────────────────────────►│                  │──► FULL / DATA_AVAL / BUSY
                                  FLUSH ──────►└──────────────────┘

Unused ASIC ports may be left unconnected — just mask them with CONTROL[0..3] so the arbiter never latches an undriven DV.

Resources & Timing

Latency: Up to 4 clock cycles from DV_x to ACK_x (round-robin poll), then 38 clock cycles to write the packet into the FIFO
Throughput: One 38-word packet per 38 write clocks, shared by the four ASICs

Emits pcores/CitirocFrameTransfer.vhd (entity CitirocFrameTransfer) from the plain CitirocFrameTransfer.vhd resource — not the _NEW variant, which belongs to the V2 block.
xpm_fifo_async with independent write (CLK) and read (READ_CLK) clocks; the compiler currently binds both to the project global clock.
One event = 38 words = 152 bytes on the wire.
_RESET asserts the flush and leaves it asserted; always follow it with _START.
Supported board: DT5550W-Citiroc1A (97567308-DA16-4E48-BB5E-ACE3E84DF06D). Not available inside subpages or state machines.
