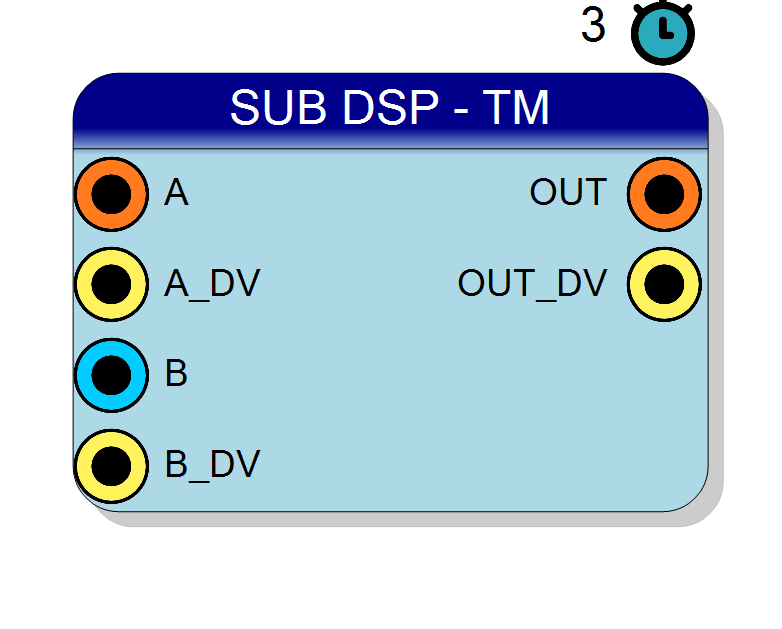

Block Preview

Introduction

The block performs time-multiplexed subtraction across multiple data streams. On every rising edge of CLK, when A_DV = 1 and B_DV = 1, the subtractor computes

$$ \mathrm{OUT}_i(n) = \mathrm{A}_i(n) - \mathrm{B}_i(n), \quad i = 0, \ldots, \text{TM}-1, $$

where each subscript $i$ represents a different TM phase, and TM is the time-multiplexing factor (4, 8, 16, or 32).

Input A is always time-multiplexed. Input B can be either time-multiplexed (performing phase-by-phase subtraction) or scalar (subtracting a single value from all A phases).

The component leverages DSP48 slices for efficient hardware implementation with configurable pipeline stages (1-8) for optimal timing closure at high clock frequencies.

Pin Description

A Input Variable bit TM
Time-multiplexed input A (minuend, always TM). Width: (A Integer Bits + A Fractional Bits) × TM Factor. Contains TM phases packed sequentially: [A0, A1, …, A(TM-1)]. Each phase is the value being subtracted from.
Default: Must be connected
A_DV Input 1 bit BIT
Data Valid for input A, active high. When high, input A contains valid data to be processed. Can be tied to ‘1’ for continuous streaming.
B Input Variable bit BIT VECTOR
Input B (subtrahend), can be time-multiplexed or scalar. If B is TM = YES: Width: (B Integer Bits + B Fractional Bits) × TM Factor Contains TM phases: [B0, B1, …, B(TM-1)] If B is TM = NO: Width: B Integer Bits + B Fractional Bits Single value subtracted from all A phases
Default: Must be connected
B_DV Input 1 bit BIT
Data Valid for input B, active high. When high, input B contains valid data to be processed. Can be tied to ‘1’ for continuous streaming.
OUT Output 18 bit TM
Time-multiplexed output (always TM). Width: (OUT Integer Bits + OUT Fractional Bits) × TM Factor. Contains result phases: [OUT0, OUT1, …, OUT(TM-1)]. Valid when OUT_DV = 1.
OUT_DV Output 1 bit BIT
Data Valid output, active high. Indicates when OUT contains valid subtraction results. Asserts after Pipeline Length × TM clock cycles from input valid.
CLK
Global clock. Each rising edge processes one TM phase through the pipeline. Connected to system acquisition clock.
RESET
Synchronous reset, active high. Clears all pipeline registers and internal state.

Properties

Property window

A Integer Bits A_BitsInt

Number of integer bits for input A

Number of integer bits for input A. Range: 1-64. Default: 8. Determines the integer range of input A values.

Default: 8

Options: 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64

A Fractional Bits A_BitsFract

Number of fractional bits for input A

Number of fractional bits for input A. Range: 0-64. Default: 8. Determines the fractional precision of input A.

Default: 8

Options: 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64

A Sign A_Sign

Select if input A is signed or unsigned

Arithmetic type for input A:

  • UNSIGNED → Range: [0, 2^(total_bits) - 1]
  • SIGNED → Range: [-2^(total_bits-1), 2^(total_bits-1) - 1] Default: SIGNED

Default: SIGNED

Options: UNSIGNED SIGNED

B Integer Bits B_BitsInt

Number of integer bits for input B

Number of integer bits for input B. Range: 1-64. Default: 8.

Default: 8

Options: 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64

B Fractional Bits B_BitsFract

Number of fractional bits for input B

Number of fractional bits for input B. Range: 0-64. Default: 8.

Default: 8

Options: 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64

B Sign B_Sign

Select if input B is signed or unsigned

Arithmetic type for input B:

  • UNSIGNED → Non-negative values only
  • SIGNED → Two’s complement representation Default: SIGNED

Default: SIGNED

Options: UNSIGNED SIGNED

B is TM B_IsTM

Select if input B is Time Multiplexed or scalar

Determines if input B is time-multiplexed:

  • NO → B is scalar, subtracted from all TM phases
  • YES → B is TM, phase-by-phase subtraction with A Default: NO

Default: NO

Options: NO YES

OUT Integer Bits Out_BitsInt

Number of integer bits for output

Number of integer bits for output. Range: 1-64. Default: 10 (provides headroom for signed arithmetic).

Default: 10

Options: 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64

OUT Fractional Bits Out_BitsFract

Number of fractional bits for output

Number of fractional bits for output. Range: 0-64. Default: 8. Typically set to max(A_BitsFract, B_BitsFract) to preserve precision.

Default: 8

Options: 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64

OUT Sign Out_Sign

Select if output is signed or unsigned

Arithmetic type for output:

  • UNSIGNED → Output range [0, 2^N - 1]
  • SIGNED → Output range [-2^(N-1), 2^(N-1) - 1] Default: SIGNED

Default: SIGNED

Options: UNSIGNED SIGNED

TM Factor TimeMultiplexing

Time Multiplexing factor

Time multiplexing factor (number of parallel phases). Values: 4, 8, 16, 32. Default: 4. Determines how many independent data streams are processed.

Default: 4

Options: 4 8 16 32

Pipeline Length PipelineLength

Number of pipeline stages (1-8)

Number of pipeline stages in the subtractor datapath. Range: 1-8. Default: 3. Higher values increase Fmax at the cost of latency. Total latency = PipelineLength × TM clock cycles.

Default: 3

Options: 1 2 3 4 5 6 7 8

Enable Saturation EnableSaturation

Enable output saturation (otherwise overflow)

Controls overflow/underflow behavior:

  • YES → Saturate at maximum/minimum representable value
  • NO → Wrap-around (modulo 2^N arithmetic) Default: YES.

Saturation is recommended for signal processing to prevent large errors.

Default: YES

Options: NO YES

Functional description

The component implements a time-multiplexed subtractor supporting independent fixed-point formats for each input:

$$ \text{OUT}[i] = A[i] - B \quad \text{or} \quad \text{OUT}[i] = A[i] - B[i], $$

where:

  • A[i] → input A, phase $i$ (always TM)
  • B or B[i] → input B, scalar or TM phase $i$
  • OUT[i] → output, phase $i$ (always TM)

Each input has independently configurable:

  • Integer bits (1-64)
  • Fractional bits (0-64)
  • Sign mode (SIGNED/UNSIGNED)

The output format is also independently configurable.

Time Multiplexing

Time multiplexing allows processing multiple data streams through a single hardware operator by cycling through different phases on consecutive clock cycles:

Clock cycle Processing phase
0 Phase 0 → OUT[0] = A[0] - B[0]
1 Phase 1 → OUT[1] = A[1] - B[1]
… …
TM-1 Phase TM-1 → OUT[TM-1] = A[TM-1] - B[TM-1]
TM Phase 0 (next cycle)

Scalar Broadcast Mode

When B is TM = NO, input B is broadcast to all TM phases:

  OUT[0] = A[0] - B
OUT[1] = A[1] - B
...
OUT[TM-1] = A[TM-1] - B

This is useful for removing DC offset or bias from all channels.

Overflow Handling

The Enable Saturation property controls overflow behavior:

  • YES → Output saturates at maximum/minimum representable value
  • NO → Output wraps around (modulo arithmetic)

For subtraction, underflow can occur when subtracting a large positive value, especially with unsigned arithmetic.

Mathematical background

In fixed-point arithmetic:

$$ \text{value} = \frac{\text{integer representation}}{2^{N_{\text{frac}}}} $$

For subtraction with different fractional widths, values are aligned to a common fractional point before subtraction, then scaled to the output format.

Pipeline and Timing

The Pipeline Length property (1-8 stages) controls latency versus maximum clock frequency:

Pipeline Length Latency (clock cycles) Typical Fmax improvement
1 TM × 1 Baseline
2 TM × 2 +20%
3 TM × 3 +35%
4 TM × 4 +45%
8 TM × 8 +60%

Total latency = Pipeline Length × TM factor

DSP Slice Utilization

The component targets Xilinx DSP48 slices which include built-in subtractor functionality. Each DSP slice can perform one subtraction per clock cycle.

Typical use cases

  • DC offset removal in multi-channel ADC data
  • Differential signal processing (A-B)
  • Background subtraction in image processing pipelines
  • Error calculation in feedback control systems
  • Phase difference computation in MIMO systems

Waveform example

Example with TM=4, Pipeline=3, B is scalar (DC offset removal):
