DSP - BLOCK STD ERROR OF MEAN

Introduction link

The Block Std Error of Mean block chops the input stream into consecutive blocks of N samples and, at the end of each block, publishes the standard error of the mean of that block:

$$ \sigma = \sqrt{\frac{1}{N}\sum_{i=0}^{N-1}\bigl(x_i-\bar{x}\bigr)^2}, \qquad \mathrm{SEM} = \frac{\sigma}{\sqrt{N}} $$

$\sigma$ here is the population standard deviation of the block - exactly the quantity Block Std Dev produces - and N is the block length.

N is a runtime input, not a property. You drive the exponent on the EXP pin and the block size is $N = 2^{\mathrm{EXP}}$:

What a standard error is FOR link

$\sigma$ answers “how much does the signal wander?”. The standard error answers a different and usually more actionable question: “how much does my MEASUREMENT of the average wander?”.

• It is the error bar on a Block Mean output. Latch MEAN from a Block Mean block and SEM from this one over the same block, and you have a value and its uncertainty, ready to publish or to threshold.
• It tells you whether averaging longer still helps. Because $\mathrm{SEM}\propto 1/\sqrt{N}$, quadrupling the block halves the error bar - as long as the noise really is uncorrelated. Watch SEM as you sweep EXP: while it keeps falling like $1/\sqrt{N}$ you are still winning; when it flattens out you have hit drift or correlated noise and a longer block is wasted time.
• It is the natural acceptance criterion for a slow-control reading: keep integrating until SEM is below the tolerance you need, then stop.
• It converts directly into a confidence interval - roughly $\bar{x}\pm 2,\mathrm{SEM}$ for 95% under the usual assumptions - which is what a CPU or an operator actually wants to see.

Why this is almost free link

N is a power of two, so $\sqrt{N} = 2^{\mathrm{EXP}/2}$ and dividing by it is half a shift - which is exactly the sort of thing a square root can absorb. Everything folds into one radicand:

$$ \mathrm{sem}^2 = \frac{\mathrm{var}}{N} = \frac{\mathrm{var_num}}{N^3}, \qquad \mathrm{var_num} = N!\cdot! S_2 - S_1^2 $$

$$ \mathrm{root} = \sqrt{;\mathrm{var_num}\cdot 2^{,2(\mathrm{SEM_{fract}}+\mathrm{SQG}) - 2,\mathrm{IN_{fract}} - 3,\mathrm{EXP}};} $$

Compare Block Std Dev, which is the same core with $2,\mathrm{EXP}$ in that exponent instead of $3,\mathrm{EXP}$: the extra EXP is the $/N$ that turns the variance into the variance of the mean. That is the entire difference. There is no divider, no extra multiplier and not one clock more.

Odd exponents are exact. There is no $\sqrt{2}$ factor to approximate anywhere, because the halving happens inside the root - $3,\mathrm{EXP}$ is an integer shift for every EXP, odd or even.

Cost link

Per clock: one multiplier for $x^2$ (unavoidable at one sample per clock) and two accumulators, $S_1$ and $S_2$. In the tail: one reused shift-add stage for the serial $|S_1|\cdot|S_1|$ and one reused compare-subtract stage for the square root, each taking one step per clock. What you pay for the tail is clocks, not multipliers - and there is no DSP in the tail at all.

Identical, to the flip-flop and to the clock, to Block Std Dev at the same output width.

When to use this instead of Block Statistics link

The all-in-one Block Statistics block is not deprecated, but it does not compute this statistic: its outputs include MEAN, VARIANCE, STDDEV, RMS, SUM, SUM_SQ, min/max and the rest, but there is no standard-error pin. The rule is therefore slightly different here:

• you want several statistics of the SAME block and the standard error - place a Block Statistics block for the rest and this block alongside it. They will each keep their own accumulators, which is the price of a statistic the all-in-one does not have.
• you want exactly one number - use this block on its own. Then you synthesise only that number: two accumulators, one serial squarer, one serial root, and nothing else reaches the synthesiser.

If what you really need is $\sigma$ rather than $\sigma/\sqrt{N}$, use Block Std Dev (or Block Statistics’ STDDEV) - it is the same cost, and you can divide by $\sqrt{N}$ in software when N is known.

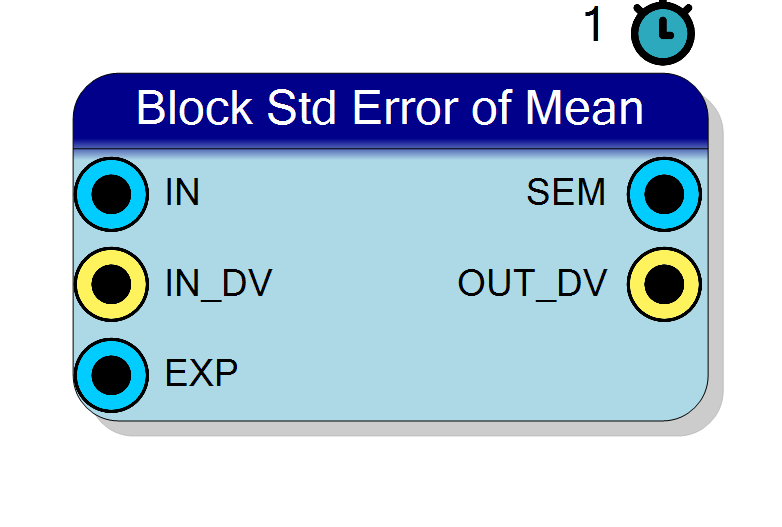

Pin Description link

Properties link

Timing: the serial tail link

All post-accumulation arithmetic is serial - the block has a whole block period of slack after the N-th sample, so there is no reason to build a parallel datapath for it. The state walk is

  IDLE -(block complete)-> MUL x (IN_SW + EXP) -> VAR -> LD -> SQRT x RTW -> FIN -> IDLE


OUT_DV pulses for one clock when the tail COMPLETES - not when the N-th sample arrives - and SEM is updated on that same clock and on no other. The latency from the N-th accepted sample to the OUT_DV pulse, counted in clocks, is

$$ L = 2 + (\mathrm{IN_SW} + \mathrm{EXP} + 1) + (\mathrm{RTW} + 1) $$

with

$$ \mathrm{RTW} = \mathrm{SEM_{int}} + \mathrm{SEM_{fract}} + 5 $$

where $\mathrm{IN_SW}$ is the total input width, plus one bit if the input is UNSIGNED (a sample has to be promoted to signed first). Collecting terms,

$$ L = \mathrm{IN_SW} + \mathrm{SEM\ width} + \mathrm{EXP} + 9 $$

so one clock per input bit, one clock per SEM output bit, one clock per unit of EXP - and, note, nothing from Max Block Exponent: unlike Block Coefficient of Variation and Block SNR, this block’s engines are sized by the output format, not by the accumulator width, so raising Max Block Exponent costs accumulator bits but not tail clocks.

Worked numbers link

For a 16 bit signed input at the default SEM format (Q8.8 unsigned, 16 bits):

• $\mathrm{RTW} = 8 + 8 + 5 = 21$
• $L = 2 + (16 + \mathrm{EXP} + 1) + (21 + 1) = 41 + \mathrm{EXP}$
• at EXP = 10 (N = 1024) that is 51 clocks, comfortably inside the block;
• the smallest exponent with $2^{\mathrm{EXP}} \ge 41+\mathrm{EXP}$ is EXP = 6, i.e. N = 64 ($64 \ge 47$; at EXP = 5, $32 < 46$).

A few more configurations:

A longer block gives more slack than it costs. $L$ grows by one clock per unit of EXP while $2^{\mathrm{EXP}}$ doubles, so $2^{\mathrm{EXP}} \ge L$ gets easier as EXP grows, not harder. The constraint only ever bites at the short end.

The 2^EXP >= L rule, and what happens when it is broken link

The tail of one block must finish before the next block completes:

$$ 2^{\mathrm{EXP}} \ge L $$

If a block completes while the previous tail is still running, that block’s result is DROPPED: there is no OUT_DV for it, the accumulators are unaffected and the following blocks come out correctly, but a result is silently skipped. There is no error pin for it.

The property page refuses a configuration whose minimum exponent exceeds Max Block Exponent, and CompileHDL prints both numbers - the worst-case tail length and the minimum usable EXP - in the compilation log, so the static half of the problem is caught for you.

But EXP is a PIN. Nothing can stop a design driving it too low at RUN TIME: an EXP of 4 or 5 that would be perfectly reasonable on Block Mean drops every result here, with no indication other than a silent OUT_DV. If EXP is under software control, clamp it in software to the minimum the compiler printed.

A note on SCALE - give it fractional bits link

This is the one thing to get right on this block. SEM is $\sigma/\sqrt{N}$, so for a long block it is SMALL - that is the entire point of the statistic:

With IN fractional bits = 0 and a $2^{20}$ block, the standard error is 1024 times smaller than $\sigma$ - so you need ten fractional bits just to get back to one LSB of the input, and more than that to resolve it. Ask for too few and the root truncates and the block will faithfully report 0, which is a perfectly correct answer to the question you asked and not the one you wanted.

That is why the default format is Q8.8 unsigned: eight fractional bits (steps of 1/256) rather than the zero fractional bits that the rest of the family defaults to. On a long block, or on an input with several fractional bits of its own, raise it. Each output bit costs exactly one clock of tail (see the table above), which at these tail lengths is cheap.

Conversely the integer side rarely needs to be wide: SEM cannot exceed $\sigma$, and $\sigma$ cannot exceed the input range, so $\mathrm{SEM_{int}} \le \mathrm{IN_{int}}$ is always safe and usually generous.

Accuracy link

$\mathrm{var_num} = N!\cdot!S_2 - S_1^2$ is an exact integer: $N\cdot S_2$ is a shift (N is a power of two) and $S_1^2$ is an exact serial shift-add product. It is never two truncated quotients subtracted from each other, which is the classic way to lose all the precision in a variance.

So the only error in the answer is the square root itself: the digit recurrence truncates below $\mathrm{SQG} = 4$ guard bits and the final requantisation rounds, giving

$$ |,\mathrm{err},| \le \tfrac{2}{16} + \tfrac{1}{2} < 1\ \mathrm{LSB} $$

The host regression enforces exactly 1 LSB, never more, against a Python golden computed in exact rational arithmetic.

Note the difference from Block Crest Factor, which divides by a root and therefore compounds two errors: here the root is the answer, so the bound is absolute and does not depend on the value.

Accumulation and IN_DV link

IN_DV is the only qualifier. It says “this clock carries a sample”: a sample is added to $S_1$, squared and added to $S_2$, and counts towards N, exactly on the clocks where IN_DV is high. Clocks with IN_DV low are ignored completely - whatever sits on IN during them cannot corrupt the block - while the serial tail keeps running, which is what you want: the tail has nothing to do with the input stream.

Unconnected, IN_DV ties to '1' and EXP ties to 10 (N = 1024), so the block free-runs with nothing wired except IN - and at N = 1024 the tail hides comfortably for any sane format.

There is deliberately no CE pin. On the all-in-one Block Statistics block an earlier revision had one, and it did not survive synthesis: with nothing but internal state gated by it, Vitis could reason the frozen path away and delete the port from the generated entity while SciCompiler’s wrapper still wired it, which failed a real Vivado build with [VRFC 10-718] formal port <ce> does not exist in entity. The whole per-operator family was built without one. To stall this block, gate its IN_DV - and note that there would be no reason to stall the tail anyway.

When EXP changes link

EXP is clamped to Max Block Exponent and then latched on the first accepted sample of a block, and held for that whole block. A change therefore takes effect on the NEXT block: a block in progress always finishes against the N it was started with, and a block is never emitted against a different N than the one it was accumulated with.

That matters more here than almost anywhere else, because the latched exponent appears three times over in the radicand shift ($3,\mathrm{EXP}$) and once more in the length of the serial squarer. Sweeping EXP from a register interface while the stream runs is safe, and every result stays self-consistent with the N it was measured over - which is exactly what you need when you are sweeping N to see whether averaging longer still helps. Latch SAMPLE_COUNT alongside the result if you want that N recorded.

Knowing where the block is: BUSY, INTEGRATING and SAMPLE_COUNT link

Three optional status outputs, all defaulting to NO. They answer different questions, and on this block the difference is useful because the tail is long:

Every output of this block is a register, so each status bit is observed on the clock after the event that sets it:

• INTEGRATING rises on the clock after the FIRST sample of a block is accepted and falls on the clock after the N-th - it is high exactly while the block is ACCUMULATING. BUSY high with INTEGRATING low is precisely the square-then-root tail.
• BUSY covers the accumulation and the tail. It rises with INTEGRATING, stays high across the tail, and its LAST HIGH CLOCK IS THE OUT_DV PULSE; it falls on the clock after.
• On a continuous stream the next block starts before the previous tail ends, so BUSY never drops and INTEGRATING dips for exactly one clock per block boundary - which makes it a free block marker.
• SAMPLE_COUNT is a fixed 32 bits and reads 1 after the first accepted sample, N after the N-th. It is NOT cleared at the block end: it HOLDS N through the tail and past OUT_DV, until the first sample of the next block takes it back to 1. so it reads N at OUT_DV only when the input STOPS for the whole tail; on a CONTINUOUS stream the next block has already started and OUT_DV shows how far into it you are. The clock that always reads N is the one INTEGRATING falls on - which is the useful thing to latch alongside the result (the N that the error bar refers to), and also the cheapest way to confirm at run time that the block was long enough for the tail. Only RESET clears it to 0.

Q formats link

Both ports carry their own fixed point format (integer bits, fractional bits, sign), the same convention as the Fixed P. family. The root is requantised into the SEM format with the selected rounding (nearest / truncate) and overflow policy (saturate / wrap); saturation is symmetric for signed formats, as everywhere else in the toolchain.

Sizing hints:

• fractional bits are the whole game - see “A note on SCALE”;
• SEM is never negative, so UNSIGNED buys one bit and is the default;
• $\mathrm{SEM_{int}} \le \mathrm{IN_{int}}$ is always enough for range, since the standard error cannot exceed $\sigma$ and $\sigma$ cannot exceed the input range;
• every bit of SEM, integer or fractional, adds exactly one clock to the tail.

Verification link

The core is regression tested by a host-side csim harness (tb/block-ops/run_tb.ps1) that runs one simulated clock at a time and follows OUT_DV. The expected values come from tb/block-ops/gen_golden.py, which evaluates $\sigma/\sqrt{N}$ in exact rational arithmetic and shares no algorithm with the core; the tolerance is exactly 1 LSB, never more. Coverage includes pseudo-random and ramp inputs, a constant block (sem = 0), maximum positive and maximum negative samples, unsigned input, fractional input and output formats, odd exponents (which is what pins the claim that the $3,\mathrm{EXP}$ shift needs no $\sqrt{2}$ approximation), truncate instead of round, IN_DV gaps inside the accumulation, an EXP that changes half way through a block, and an EXP driven above Max Block Exponent to exercise the clamp. The tail length is checked against the formula at compile time: three copies of it exist - the BSE_TAIL macro in the core, tail_len() in the generator and TailClocks() in the plugin - and the testbench refuses to build if they disagree. The status outputs are checked clock by clock against the contract above.
