Fixed P. Min
Returns the smaller of two fixed-point operands. Unlike a comparator, which only produces a boolean flag, this block outputs the selected value.
Introduction
The block computes, in fixed-point arithmetic, $$ \mathrm{OUT} = \min(A, B) $$
Every operand and every result carries its own Q format: the number of integer bits, the number of fractional bits and the sign are chosen independently. The binary point is tracked through the whole datapath, so operands with different scaling are aligned automatically – no manual shifting is required, which is the main practical difference with respect to the integer-only arithmetic blocks.

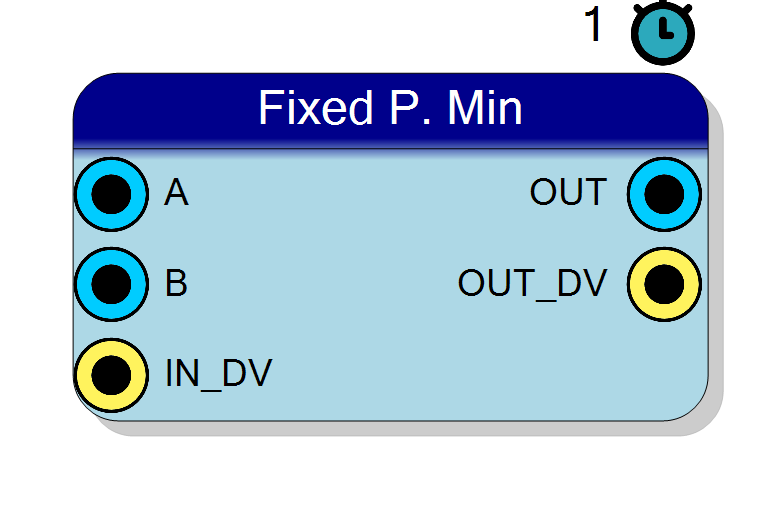

Pin Description
Properties
Number of INTEGER bits of A (the sign, when present, uses one of them).
Number of INTEGER bits of the operandA (1 to 64). When the port is SIGNED one
of these bits carries the sign.
Default: 16
Options: 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64
Number of FRACTIONAL bits of A, i.e. the bits to the right of the binary point. Total width = integer + fractional bits.
Number of FRACTIONAL bits of the operandA (0 to 64), i.e. the bits to the right
of the binary point. Total port width = integer + fractional bits.
Default: 0
Options: 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64
Select whether A is signed (two’s complement) or unsigned.
Arithmetic type of A:
- SIGNED – two’s complement, range $[-2^{N_{int}-1}, 2^{N_{int}-1})$
- UNSIGNED – non negative only, range $[0, 2^{N_{int}})$
Default: SIGNED
Options: UNSIGNED SIGNED
Number of INTEGER bits of B (the sign, when present, uses one of them).
Number of INTEGER bits of the operandB (1 to 64). When the port is SIGNED one
of these bits carries the sign.
Default: 16
Options: 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64
Number of FRACTIONAL bits of B, i.e. the bits to the right of the binary point. Total width = integer + fractional bits.
Number of FRACTIONAL bits of the operandB (0 to 64), i.e. the bits to the right
of the binary point. Total port width = integer + fractional bits.
Default: 0
Options: 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64
Select whether B is signed (two’s complement) or unsigned.
Arithmetic type of B:
- SIGNED – two’s complement, range $[-2^{N_{int}-1}, 2^{N_{int}-1})$
- UNSIGNED – non negative only, range $[0, 2^{N_{int}})$
Default: SIGNED
Options: UNSIGNED SIGNED
Number of INTEGER bits of OUT (the sign, when present, uses one of them).
Number of INTEGER bits of the resultOUT (1 to 64). When the port is SIGNED one
of these bits carries the sign.
Default: 16
Options: 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64
Number of FRACTIONAL bits of OUT, i.e. the bits to the right of the binary point. Total width = integer + fractional bits.
Number of FRACTIONAL bits of the resultOUT (0 to 64), i.e. the bits to the right
of the binary point. Total port width = integer + fractional bits.
Default: 0
Options: 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64
Select whether OUT is signed (two’s complement) or unsigned.
Arithmetic type of OUT:
- SIGNED – two’s complement, range $[-2^{N_{int}-1}, 2^{N_{int}-1})$
- UNSIGNED – non negative only, range $[0, 2^{N_{int}})$
Default: SIGNED
Options: UNSIGNED SIGNED
ROUND: round to nearest when the output format has fewer fractional bits than the operands. TRUNCATE: drop them (cheaper, adds a negative bias).
- ROUND – round to nearest when discarding fractional bits
- TRUNCATE – discard them (cheaper, introduces a negative bias)
Default: ROUND
Options: TRUNCATE ROUND
YES: clip to the largest representable output value. NO: wrap around. Only matters when the output format is narrower than the operands.
- YES – clip to the largest representable output value on overflow
- NO – wrap around modulo the output width
Default: YES
Options: NO YES
Number of output register stages, i.e. the latency in clock cycles. 0 makes the block purely combinational.
Fixed latency of the block in clock cycles (1 to 8). Higher values ease timing closure without changing the numerical result.Default: 1
Options: 0 1 2 3 4 5 6 7 8
Functional description
$$ \mathrm{OUT} = \min(A, B) $$
where
A– input operand, format $Q_{A_BitsInt.A_BitsFract}$B– input operand, format $Q_{B_BitsInt.B_BitsFract}$OUT– result, format $Q_{OUT_BitsInt.OUT_BitsFract}$
Fixed-point format
A value with $N_{int}$ integer bits and $N_{frac}$ fractional bits is stored on $N_{int} + N_{frac}$ bits and represents
$$ \text{value} = \frac{\text{raw integer}}{2^{N_{frac}}} $$
When the operand is SIGNED, one of the integer bits carries the sign (two’s complement). Each port is configured independently, so it is perfectly legal to feed a $Q_{16.0}$ signal and a $Q_{2.14}$ coefficient into the same block.
Implementation
Comparison after binary point alignment followed by a multiplexer. No DSP used.
Rounding and overflow
Two properties control how the internal full precision result is reduced to the output format:
- Rounding –
ROUNDrounds to nearest when fractional bits are discarded,TRUNCATEsimply drops them. Truncation is cheaper but introduces a systematic negative bias, which accumulates in a long processing chain. - Saturation –
YESclips to the largest representable value,NOwraps around. Wrapping turns a small overflow into a full-scale sign flip, so saturation is strongly recommended for signal processing.
Latency
The PipelineLength property fixes the latency of the block in clock cycles (1 to 8). Raising it helps timing closure at high clock rates and does not change the numerical result. The symbol reports the configured latency.
Typical use cases
- Lower bound enforcement
- Running minimum when combined with a feedback path
- Selecting the quieter of two channels
