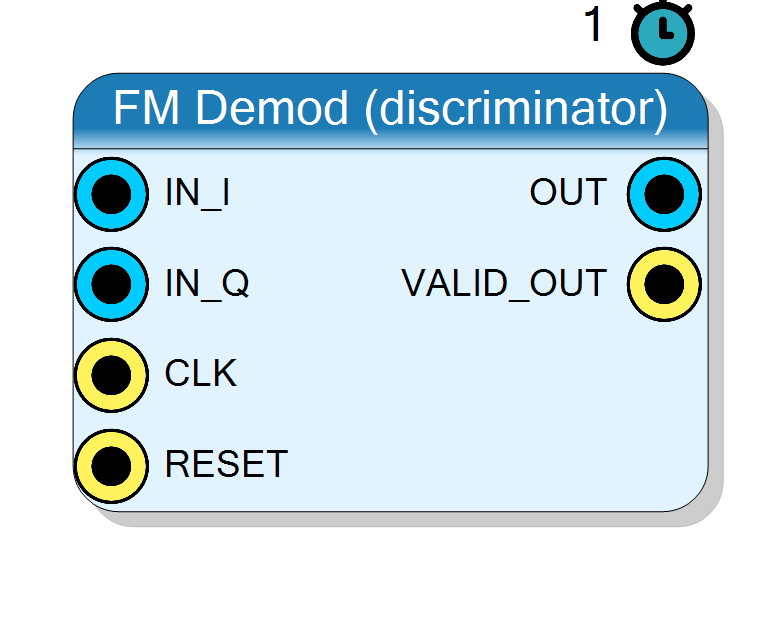

Block Preview

Introduction

The FM Demod (discriminator) block recovers the message from a complex I/Q baseband FM signal z[n] = I[n] + jQ[n]. The instantaneous frequency is the phase difference between consecutive samples, obtained from the argument of the product with the conjugate of the previous sample:

      d[n]   = z[n] * conj(z[n-1])
           = (I*Ip + Q*Qp) + j(Q*Ip - I*Qp)
    msg[n] = arg(d[n]) = atan2(Im d, Re d)

Because arg(d) is the phase increment per sample, it is already wrapped into (-pi, pi] and no explicit phase unwrap is required. The atan2 is computed with a fixed-point CORDIC (vectoring mode). The output is the instantaneous frequency (proportional to the message), scaled so that arg = pi maps to full scale 2^(OutputSize-1) (i.e. +-pi <-> +-Fs/2 of deviation).

Feed this block complex baseband: for a real passband FM input, put a DDC (mixer + decimator) or the Hilbert block in front. This block uses the standard property grid (no custom designer).

Pin Description

IN_I Input InputSize bit BIT VECTOR
In-phase (I) baseband input. Signed, InputSize bits.
Default: Must be connected
IN_Q Input InputSize bit BIT VECTOR
Quadrature (Q) baseband input. Signed, InputSize bits.
Default: Must be connected
CLK Input 1 bit BIT
System clock input. Default: Acquisition clock.
Default: Default Board Clock
RESET Input 1 bit BIT
HLS synchronous reset (ap_rst). Default: Global reset. Clears the stored previous sample.
Default: Default Board Reset
OUT Output OutputSize bit BIT VECTOR
Recovered message = instantaneous frequency (real). Signed, OutputSize bits; full scale 2^(OutputSize-1) corresponds to a per-sample phase step of pi (Fs/2 deviation).
VALID_OUT Output 1 bit BIT
Output-valid strobe. Always high once data flows (full-rate, one output per clock).

Properties

Property window

Input Bit Width InputSize

I/Q input bit width.

I/Q input bit width. Range 4 to 32, default 16.

Default: 16

Options: 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32

Output Bit Width OutputSize

Frequency output width (full scale = +-pi = +-Fs/2 deviation).

Frequency output width; full scale (2^(OutputSize-1)) = +-pi = +-Fs/2 deviation. One of 12, 14, 16, 18, 20, 24, default 18.

Default: 18

Options: 12 14 16 18 20 24

CORDIC Iterations CordicN

atan2 precision (more = finer, more logic).

Number of CORDIC iterations for the atan2. More iterations give finer angle precision at the cost of logic. One of 10, 12, 14, 16, 18, default 14.

Default: 14

Options: 10 12 14 16 18

Usage

CORDIC atan2

atan2(y, x) is computed by CORDIC vectoring over CordicN iterations. The input is first folded into the right half-plane (adding +-pi when x < 0), then rotated toward the real axis, accumulating the per-stage angles:

      for i in 0..CordicN-1:
        if yi > 0:  xi += yi>>i;  yi -= xi>>i;  ang += ATAN_LUT[i]
        else:       xi -= yi>>i;  yi += xi>>i;  ang -= ATAN_LUT[i]

The angle table holds ATAN_LUT[i] = round(atan(2^-i) / pi * 2^(OutputSize-1)) (fm_demod_atan.inc), so the result comes out directly in the output’s angle units where pi == 2^(OutputSize-1).

Output scaling

      OUT = atan2(Im d, Re d),   with  pi  ->  2^(OutputSize-1)   (full scale)

A per-sample phase step of pi radians (the fastest representable, = Fs/2 of frequency deviation) produces full-scale output; smaller deviations scale linearly.

Bit widths

  • IN_I, IN_Q : signed InputSize bits.
  • Conjugate-product terms: 2*InputSize + 2 bits.
  • OUT : signed OutputSize bits.

Latency and throughput

  • #pragma HLS PIPELINE II=1 : one output sample per clock.
  • VALID_OUT is asserted high on every valid output sample.
  • All ports use the ap_none interface (no ready/valid handshake).

Reset

RESET is the HLS synchronous reset (ap_rst). It clears the stored previous sample (pi_, pq_); the first output after reset uses a zero previous sample.

Typical applications

  • FM / FSK demodulation of a complex-baseband signal after a DDC.
  • Instantaneous-frequency estimation of any analytic signal (e.g. from the Hilbert block).

Resources & Timing

  • Latency: 1 clock cycle (pipelined CORDIC, II=1)

  • Throughput: 1 sample per clock (II=1)

Implemented with Vitis HLS. Four multipliers for the conjugate product, then an unrolled CordicN-stage CORDIC (shift-add only, no multipliers) for the atan2. The angle constants (fm_demod_atan.inc) are compile-time constants. The HLS unique name depends on InputSize, OutputSize and CordicN.
