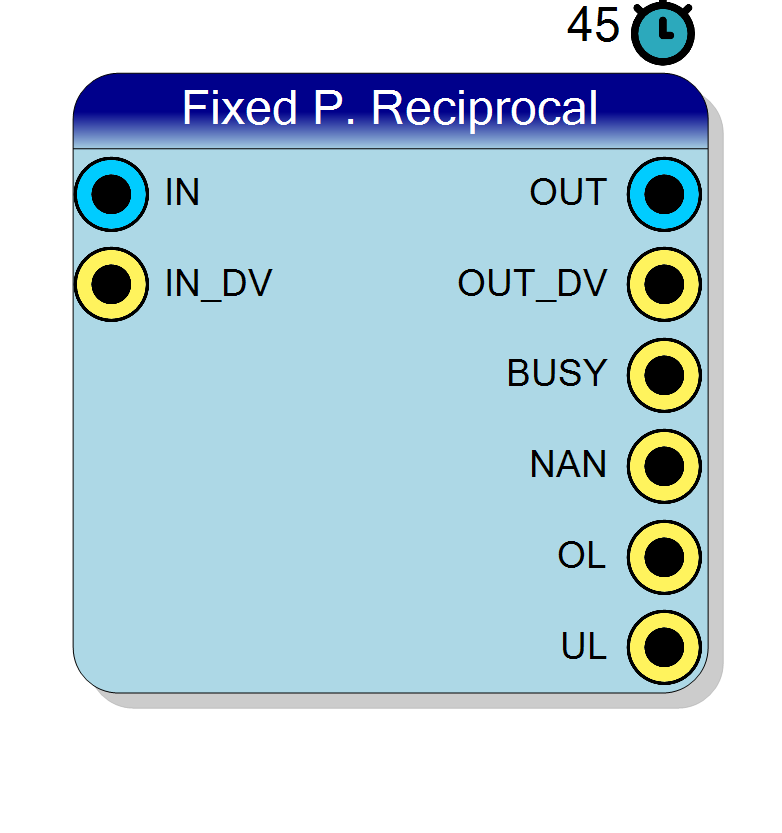

Block Preview

Introduction

The block computes, in fixed-point arithmetic, $$ \mathrm{OUT} = \frac{1}{\mathrm{IN}} $$

Every operand and every result carries its own Q format: the number of integer bits, the number of fractional bits and the sign are chosen independently. The binary point is tracked through the whole datapath, so operands with different scaling are aligned automatically – no manual shifting is required, which is the main practical difference with respect to the integer-only arithmetic blocks.

Input domain. IN must not be zero; a zero input saturates the output.

Pin Description

IN Input Variable bit BIT VECTOR
Input operand, format Q(IN Integer Bits . IN Fractional Bits).
Default: Must be connected
IN_DV Input 1 bit BIT
Input data valid, active high. Tie to ‘1’ for free running operation.
OUT Output 24 bit BIT VECTOR
Result, format Q(OUT Integer Bits . OUT Fractional Bits).
OUT_DV Output 1 bit BIT
Output data valid, asserted when the result is available.
BUSY Output 1 bit BIT
Back pressure of the SERIAL engine: high means IN_DV is IGNORED on this clock. It is low on the clock a sample is accepted, high for the whole conversion including the clock that carries OUT_DV, and low again on the next one. A sample presented while BUSY is high is dropped silently - there is no input FIFO.
NAN Output 1 bit BIT
Result undefined, asserted together with OUT_DV for the sample it qualifies: the operand is zero (1/0). OUT still carries the best defined value the block can produce, so this pin is the only way to know it is not the answer to the question asked. NAN suppresses OL and UL.
OL Output 1 bit BIT
Overflow: the true result left the OUT format and was saturated - wrapped instead, when Enable Saturation is NO. Asserted together with OUT_DV, mutually exclusive with UL, and suppressed by NAN.
UL Output 1 bit BIT
Underflow: the true result was NOT zero but requantised to zero in the OUT format, i.e. the whole value was lost. Asserted together with OUT_DV, mutually exclusive with OL, and suppressed by NAN.
CLK
Processing clock, connected to the acquisition clock.
RESET
Global synchronous reset, active high.

Properties

Property window

IN Integer Bits IN_BitsInt

Number of INTEGER bits of IN (the sign, when present, uses one of them).

Number of INTEGER bits of the operand IN (1 to 64). When the port is SIGNED one of these bits carries the sign.

Default: 16

Options: 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64

IN Fractional Bits IN_BitsFract

Number of FRACTIONAL bits of IN, i.e. how many bits sit to the right of the binary point. Total width = integer + fractional bits.

Number of FRACTIONAL bits of the operand IN (0 to 64), i.e. the bits to the right of the binary point. Total port width = integer + fractional bits.

Default: 0

Options: 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64

IN Sign IN_Sign

Select whether IN is a signed (two’s complement) or unsigned quantity.

Arithmetic type of IN:

  • SIGNED – two’s complement, range $[-2^{N_{int}-1}, 2^{N_{int}-1})$
  • UNSIGNED – non negative only, range $[0, 2^{N_{int}})$

Default: SIGNED

Options: UNSIGNED SIGNED

OUT Integer Bits OUT_BitsInt

Number of INTEGER bits of OUT (the sign, when present, uses one of them).

Number of INTEGER bits of the result OUT (1 to 64). When the port is SIGNED one of these bits carries the sign.

Default: 8

Options: 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64

OUT Fractional Bits OUT_BitsFract

Number of FRACTIONAL bits of OUT, i.e. how many bits sit to the right of the binary point. Total width = integer + fractional bits.

Number of FRACTIONAL bits of the result OUT (0 to 64), i.e. the bits to the right of the binary point. Total port width = integer + fractional bits.

Default: 16

Options: 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64

OUT Sign OUT_Sign

Select whether OUT is a signed (two’s complement) or unsigned quantity.

Arithmetic type of OUT:

  • SIGNED – two’s complement, range $[-2^{N_{int}-1}, 2^{N_{int}-1})$
  • UNSIGNED – non negative only, range $[0, 2^{N_{int}})$

Default: SIGNED

Options: UNSIGNED SIGNED

Rounding Rounding

ROUND: round to nearest when discarding fractional bits. TRUNCATE: drop them (cheaper, adds a DC bias).

  • ROUND – round to nearest when discarding fractional bits
  • TRUNCATE – discard them (cheaper, introduces a negative bias)

Default: ROUND

Options: TRUNCATE ROUND

Saturation EnableSaturation

YES: clip to the largest representable output value on overflow. NO: wrap around (cheaper, but overflow changes sign).

  • YES – clip to the largest representable output value on overflow
  • NO – wrap around modulo the output width

Default: YES

Options: NO YES

Status Flags StatusFlags

YES: the block exposes three extra 1-bit outputs, valid together with OUT_DV – NAN (the result is mathematically undefined for the operands presented, or the operand had to be clamped into the convergence domain of the algorithm), OL (overflow: the true result left the output format and was saturated), and UL (underflow: the true result was not zero but requantized to zero). NO: the pins are not generated and the logic that produces them is not synthesised.

Default: YES

Options: NO YES

Implementation Implementation

SERIAL: one iteration per clock on a single reused stage – smallest area and fastest to synthesise, but the block needs several clocks per sample and exposes a BUSY output. PIPELINED: the whole iteration is unrolled, one result per clock, at 20 to 43 times the logic.

Default: SERIAL

Options: SERIAL PIPELINED

Pipeline Length PipelineLength

Fixed latency of the block, in clock cycles. More stages ease timing closure. Ignored in SERIAL mode, where the latency is set by the iteration count.

Fixed latency of the block in clock cycles (1 to 8). Higher values ease timing closure without changing the numerical result.

Default: 6

Options: 1 2 3 4 5 6 7 8

Functional description

$$ \mathrm{OUT} = \frac{1}{\mathrm{IN}} $$

where

  • IN – input operand, format $Q_{IN_BitsInt.IN_BitsFract}$
  • OUT – result, format $Q_{OUT_BitsInt.OUT_BitsFract}$

Fixed-point format

A value with $N_{int}$ integer bits and $N_{frac}$ fractional bits is stored on $N_{int} + N_{frac}$ bits and represents

$$ \text{value} = \frac{\text{raw integer}}{2^{N_{frac}}} $$

When the operand is SIGNED, one of the integer bits carries the sign (two’s complement). Each port is configured independently, so it is perfectly legal to feed a $Q_{16.0}$ signal and a $Q_{2.14}$ coefficient into the same block.

Implementation

Exact integer division of a pre-shifted unit numerator. Give the output plenty of fractional bits, since the result of 1/x is small whenever x is large.

Rounding and overflow

Two properties control how the internal full precision result is reduced to the output format:

  • Rounding – ROUND rounds to nearest when fractional bits are discarded, TRUNCATE simply drops them. Truncation is cheaper but introduces a systematic negative bias, which accumulates in a long processing chain.
  • Saturation – YES clips to the largest representable value, NO wraps around. Wrapping turns a small overflow into a full-scale sign flip, so saturation is strongly recommended for signal processing.

Latency

The PipelineLength property fixes the latency of the block in clock cycles (1 to 8). Raising it helps timing closure at high clock rates and does not change the numerical result. The symbol reports the configured latency.

Typical use cases

  • Normalising by a reference or gain value
  • Turning a division by a constant into a multiplication
  • Computing rates from periods
