Overview

SciCompiler is a tool designed to speed-up the development of small-medium and large scientific experiments. Usually more than one channel is used and the functionalities of different channels are identical.

Sub design helps to avoid unnecessary copy and paste. It is possible to implement a single channel processing logic in a sub sheet and then replicate the component several times in the top design.

This is not the best practice to implement a multichannel design. In SciCompiler exists a specific sub design entry for multichannel design.

Example: Polarity Inversion Block

Consider the following application: we want to change the polarity of input signals using a common register.

Step 1: Create the Sub-Design

First, implement the configurable polarity inversion block for a single channel in a sub-design.

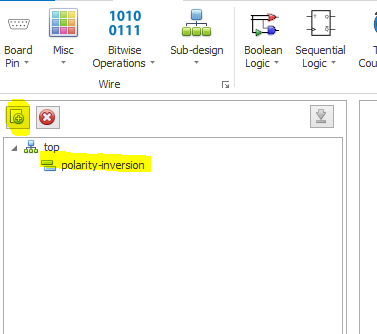

Sub-Design Symbol

Step 2: Implement the Logic

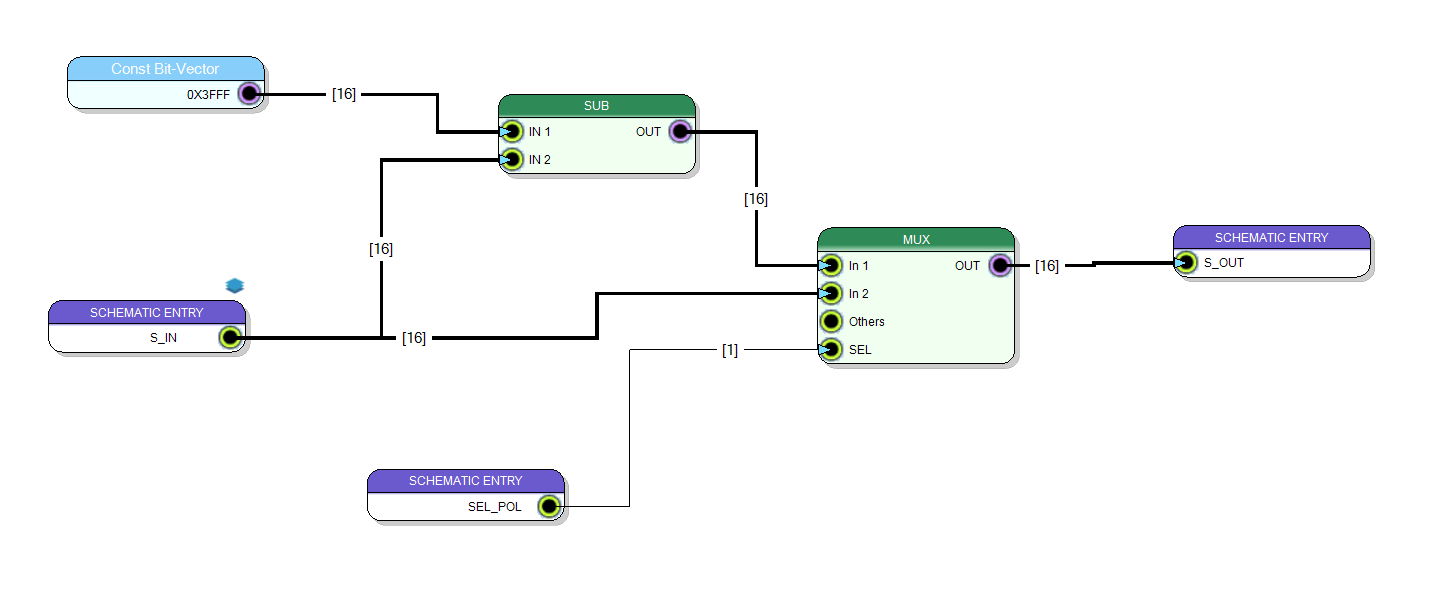

In the sub design sheet, place the correct blocks:

  • Subtraction with respect to 0x3FFF to implement the inversion
  • A mux to select if using positive (1) or negative (0) polarity

Sub-Design Implementation

Step 3: Create Schematic Ports

As you can see in the diagram above, we also create schematic entries (Input/Output ports):

  • S_IN: Signal input is the 16 bit signal input port. In a multichannel design this port must be replicated, one per channel
  • S_OUT: Signal output is the 16 bit signal output port. In a multichannel design this port must be replicated, one per channel
  • SEL_POL: Is a 1 bit input to select between positive (1) and negative/inverted (0) polarity. This port should be common for all channels

Creating Schematic Ports

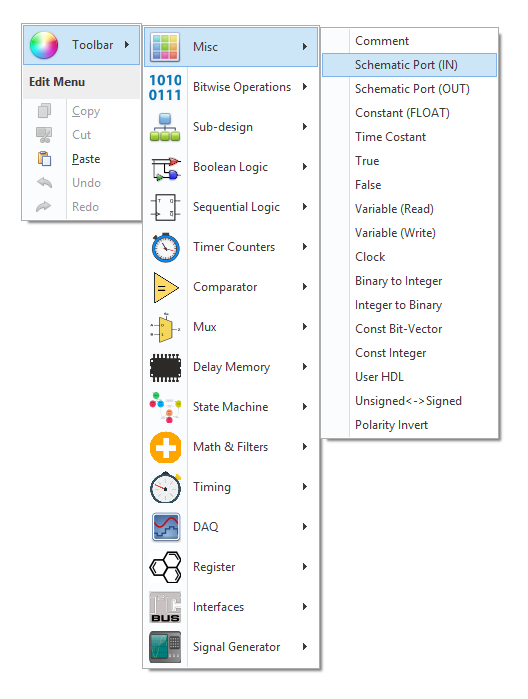

To create a port, right click on the diagram and select MISC → Schematic Port.

Create Schematic Port

Port Multichannel Behavior

When placing an input port, the tool asks if you want to create a port for each channel or a common port for all channels.

This option is available only for input ports. Output ports will always be one for each channel in order to avoid bus contentions.

To create the port as one port for each channel, select ARRAY in multichannel behavior.

ARRAY Port (Replicated per Channel)

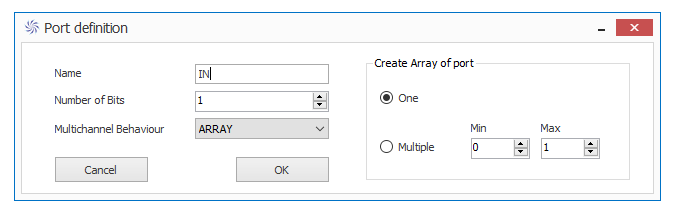

For S_IN PORT we will select multichannel behavior to ARRAY:

ARRAY Port Configuration

The symbol created will have the multi-square icon to indicate that this port will be replicated in a multichannel design:

ARRAY Port Icon

COMMON Port (Shared by All Channels)

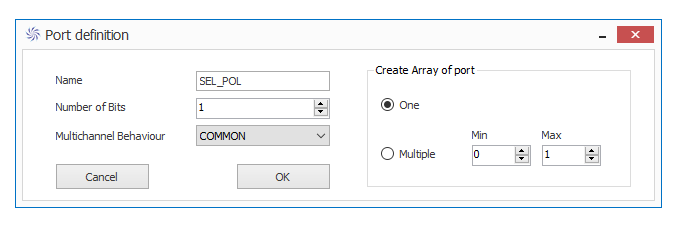

For SEL_POL we will create the port as COMMON to provide the same value to all sub-design channels:

COMMON Port Configuration

Compiling the Sub-Design

Remember to compile the page before using it in a top design:

Compile Sub-Design

Creating Multichannel Sub-Design in Top Design

Step 1: Insert Multichannel Sub-Design

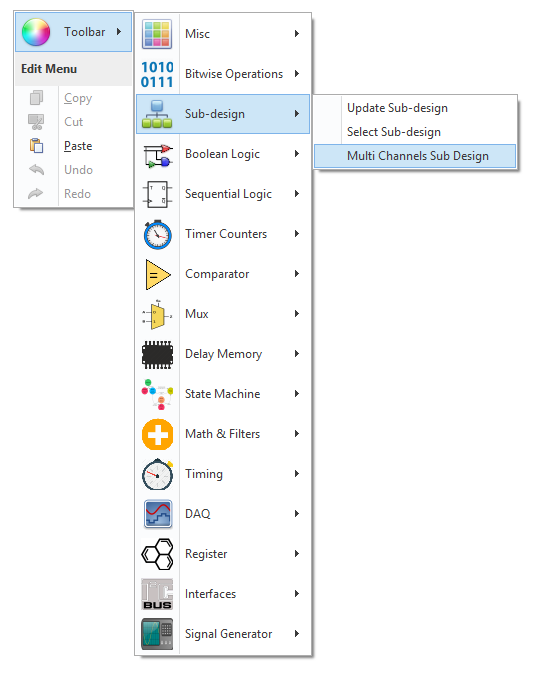

In the top design, create a multichannel sub design: Right Click → sub-design → Multi channels sub design

Insert Multichannel Sub-Design

Step 2: Configure Replication

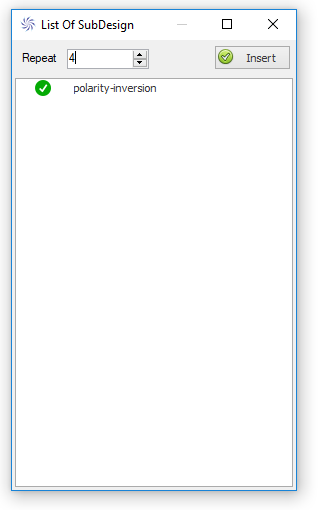

Sci-Compiler prompts to select a sub-design and choose the number of times to replicate it:

Configure Multichannel

Step 3: Multichannel Block Created

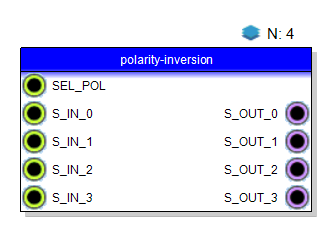

The multichannel block is created in the top file:

Multichannel Block

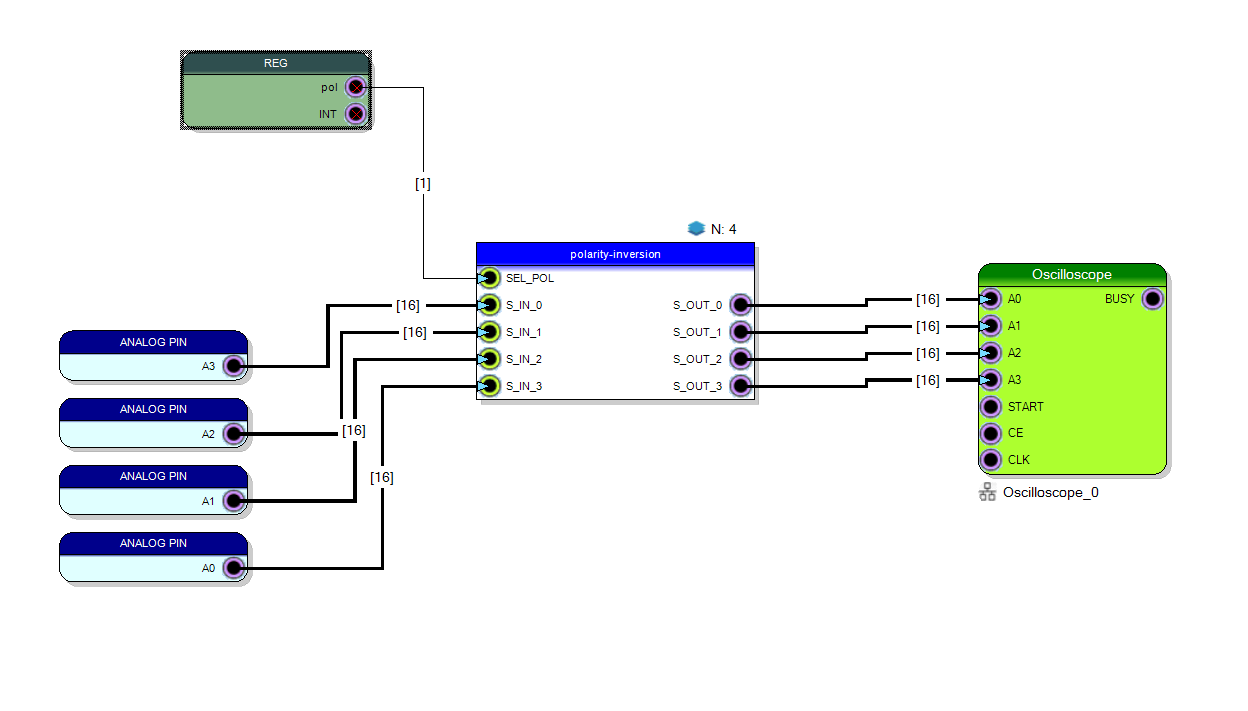

Each channel has an input and an output, and all share the SEL_POL input:

Multichannel Block Connected

Port Types Summary

ARRAY Ports

  • Behavior: One port instance per channel
  • Use for: Signals that differ per channel (inputs, outputs)
  • Icon: Multi-square symbol
  • Example: Individual signal inputs/outputs

COMMON Ports

  • Behavior: Single port shared by all channels
  • Use for: Configuration parameters, control signals
  • Icon: Standard port symbol
  • Example: Mode selection, enable signals

Output Ports

  • Always ARRAY: Prevents bus contention
  • Cannot be COMMON: Each channel must have separate output
