Overview

The Petiroc configuration interface allows generating the ASIC bitstream, displaying it, and programming the ASIC connected to the Slow Control Endpoint.

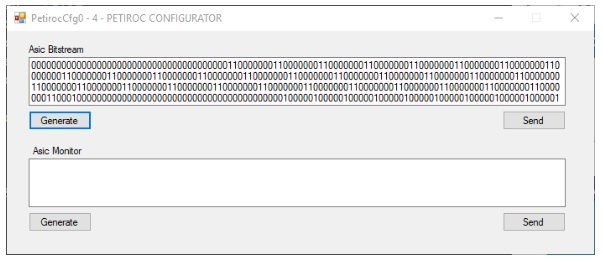

Petiroc Slow Control Interface

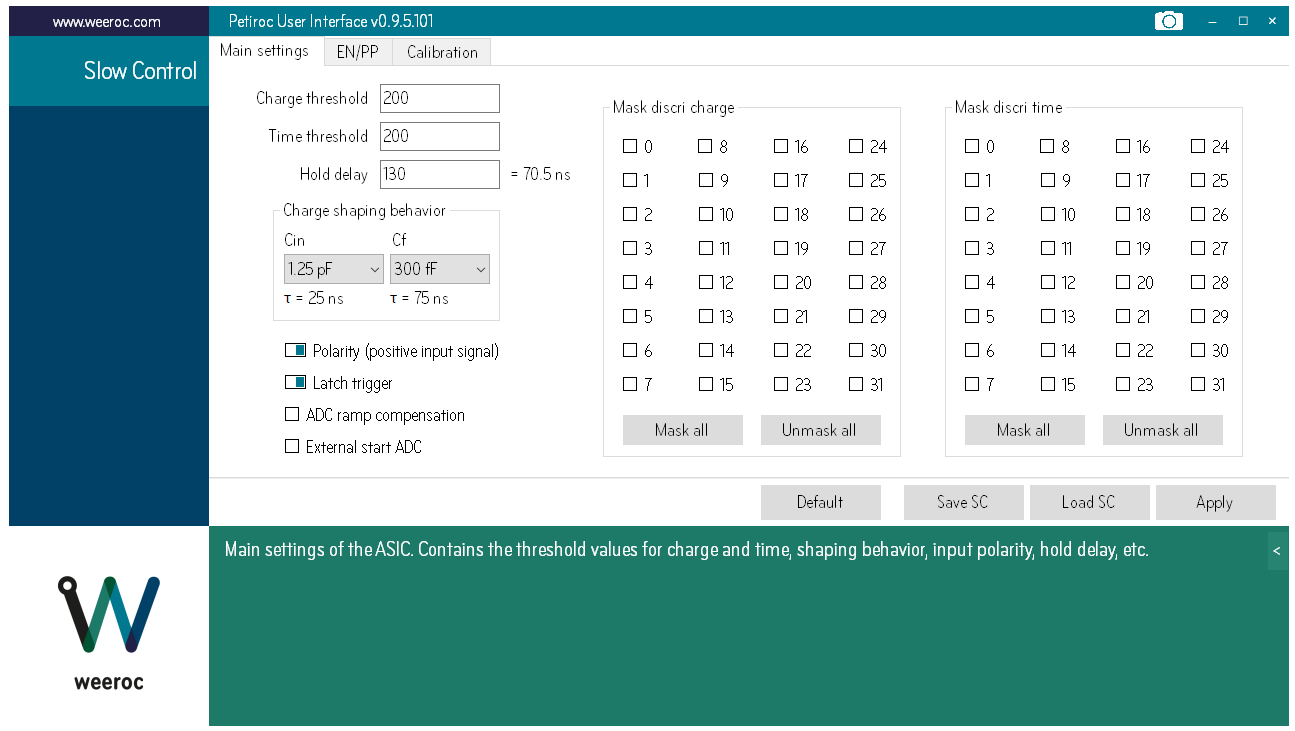

Petiroc Slow Control Configuration

Functionality

The Petiroc Slow Control interface provides the following capabilities:

  • Generate ASIC bitstream: Create the configuration bitstream for the Petiroc ASIC
  • Display bitstream: View the generated bitstream configuration
  • Program ASIC: Upload the configuration to the ASIC connected to the Slow Control Endpoint
