TM

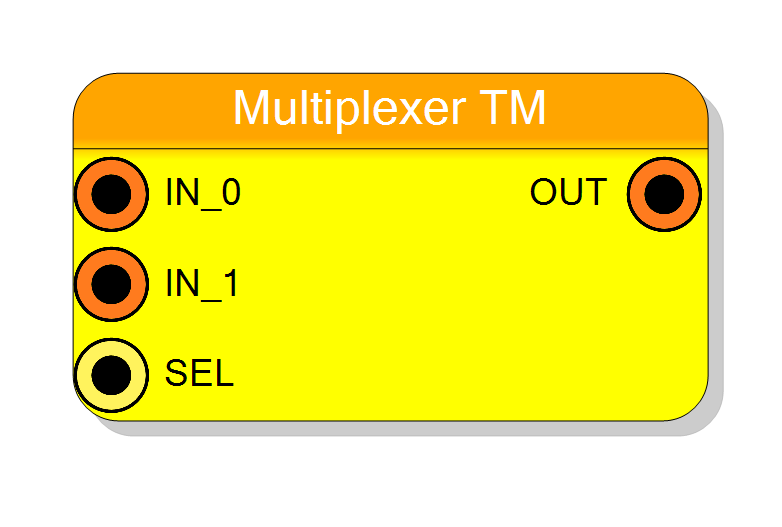

Block Preview

Introduction

Parallel multiplexing on TM data streams. See Multiplexer for details.

Pin Description

IN_0 Input 16 bit TM
IN_1 Input 16 bit TM
SEL Input Variable (TM) bit BIT
TM select signal. Width: ceil(log2(M)) × TM Factor.
Default: Must be connected
OUT Output Variable (TM) bit TM
TM output. Width: Input Size × TM Factor.
IN_0 to IN_(M-1) Variable (TM) bit
TM inputs (M inputs). Width per input: Input Size × TM Factor.

Properties

Property window

Number Of Input InputCount

Set the number of inputs

Number of inputs. Range: 2-16384.

Default: 2

Range: 2 – 16384

Input Size InputWordsize

Set the size in bit of inputs

Bits per sample. Range: 1-16384.

Default: 16

Range: 1 – 16384

Time Mux TimeMultiplexing

Set number of samples for each clock cycle

Default: 4

Options: 2 4 8 16 32

TMFactor TMFactor
TM factor: 2, 4, 8, 16, or 32.

Usage

Replicates MUX N times (N = TM Factor). Each phase selects independently. Zero latency.
