Interpolated Trigger - LE
ATI_LE_LINEAR is a sub-sample trigger that detects when a 16-bit sampled waveform crosses a programmable threshold (leading edge). A 48-bit time-tag is generated with 4-bit sub-sample resolution using linear interpolation, together with a single-cycle trigger pulse. The core is fully synchronous and supports time-multiplexed signal streams.
Introduction
ATI_LE_LINEAR implements a linear-interpolated leading-edge trigger suitable for precise time-of-arrival measurements on analog pulses.
Let
$$ \begin{aligned} V[n] &= \text{input sample at clock } n,\ \mathrm{THR} &= \text{programmable threshold}. \end{aligned} $$
A trigger is detected whenever the signal crosses the threshold from below:
$$ V[n-1] \ge \mathrm{THR} ;\land; V[n] < \mathrm{THR}, $$
where THR is the programmable Threshold input. The exact crossing point is found by linear interpolation:
$$ x = \frac{\mathrm{THR} - V[n-1]}{V[n] - V[n-1]};;,\qquad 0 \le x < 1, $$
which is internally represented on 4 fractional bits ($x_\text{fixed}= \lfloor 16,x \rfloor$).
The 48-bit output time-stamp is therefore
$$ T_\text{out}= (N_{\text{clk}}\ll4)+x_\text{fixed}, $$
offering a resolution of $T_\mathrm{s}/16$, where $T_\mathrm{s}$ is the sampling period.

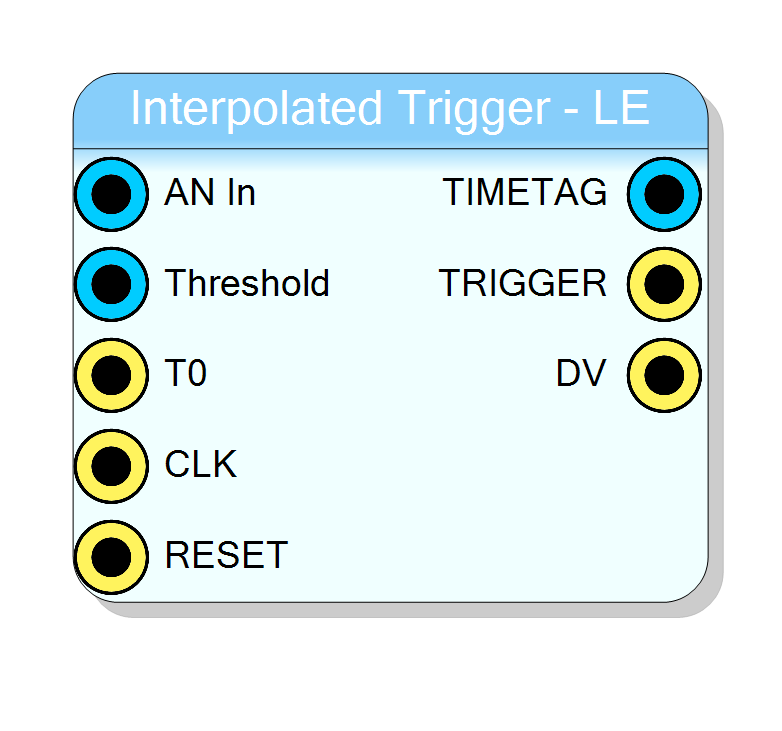

Pin Description
{counter[43:0], fraction[3:0]}.
Valid only when DV = 1 (one clock cycle).
Usage
Functional overview
ATI_LE_LINEAR is a three-stage finite-state machine:
| State | Action |
|---|---|
| IDLE | Wait for leading edge threshold crossing condition. |
| MEAS1 | Store $(V[n-1], V[n])$ and raise TRIGGER for one cycle. |
| OUTPUT | Compute fractional delay, deliver 48-bit TIMESTAMP, assert DV, return to IDLE. |
Internally a 44-bit free-running counter timestamp_counter
(incremented every clock) provides the coarse time base.
On each event the counter is concatenated with the 4-bit interpolation
result to form the fine-time tag.
Mathematical background
The trigger detects when the input signal crosses a fixed threshold level. This leading-edge approach is simple and effective for signals with consistent rise times.
To achieve sub-sample resolution, the discrete points $(n-1, V[n-1])$ and $(n, V[n])$ are linearly interpolated to find the exact threshold crossing; because the computation is purely arithmetic it synthesises efficiently in FPGA fabric (18-bit adders/dividers).
Timestamp format
The output timestamp is composed of:
- TCOARSE (bits 47:4): 44-bit coarse timestamp from the free-running counter
- TFINE (bits 3:0): 4-bit sub-sample interpolation result
Total resolution: $T_\mathrm{s}/16$ where $T_\mathrm{s}$ is the sampling period.
Practical use-case
Typical applications include:
- Scintillator detectors with PMT or SiPM readout.
- Nuclear physics time-of-flight measurements.
- Radiation detection systems requiring precise timing.
- Any application where signals have consistent shapes.
Timing
-
Latency (CLK domains): • 1 cycle from threshold crossing to TRIGGER assertion • 2 cycles from threshold crossing to TIMESTAMP / DV
-
Throughput: one sample per clock. Dead time is 2 cycles after a trigger event.
Example
The following table shows example data with threshold interpolation results:
| Threshold | Correction | Time |
|---|---|---|
| 1194 | 0 | 464 |
| 1195 | 0 | 464 |
| 1196 | -0.9375 | 465 |
| 1220 | -0.75 | 468 |
| 1260 | -0.375 | 474 |
| 1300 | 0 | 480 |
