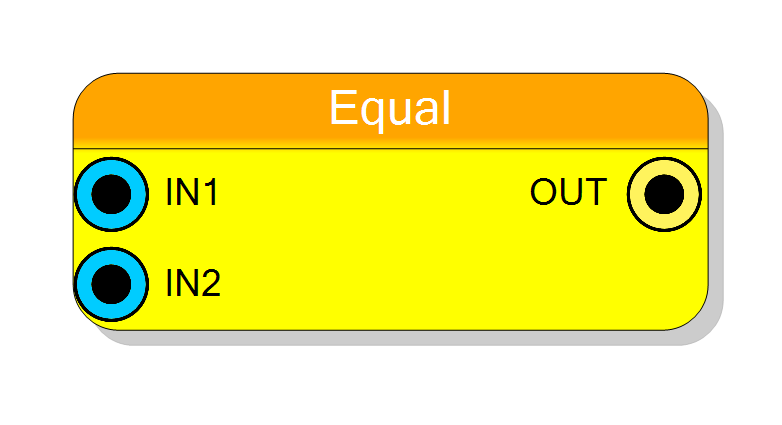

Block Preview

Introduction

This block performs an equality comparison between two input values. The output is a single bit that indicates whether the inputs are identical:

$$ \mathrm{OUT} = \begin{cases} 1 & \text{if } \mathrm{IN1} = \mathrm{IN2} \ 0 & \text{otherwise} \end{cases} $$

The component supports both signed and unsigned data types and offers an optional output register for improved timing performance.

Pin Description

IN1 Input Variable bit BIT VECTOR
First input value for comparison. Width: Input bits (2 to 2048 bits) Interpretation depends on Input sign property (SIGNED/UNSIGNED).
Default: Must be connected
IN2 Input Variable bit BIT VECTOR
Second input value for comparison. Width: Input bits (2 to 2048 bits) Must have the same width as IN1.
Default: Must be connected
OUT Output 1 bit BIT

Comparison result output.

  • ‘1’ when IN1 equals IN2
  • ‘0’ otherwise Width: 1 bit
CLK 1 bit
Clock input (only present when RegisterOutput = Enable). Used to register the comparison result for improved timing.

Properties

Property window

Input bits InputSize

Set the number of bits of the input

Number of bits for each input value. Range: 2-2048 bits. Both inputs must have the same width.

Default: 16

Range: 2 – 2048

Input sign InputSign

Select the sign/unsign of the input

Selects the interpretation of input values: UNSIGNED (default) or SIGNED (two’s complement). For equality comparison, this does not affect the result.

Default: UNSIGNED

Options: UNSIGNED SIGNED

RegisterOutput EnableRegister

Enable one pipeline stage adding a register

Adds an output register stage. Disable (combinational, zero latency) or Enable (registered, 1 clock cycle latency) for timing closure.

Default: Disable

Options: Disable Enable

Functional description

The Equal comparator checks whether two input values are identical. The comparison is performed on the full bit-width of the inputs, and the result is a single boolean bit.

Comparison Operation

For unsigned numbers: $$ \mathrm{OUT} = (\mathrm{IN1} == \mathrm{IN2}) $$

For signed numbers (two’s complement): $$ \mathrm{OUT} = (\mathrm{IN1} == \mathrm{IN2}) $$

Note: For equality comparison, signed and unsigned interpretations produce the same result since we’re comparing bit patterns exactly.

Truth Table

IN1 IN2 OUT
0 0 1
0 1 0
1 0 0
1 1 1

Latency and Timing

The component offers two latency modes:

RegisterOutput Latency (clock cycles)
Disable 0
Enable 1
  • Disable: Purely combinational logic, zero latency.
  • Enable: One register stage added for timing closure in high-speed designs.

Typical use cases

  • Decision logic and conditional branching
  • Pattern matching and detection
  • State machine comparisons
  • Data validation and error checking
  • Equality checks in control paths
