Fixed P. Add
Fixed-point adder. Each operand carries its own Q format: the binary points are aligned automatically, so operands with different scaling can be summed directly without manual shifts.
Introduction
The block computes, in fixed-point arithmetic, $$ \mathrm{OUT} = A + B $$
Every operand and every result carries its own Q format: the number of integer bits, the number of fractional bits and the sign are chosen independently. The binary point is tracked through the whole datapath, so operands with different scaling are aligned automatically – no manual shifting is required, which is the main practical difference with respect to the integer-only arithmetic blocks.

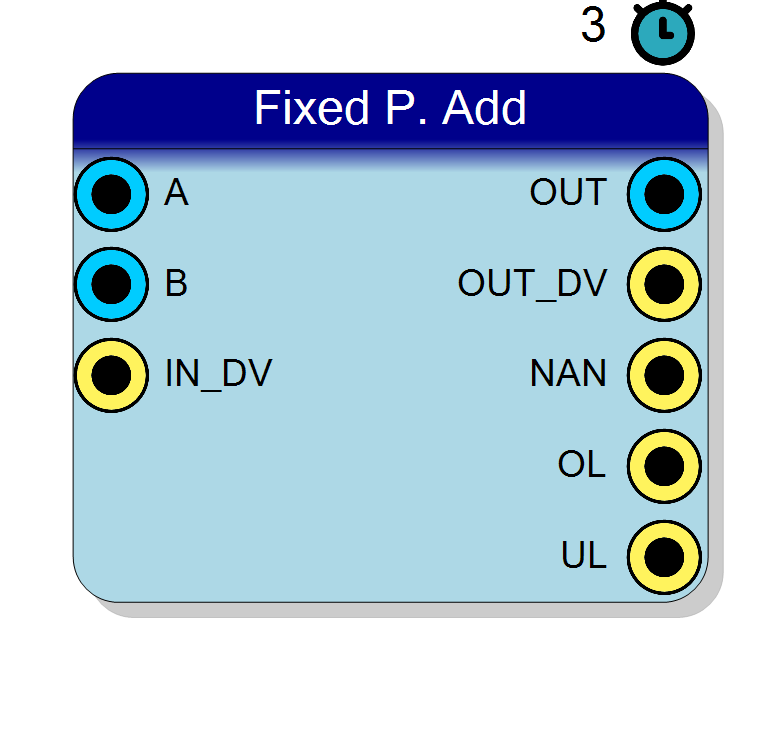

Pin Description
Properties
Number of INTEGER bits of A (the sign, when present, uses one of them).
Number of INTEGER bits of the operandA (1 to 64). When the port is SIGNED one
of these bits carries the sign.
Default: 16
Options: 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64
Number of FRACTIONAL bits of A, i.e. how many bits sit to the right of the binary point. Total width = integer + fractional bits.
Number of FRACTIONAL bits of the operandA (0 to 64), i.e. the bits to the right
of the binary point. Total port width = integer + fractional bits.
Default: 0
Options: 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64
Select whether A is a signed (two’s complement) or unsigned quantity.
Arithmetic type of A:
- SIGNED – two’s complement, range $[-2^{N_{int}-1}, 2^{N_{int}-1})$
- UNSIGNED – non negative only, range $[0, 2^{N_{int}})$
Default: SIGNED
Options: UNSIGNED SIGNED
Number of INTEGER bits of B (the sign, when present, uses one of them).
Number of INTEGER bits of the operandB (1 to 64). When the port is SIGNED one
of these bits carries the sign.
Default: 16
Options: 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64
Number of FRACTIONAL bits of B, i.e. how many bits sit to the right of the binary point. Total width = integer + fractional bits.
Number of FRACTIONAL bits of the operandB (0 to 64), i.e. the bits to the right
of the binary point. Total port width = integer + fractional bits.
Default: 0
Options: 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64
Select whether B is a signed (two’s complement) or unsigned quantity.
Arithmetic type of B:
- SIGNED – two’s complement, range $[-2^{N_{int}-1}, 2^{N_{int}-1})$
- UNSIGNED – non negative only, range $[0, 2^{N_{int}})$
Default: SIGNED
Options: UNSIGNED SIGNED
Number of INTEGER bits of OUT (the sign, when present, uses one of them).
Number of INTEGER bits of the resultOUT (1 to 64). When the port is SIGNED one
of these bits carries the sign.
Default: 17
Options: 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64
Number of FRACTIONAL bits of OUT, i.e. how many bits sit to the right of the binary point. Total width = integer + fractional bits.
Number of FRACTIONAL bits of the resultOUT (0 to 64), i.e. the bits to the right
of the binary point. Total port width = integer + fractional bits.
Default: 0
Options: 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64
Select whether OUT is a signed (two’s complement) or unsigned quantity.
Arithmetic type of OUT:
- SIGNED – two’s complement, range $[-2^{N_{int}-1}, 2^{N_{int}-1})$
- UNSIGNED – non negative only, range $[0, 2^{N_{int}})$
Default: SIGNED
Options: UNSIGNED SIGNED
ROUND: round to nearest when discarding fractional bits. TRUNCATE: drop them (cheaper, adds a DC bias).
- ROUND – round to nearest when discarding fractional bits
- TRUNCATE – discard them (cheaper, introduces a negative bias)
Default: ROUND
Options: TRUNCATE ROUND
YES: clip to the largest representable output value on overflow. NO: wrap around (cheaper, but overflow changes sign).
- YES – clip to the largest representable output value on overflow
- NO – wrap around modulo the output width
Default: YES
Options: NO YES
YES: the block exposes three extra 1-bit outputs, valid together with OUT_DV – NAN (the result is mathematically undefined for the operands presented, or the operand had to be clamped into the convergence domain of the algorithm), OL (overflow: the true result left the output format and was saturated), and UL (underflow: the true result was not zero but requantized to zero). NO: the pins are not generated and the logic that produces them is not synthesised.
Default: YES
Options: NO YES
Fixed latency of the block, in clock cycles. More stages ease timing closure. Ignored in SERIAL mode, where the latency is set by the iteration count.
Fixed latency of the block in clock cycles (1 to 8). Higher values ease timing closure without changing the numerical result.Default: 3
Options: 1 2 3 4 5 6 7 8
Functional description
$$ \mathrm{OUT} = A + B $$
where
A– input operand, format $Q_{A_BitsInt.A_BitsFract}$B– input operand, format $Q_{B_BitsInt.B_BitsFract}$OUT– result, format $Q_{OUT_BitsInt.OUT_BitsFract}$
Fixed-point format
A value with $N_{int}$ integer bits and $N_{frac}$ fractional bits is stored on $N_{int} + N_{frac}$ bits and represents
$$ \text{value} = \frac{\text{raw integer}}{2^{N_{frac}}} $$
When the operand is SIGNED, one of the integer bits carries the sign (two’s complement). Each port is configured independently, so it is perfectly legal to feed a $Q_{16.0}$ signal and a $Q_{2.14}$ coefficient into the same block.
Implementation
Plain fixed-point addition after binary point alignment. To keep the full range give the output one integer bit more than the widest operand; otherwise enable saturation.
Rounding and overflow
Two properties control how the internal full precision result is reduced to the output format:
- Rounding –
ROUNDrounds to nearest when fractional bits are discarded,TRUNCATEsimply drops them. Truncation is cheaper but introduces a systematic negative bias, which accumulates in a long processing chain. - Saturation –
YESclips to the largest representable value,NOwraps around. Wrapping turns a small overflow into a full-scale sign flip, so saturation is strongly recommended for signal processing.
Latency
The PipelineLength property fixes the latency of the block in clock cycles (1 to 8). Raising it helps timing closure at high clock rates and does not change the numerical result. The symbol reports the configured latency.
Typical use cases
- Summing two signals with different scaling
- Adding a bias or offset to a stream
- Accumulating stage results in a processing chain
