DSP - BLOCK MEAN ABS

Introduction link

The Block Mean Abs block chops the input stream into consecutive blocks of N samples and, at the end of each block, publishes the mean absolute deviation of that block about a level $\ell$ driven on the LEVEL pin. With $d_i = x_i - \ell$:

$$ \mathrm{mean_abs} = \frac{1}{N} \sum_{i=0}^{N-1} |d_i| = \frac{1}{N} \sum_{i=0}^{N-1} |x_i - \ell| $$

One subtractor, two accumulators, one subtraction and one shift. No multiplier, no square root, no divider.

N is a runtime input, not a property. You drive the exponent on the EXP pin and the block size is $N = 2^{\mathrm{EXP}}$:

Because N is a power of two, the division by N is an exact arithmetic shift. There is no divider, no reciprocal ROM and no rounding beyond the single final requantisation into your Q format - which is also why the block size can be changed while the design is running, for free.

What it is FOR link

The mean absolute deviation is a robust spread / noise estimate that needs no square root at all. It is the cheap alternative to the standard deviation, and on most channels it is the better one:

• for a Gaussian signal it is a fixed multiple of the standard deviation,

  $$ \mathrm{mean_abs} = \sqrt{\tfrac{2}{\pi}};\sigma \approx 0.7979,\sigma $$

  so a threshold calibrated on one converts to the other by a constant - if you were reaching for Block Std Dev only to get “how noisy is this”, multiply by 1.2533 (or do not bother, and calibrate in these units);

• a single large outlier moves it linearly instead of quadratically, so a stray spike does not blow up the noise estimate the way it does with $\sigma$;

• it costs one adder and a shift instead of a serial multiply plus a serial square root, and its latency is a constant 2 clocks instead of tens.

With LEVEL at 0 - which is what an unconnected pin gives you - it is the mean absolute value of the block, a straightforward activity measure. Feed the block’s own mean back into LEVEL and you get the textbook mean absolute deviation about the mean, delayed by one block, which is the usual way to use it on a stationary signal.

Cost link

One subtractor for $d = x - \ell$, two area accumulators (each (input working width + 1 + Max Block Exponent) bits), one subtraction and one requantising shift in the final state. No multiplier, no divider, no square root, no serial arithmetic.

When to use this instead of Block Statistics link

The all-in-one Block Statistics block is not deprecated and computes this same mean absolute deviation among twenty other statistics. The rule is simple:

• you want several statistics of the SAME block - mean abs and mean and the areas of the same N samples - use Block Statistics. They share one accumulator and one serial tail, so the second and third statistic are nearly free.
• you want exactly one number - use this block. Then you synthesise only that number: the pin list, the logic and the tail are all that the mean absolute deviation needs, and nothing else reaches the synthesiser.

Two Block Statistics blocks side by side would duplicate the accumulators; two per-operator blocks side by side duplicate them too. One Block Statistics block never does.

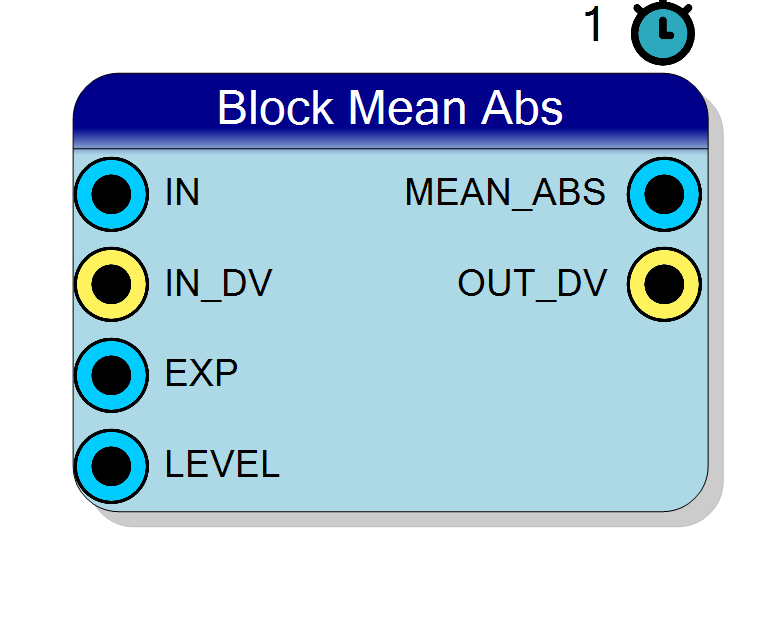

Pin Description link

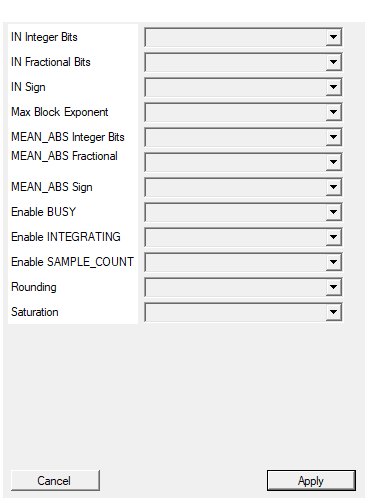

Properties link

Accuracy link

The two accumulators are exact integers, the subtraction that combines them is exact, and the division by N is a shift, so the only error in this block is the single final requantisation into the Q format you chose for the MEAN_ABS pin. There is no accumulated rounding, no truncated intermediate and no approximation anywhere in the datapath.

That is not an aspiration. The host regression (tb/block-ops/run_tb.ps1) demands tolerance ZERO against a Python golden (tb/block-ops/ gen_golden.py) that evaluates the definition above in exact rational arithmetic - not “within 1 LSB”, not “within a few counts”. Any deviation at all fails the build.

How the sum of magnitudes is built link

$\sum |d_i|$ is not a third accumulator. The block keeps the positive and the negative areas of the block,

$$ A^{+} = !!\sum_{d_i > 0}!! d_i ;;(\ge 0), \qquad A^{-} = !!\sum_{d_i < 0}!! d_i ;;(\le 0) $$

and subtracts them in the final state:

$$ \sum_i |d_i| = A^{+} - A^{-} $$

One subtraction instead of an extra accumulator and an absolute-value stage in the sample path. The identity is EXACT, because a sample sitting exactly on the level ($d = 0$) contributes 0 to both areas - so it is neither counted twice nor lost.

The divide by N and the requantisation into your output format are then folded into one shift: the block never materialises the sum and then divides it, it shifts once by $\mathrm{IN_fract} + \mathrm{EXP} - \mathrm{MEAN_ABS_{fract}}$ and rounds once.

The LEVEL pin link

LEVEL is an ordinary input pin in the input Q format, and it is always on the symbol. It defaults to 0 when left unconnected, which makes the result the mean absolute value rather than a deviation about anything.

LEVEL is latched on the first accepted sample of a block, exactly like EXP, and held for that whole block. A mid-block change therefore takes effect on the NEXT block: a block is never split between two levels, and every result is referred to one single, well defined level.

The classic wiring is a feedback loop: take MEAN from a Block Mean block (or from Block Statistics) driven by the same stream and the same EXP, and drive it into this block’s LEVEL. Because the level is latched per block, what you get is the mean absolute deviation about the previous block’s mean - which on a stationary signal is exactly the textbook quantity, one block late.

Accumulation and IN_DV link

IN_DV is the only qualifier. It says “this clock carries a sample”: a sample is accumulated, and counts towards N, exactly on the clocks where IN_DV is high. Clocks with IN_DV low are ignored completely - whatever sits on IN during them cannot corrupt the block - while the tail keeps running, which is what you want: the tail has nothing to do with the input stream.

Unconnected, IN_DV ties to '1', EXP ties to 10 (N = 1024) and LEVEL ties to all zeros, so the block free-runs with nothing wired except IN.

There is deliberately no CE pin. On the all-in-one Block Statistics block an earlier revision had one, and it did not survive synthesis: with nothing but internal state gated by it, Vitis could reason the frozen path away and delete the port from the generated entity while SciCompiler’s wrapper still wired it, which failed a real Vivado build with [VRFC 10-718] formal port <ce> does not exist in entity. The whole per-operator family was built without one. To stall this block, gate its IN_DV - a block that only accumulates on IN_DV has no need to be frozen.

When EXP changes link

EXP is clamped to Max Block Exponent and then latched on the first accepted sample of a block, and held for that whole block. A change therefore takes effect on the NEXT block: a block in progress always finishes against the N it was started with, and a block is never emitted against a different N than the one it was accumulated with. The divide-by-N shift at the end uses the exponent that was latched, not whatever happens to be on the pin when the result comes out.

Timing: the latency contract link

OUT_DV pulses for one clock, L clocks after the clock on which the N-th sample of the block was accepted - not when that sample arrives. MEAN_ABS is updated on that same clock and on no other. For this block

$$ L = 2 $$

and it is a constant: there is no serial arithmetic here at all - the two accumulators run at one sample per clock, and the final state is one subtraction plus one requantising shift - so L does not depend on the input width, on the output width or on EXP. The two clocks are one to enter the final state and one to present the registered result.

The rule that governs the whole family is that the tail of one block must finish before the next block completes, i.e.

$$ 2^{\mathrm{EXP}} \ge L $$

If a block completes while the previous tail is still running, that block’s result is DROPPED: no OUT_DV for it, the accumulators are unaffected and later blocks come out correctly, but a result is silently skipped. There is no error pin for it.

With $L = 2$ that condition is $2^{\mathrm{EXP}} \ge 2$, i.e. EXP $\ge$ 1, so it cannot bite here: the only value that violates it is EXP = 0, a block of a single sample. The blocks where this rule really matters are the ones with a serial tail - Block RMS, Block Variance, Block Std Dev and Block Crest Factor, whose L runs to tens of clocks and whose minimum usable exponent the compiler prints in the compilation log. It is one more reason to prefer the mean absolute deviation over the standard deviation when a noise number is all you need: short blocks stay usable.

Knowing where the block is: BUSY, INTEGRATING and SAMPLE_COUNT link

Three optional status outputs, all defaulting to NO. They answer different questions:

Every output of this block is a register, so each status bit is observed on the clock after the event that sets it:

• INTEGRATING rises on the clock after the FIRST sample of a block is accepted and falls on the clock after the N-th - it is high exactly while the block is ACCUMULATING.
• BUSY covers the accumulation and the tail. It rises with INTEGRATING, stays high across the tail, and its LAST HIGH CLOCK IS THE OUT_DV PULSE; it falls on the clock after.
• On a continuous stream the next block starts before the previous tail ends, so BUSY never drops and INTEGRATING dips for exactly one clock per block boundary - which makes it a free block marker.
• SAMPLE_COUNT is a fixed 32 bits and reads 1 after the first accepted sample, N after the N-th. It is NOT cleared at the block end: it HOLDS N through the tail and past OUT_DV, until the first sample of the next block takes it back to 1. So on the OUT_DV clock it reads the length of the block being presented - which is the useful thing to latch alongside the result. Only RESET clears it to 0.

Q formats link

IN, LEVEL and MEAN_ABS carry fixed point formats in the usual convention of the Fixed P. family - LEVEL shares the input format, since it is compared with samples. The result is requantised into the MEAN_ABS format with the selected rounding (nearest / truncate) and overflow policy (saturate / wrap); saturation is symmetric for signed formats, as everywhere else in the toolchain.

Sizing is easy here: the mean absolute deviation is in the units of the input and can never exceed the largest representable magnitude of a sample, so the input format is always safe for the output. It is never negative, so the default format is UNSIGNED, which buys one bit; choose SIGNED only if the number has to feed a signed datapath downstream. Ask for more fractional bits than the input has if you want sub-LSB resolution on the noise estimate - the accumulators carry those bits exactly, they are simply discarded by the final shift if you do not ask for them.

Verification link

The core is regression tested by a host-side csim harness (tb/block-ops/run_tb.ps1) that runs one simulated clock at a time and follows OUT_DV. The expected values come from tb/block-ops/gen_golden.py, which evaluates $\sum|x-\ell|/N$ in exact rational arithmetic and shares no algorithm with the core; the tolerance is 0. Mean abs coverage includes pseudo-random input at level 0, a non-zero level, a signal with samples sitting exactly on the level (the case that pins the “contributes 0 to both areas” convention and makes the pos-minus-neg identity exact), a LEVEL pin that changes half way through every block in both directions - which is what proves the per-block latch - and a fractional output format. The status outputs are checked clock by clock against the contract above. A cross-check compiles this core and the all-in-one block_stats.cpp into the same binary, drives them with identical stimulus, and compares the two clock by clock.
