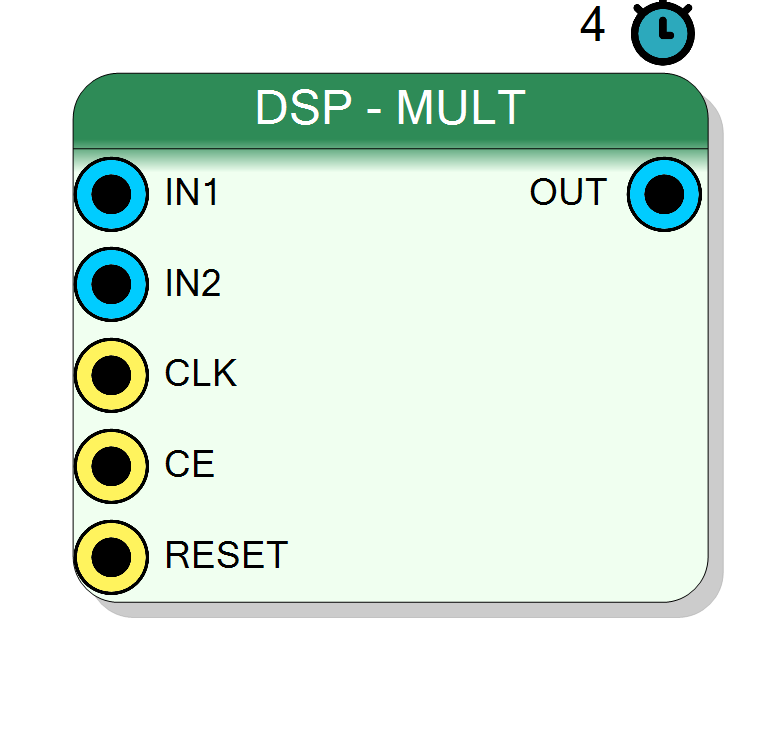

Block Preview

Introduction

The block performs multiplication of two input streams on every rising edge of CLK. When CE = 1, the multiplier performs

$$ \mathrm{OUT}(n) ;=; \mathrm{IN1}(n) \times \mathrm{IN2}(n), $$

where the arithmetic is signed or unsigned according to the Input sign 1 and Input sign 2 properties. A synchronous active-high RESET clears the internal pipeline to zero. The internal datapath is implemented with the Xilinx mult_gen IP core; the Latency property lets you trade off clock frequency versus latency by inserting 1, 2, 4, 8, 12 or 16 pipeline stages.

Pin Description

IN1 Input Variable bit BIT VECTOR
First integer input operand. Width: Input bits 1 (2 – 256). Arithmetic type is set by Input sign 1.
Default: Must be connected
IN2 Input Variable bit BIT VECTOR
Second integer input operand. Width: Input bits 2 (2 – 256). Arithmetic type is set by Input sign 2.
Default: Must be connected
CLK Input 1 bit BIT
Global clock. Every rising edge triggers a new multiplication cycle and propagates pipeline registers.
Default: Default Board Clock
CE Input 1 bit BIT
Clock Enable, active high. When CE = 0 the multiplier holds its current value; pipeline registers keep their previous state.
Default: 1
RESET Input 1 bit BIT
Synchronous reset, active high. Forces all pipeline stages to zero on the next rising clock edge.
Default: Default Board Reset
OUT Output 64 bit BIT VECTOR
Product of the input samples: OUT = IN1 × IN2. Width: Input bits 1 + Input bits 2. Valid data appear after Latency clock cycles.

Properties

Property window

Input bits 1 InputSizeA

Set the number of bits of the input

Number of bits of IN1 ($N_{\text{in1}}$). Range 2 – 256. Changing this value re-configures the underlying mult_gen core and may update synthesis results.

Default: 32

Range: 2 – 256

Input bits 2 InputSizeB

Set the number of bits of the input

Number of bits of IN2 ($N_{\text{in2}}$). Range 2 – 256. Changing this value re-configures the underlying mult_gen core and may update synthesis results.

Default: 32

Range: 2 – 256

Input sign 1 InputSignA

Select the sign/unsign of the input

Selects arithmetic type of IN1:

  • UNSIGNED → non-negative integers, wrap-around at $2^{N}-1$.
  • SIGNED → two’s-complement, range $[-2^{N-1},,2^{N-1}-1]$.

Default: UNSIGNED

Options: UNSIGNED SIGNED

Input sign 2 InputSignB

Select the sign/unsign of the input

Selects arithmetic type of IN2:

  • UNSIGNED → non-negative integers, wrap-around at $2^{N}-1$.
  • SIGNED → two’s-complement, range $[-2^{N-1},,2^{N-1}-1]$.

Default: UNSIGNED

Options: UNSIGNED SIGNED

Latency Latency

Number of pipeline stages

Number of pipeline stages inserted into the multiplier datapath. Allowed values: 1, 2, 4, 8, 12, 16. Directly mapped to C_LATENCY / Latency parameters, hence Total delay = Latency × T_CLK. Higher values increase maximum clock frequency at the cost of latency.

Default: 4

Options: 1 2 4 8 12 16

Functional description

The component realizes a pipelined two-input multiplier:

$$ y[n] = x_1[n] \times x_2[n], $$

with

  • x_1[n] → IN1
  • x_2[n] → IN2
  • y[n] → OUT

Both input widths are user-selectable. The output width is automatically set to Input bits 1 + Input bits 2 to accommodate the full product without overflow. Arithmetic overflow follows the native behaviour of VHDL signed/unsigned types (modulo $2^{\text{width}}$).

Mathematical background

For full-width multiplication without truncation:

$$ N_\text{out} = N_{\text{in1}} + N_{\text{in2}} $$

where $N_{\text{in1}}$ and $N_{\text{in2}}$ are the input bit widths.

The maximum output value depends on the arithmetic type:

$$ y_\text{max} = 2^{N_\text{out}-1}-1 \quad(\text{signed}),\qquad y_\text{max} = 2^{N_\text{out}}-1 \quad(\text{unsigned}) $$

Timing

The IP inserts a Latency-dependent pipeline:

Latency property Internal stages Total clock cycles from inputs to OUT
1 1 1
2 2 2
4 4 4
8 8 8
12 12 12
16 16 16

Therefore the deterministic delay is T_delay = Latency × T_CLK.

Typical use cases

  • Digital signal processing pipelines
  • Complex number multiplication
  • Scaling operations in SDR front-ends
  • Digital filters (coefficient multiplication)
  • Generic DSP pipelines requiring high-speed multiplication

Waveform example

Example with pipeline delay set to 4.
