DSP - BLOCK STD DEV

Introduction link

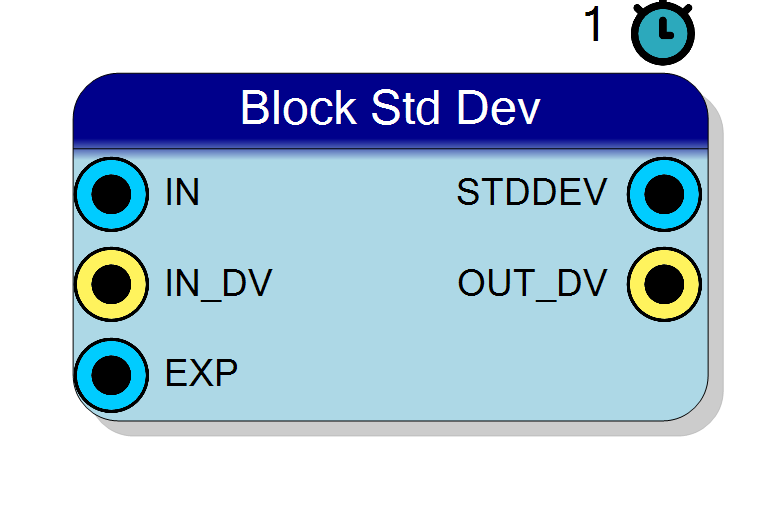

The Block Std Dev block chops the input stream into consecutive blocks of N samples and, at the end of each block, publishes the standard deviation of that block:

$$ S_1 = \sum_{i=0}^{N-1} x_i , \qquad S_2 = \sum_{i=0}^{N-1} x_i^2 $$

$$ \sigma = \sqrt{\mathrm{var}} = \sqrt{\overline{x^2} - \mathrm{mean}^2} = \sqrt{\frac{S_2}{N} - \left(\frac{S_1}{N}\right)^{!2}} $$

N is a runtime input, not a property. You drive the exponent on the EXP pin and the block size is $N = 2^{\mathrm{EXP}}$:

Because N is a power of two, every division by N is an exact arithmetic shift. There is no divider and no reciprocal ROM, which is also why the block size can be changed while the design is running, for free.

What it is FOR link

$\sigma$ is the spread of the block about its own mean, in the units of the input and with the DC level removed. It is the number you report when the channel noise has to be quoted in millivolts or ADC counts, the one a slow control loop compares against a specification, and the one an operator expects to see on a display.

Note the difference from Block RMS: the RMS includes the DC level. A constant signal at level $c$ has an RMS of $|c|$ and a standard deviation of 0. If you want “how big is this signal”, take the RMS; if you want “how noisy is this signal”, take $\sigma$.

Two cheaper answers to consider first link

If you only need to COMPARE or THRESHOLD spreads, use Block Variance. It is strictly cheaper AND strictly exact. The square root is monotone, so thresholding the variance against the SQUARE of your threshold gives exactly the same decisions - with no root, no root guard bits and a much shorter tail (Block Variance stops at the VAR state this block passes through on its way to the root). Take $\sigma$ only when the number itself has to be reported in input units.

If you only want a robust “how noisy is this” number, consider Block Mean Abs. It costs no multiplier and no square root, its tail is a constant $L = 2$, and for a Gaussian signal it reads

$$ \overline{|x - \bar{x}|} = \sqrt{\tfrac{2}{\pi}},\sigma \approx 0.7979,\sigma $$

so it is a scaled standard deviation for Gaussian noise - and, unlike $\sigma$, a single large outlier moves it linearly instead of quadratically.

When to use this instead of Block Statistics link

The all-in-one Block Statistics block is not deprecated and computes this same standard deviation among twenty other statistics. The rule is simple:

• you want several statistics of the SAME block - $\sigma$ and RMS and mean of the same N samples - use Block Statistics. They share one accumulator pair and one serial tail, and in particular the RMS root and the $\sigma$ root there share one compare-subtract stage run back to back. Two per-operator blocks would build two.
• you want exactly one number - use this block. Then you synthesise only that number: the pin list, the two accumulators, the serial squarer, the root and the tail are all that $\sigma$ needs, and nothing else reaches the synthesiser.

Two Block Statistics blocks side by side would duplicate the accumulators; two per-operator blocks side by side duplicate them too. One Block Statistics block never does.

Pin Description link

Properties link

Accuracy: exact in, 1 LSB out link

This block is Block Variance with the serial square root of Block RMS on its output, and everything both of those say applies here.

The variance numerator is computed from the exact integer identity, not from two truncated quotients:

$$ \mathrm{var_num} = N,S_2 - S_1^2 , \qquad \mathrm{var} = \frac{\mathrm{var_num}}{N^2} $$

where $N S_2$ is a shift, $S_1 \cdot S_1$ is an exact integer square computed serially, and the division by $N^2$ is a shift again. So the value fed to the square root carries NO error at all. By Cauchy-Schwarz,

$$ N,S_2 - S_1^2 = \sum_{i<j} (x_i - x_j)^2 \ \ge\ 0 $$

always, which is what keeps a negative radicand out of the root and what makes an UNSIGNED STDDEV output format safe - the default.

The root is then pre-scaled by $2^{2\cdot\mathrm{SQG}}$ with $\mathrm{SQG} = 4$, so the digit recurrence delivers

$$ \mathrm{root} = \sigma \cdot 2^{\mathrm{SQG}} = \sqrt{\mathrm{var_num} \cdot 2^{,2(\mathrm{STDDEV_{fract}}+\mathrm{SQG}) - 2,\mathrm{IN_{fract}} - 2,\mathrm{EXP}}} $$

i.e. $\sigma$ with 4 guard bits below the output LSB. The recurrence truncates and the final requantisation rounds, so the total error is bounded by

$$ |\sigma_{\mathrm{dut}} - \sigma_{\mathrm{exact}}| \le \frac{2}{16} + \frac{1}{2} < 1\ \mathrm{LSB} $$

and the host regression allows exactly 1 LSB - never more. That single LSB is entirely the root’s: it is not an accumulation of upstream error, because there is no upstream error. (Block Variance, which stops one state earlier, is checked at tolerance ZERO.)

The pre-scaling shift saturates: a radicand that does not fit means the root does not fit either, which is precisely the output saturation you asked for with the Saturation property.

Accumulation and IN_DV link

IN_DV is the only qualifier. It says “this clock carries a sample”: a sample is added to $S_1$, squared into $S_2$, and counts towards N, exactly on the clocks where IN_DV is high. Clocks with IN_DV low are ignored completely - whatever sits on IN during them cannot corrupt the block - while the serial tail keeps running, which is what you want: the tail has nothing to do with the input stream.

Unconnected, IN_DV ties to '1' and EXP ties to 10 (N = 1024), so the block free-runs with nothing wired except IN.

There is deliberately no CE pin. On the all-in-one Block Statistics block an earlier revision had one, and it did not survive synthesis: with nothing but internal state gated by it, Vitis could reason the frozen path away and delete the port from the generated entity while SciCompiler’s wrapper still wired it, which failed a real Vivado build with [VRFC 10-718] formal port <ce> does not exist in entity. The whole per-operator family was built without one. To stall this block, gate its IN_DV - a block that only accumulates on IN_DV has no need to be frozen, and there is no reason to stall the tail.

When EXP changes link

EXP is clamped to Max Block Exponent and then latched on the first accepted sample of a block, and held for that whole block. A change therefore takes effect on the NEXT block: a block in progress always finishes against the N it was started with, and a block is never emitted against a different N than the one it was accumulated with. The latched exponent drives the $N S_2$ shift, the $N^2$ scaling of the radicand and the number of serial multiply steps, so the arithmetic and the timing of a block are always self-consistent.

Timing: the serial tail link

Why it is serial link

A block has a whole block period of slack after its N-th sample: the next result is not due for another $2^{\mathrm{EXP}}$ clocks. So there is no reason to build a parallel datapath for the post-accumulation arithmetic. II=1 is only needed while ACCUMULATING - one sample per clock, one multiply, two adds - and the tail has all the time in the world.

This is the only block of the family that runs both serial engines, back to back:

• $S_1 \cdot S_1$ is ONE reused shift-add stage stepped once per clock, consuming one bit of $|S_1|$ per clock, $\mathrm{IN_SW} + \mathrm{EXP}$ steps;
• the square root is ONE reused compare-subtract stage stepped once per clock, producing one result bit per clock, $\mathrm{RTW}$ steps.

The cost is CLOCKS, not multipliers and not comparators: the only multiplier in the whole block is the $x \cdot x$ during accumulation, and there is no DSP in the tail.

The latency contract link

OUT_DV pulses for one clock when the tail COMPLETES, L clocks after the clock on which the N-th sample of the block was accepted - not when that sample arrives. STDDEV is updated on that same clock and on no other. The state walk is IDLE -(go)-> MUL x (IN_SW + EXP) -> VAR -> LD -> SQRT x RTW -> FIN -> IDLE with OUT_DV registered, so

$$ \mathrm{RTW} = \mathrm{STDDEV\ width} + \mathrm{SQG} + 1 = \mathrm{STDDEV\ width} + 5 $$

$$ L = 2 + (\mathrm{IN_SW} + \mathrm{EXP} + 1) + (\mathrm{RTW} + 1) $$

where $\mathrm{IN_SW}$ is the signed working width of a sample: the input width, +1 if the input is UNSIGNED (a sample has to be promoted to signed before it can be accumulated). Both terms are user visible: a WIDE STDDEV format costs root steps and a LONG BLOCK costs multiply steps.

Block Std Dev and Block Variance are the only blocks in the family whose latency depends on the RUNTIME exponent. A longer block makes $|S_1|$ wider and therefore costs more multiply steps. But a longer block also gives more slack: the block grows exponentially in EXP and the tail only linearly, so the $2^{\mathrm{EXP}} \ge L$ constraint gets easier as EXP grows, not harder.

The 2^EXP >= L rule link

The tail of one block must finish before the next block completes:

$$ 2^{\mathrm{EXP}} \ge L $$

If a block completes while the previous tail is still running, that block’s result is DROPPED. A completed block is only handed to the tail when the tail is IDLE, so: no OUT_DV for it, the accumulators are unaffected, later blocks come out correctly - and there is no error pin. A result is simply skipped. This is the block of the family where the rule bites hardest, because it is the block with the longest tail.

Three things guard against it, and one hole remains:

• the property validator refuses a configuration whose minimum exponent exceeds Max Block Exponent, and tells you the tail length and the minimum;
• CompileHDL prints the tail length and the minimum usable EXP into the compilation log for every placement;
• but EXP is a PIN. Nothing can stop a user driving it below the minimum at RUN TIME. If you make EXP runtime programmable from a register interface, clamp it in your own logic - the block will not complain, it will just stop emitting some results.

Worked numbers link

Take the first row in full. An 8 bit signed input gives $\mathrm{IN_SW} = 8$; the default STDDEV format (16 integer bits, 0 fractional bits, unsigned) gives $\mathrm{RTW} = 16 + 5 = 21$. So

$$ L = 2 + (8 + \mathrm{EXP} + 1) + (21 + 1) = 33 + \mathrm{EXP} $$

At $\mathrm{EXP} = 5$ that is $L = 38$ and $2^5 = 32 < 38$, so it does not fit; at $\mathrm{EXP} = 6$ it is $L = 39$ and $2^6 = 64 \ge 39$, so it does. The minimum usable EXP is 6, a block of 64 samples - and every larger exponent fits too. With the default $\mathrm{EXP} = 10$ the tail is 43 clocks inside a 1024-sample block: still over 95% idle.

Knowing where the block is: BUSY, INTEGRATING and SAMPLE_COUNT link

Three optional status outputs, all defaulting to NO. They answer different questions:

Every output of this block is a register, so each status bit is observed on the clock after the event that sets it:

• INTEGRATING rises on the clock after the FIRST sample of a block is accepted and falls on the clock after the N-th - it is high exactly while the block is ACCUMULATING, and never during the tail.
• BUSY covers the accumulation and the serial tail. It rises with INTEGRATING, stays high across the tail, and its LAST HIGH CLOCK IS THE OUT_DV PULSE; it falls on the clock after. BUSY high with INTEGRATING low therefore means “the samples are all in, I am computing” - and on this block that phase is long enough to be genuinely useful.
• On a continuous stream the next block starts before the previous tail ends, so BUSY never drops and INTEGRATING dips for exactly one clock per block boundary - which makes it a free block marker. The two separate visibly only when the input pauses for longer than the tail.
• SAMPLE_COUNT is a fixed 32 bits and reads 1 after the first accepted sample, N after the N-th. It is NOT cleared at the block end: it HOLDS the final count N through the whole tail and past OUT_DV, until the first sample of the next block takes it back to 1. So on the OUT_DV clock it reads the length of the block being presented - which is the useful thing to latch alongside the result. Only RESET clears it to 0.

Q formats link

Both data ports carry their own fixed point format (integer bits, fractional bits, sign), the same convention as the Fixed P. family. The result is requantised into the STDDEV format with the selected rounding (nearest / truncate) and overflow policy (saturate / wrap); saturation is symmetric for signed formats, as everywhere else in the toolchain.

Sizing: $\sigma$ is in the units of the input and can never exceed the peak-to-peak span of the block, so the input integer bits are always enough. It is never negative, so UNSIGNED buys one bit - which is the default. The total STDDEV width is what sizes the serial root ($\mathrm{RTW} = \mathrm{width} + 5$ steps), so ask for fractional bits when you want sub-LSB noise resolution, but do not make the format wider than you need: every extra bit is one more clock of tail and one step closer to the minimum usable exponent.

Cost link

One multiplier for $x^2$ (unavoidable at one sample per clock), two accumulators ($S_1$ at $\mathrm{IN_SW} + $ Max Block Exponent bits, $S_2$ at $2,\mathrm{IN_SW} - 1 + $ Max Block Exponent), one shift-add stage, one compare-subtract stage with a radicand, a remainder and a root register, two barrel shifters and one requantiser. No divider, no second multiplier and no DSP in the tail. Compared with Block Variance, the extra cost of the square root is one compare-subtract stage and $\mathrm{RTW} + 1$ clocks.

Verification link

The core is regression tested by a host-side csim harness (tb/block-ops/run_tb.ps1) that runs one simulated clock at a time and follows OUT_DV. The expected values come from tb/block-ops/gen_golden.py, which evaluates $\sqrt{\overline{x^2} - \mathrm{mean}^2}$ in exact rational arithmetic and shares no algorithm with the core; the tolerance is 1 LSB and not one count more. Std Dev coverage includes pseudo-random input, a constant block ($\sigma$ exactly zero), a sine with a fractional output format, an EXP that alternates between blocks - which changes the LENGTH of the tail from block to block, since the multiply steps follow the exponent - and IN_DV gaps inside the accumulation. The status outputs are checked clock by clock against the contract above. A cross-check compiles this core and the all-in-one block_stats.cpp into the same binary, drives them with identical stimulus, and compares the two clock by clock; tb/block-ops/port_check.py preprocesses the real core to prove the symbol’s pin list matches the entity’s port list for every enable combination, and the harness #errors at COMPILE TIME if the tail formula in the .cpp, in the plugin and in the generator ever disagree.
