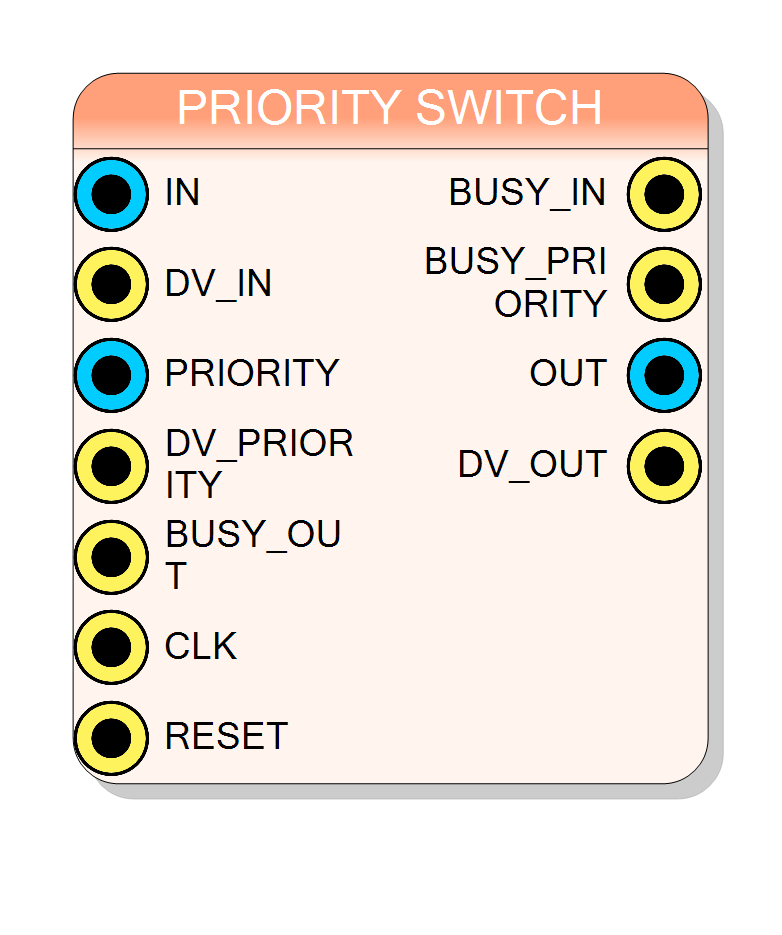

Block Preview

Introduction

The Priority Switch block is a two-input, one-output word switch where one input has hard priority over the other. It is designed to insert synchronisation or reference words (typically a “T0” absolute timestamp) into a stream of regular data words (typically relative timestamps of the same T0) that are being pushed toward a downstream FIFO or list.

Two input handshakes:

  • IN + DV_IN + BUSY_IN - the regular data stream.
  • PRIORITY + DV_PRIORITY + BUSY_PRIORITY - the synchronisation word.

One output handshake:

  • OUT + DV_OUT + BUSY_OUT - toward the downstream module.

Both inputs share the same Word Size (set by a property).

Pin Description

IN Input 2-1024 bit BIT VECTOR
Regular data input. Width: Word Size bits. Captured when DV_IN = ‘1’. Silently dropped while BUSY_IN = ‘1’.
Default: Must be connected
DV_IN Input 1 bit BIT
Data Valid for the regular IN channel. Assert HIGH for one clock cycle to publish a word on IN. Must be held low while BUSY_IN is HIGH to avoid data loss.
Default: Must be connected
PRIORITY Input 2-1024 bit BIT VECTOR
Priority data input (e.g. T0 synchronisation word). Width: Word Size bits (same as IN). Captured when DV_PRIORITY = ‘1’.
Default: Must be connected
DV_PRIORITY Input 1 bit BIT
Data Valid for the PRIORITY channel. Assert HIGH for one clock cycle to publish a word on PRIORITY. Behaviour when BUSY_PRIORITY is HIGH depends on the collision policy.
Default: Must be connected
BUSY_OUT Input 1 bit BIT
Back-pressure from the downstream module. When HIGH, the block cannot forward anything and both input latches keep their content. When LOW, PRIORITY is forwarded first, then IN. Tie LOW if the downstream is never busy.
CLK Input 1 bit BIT
System clock input. All operations are synchronous to this clock. Default: Acquisition clock.
Default: Default Board Clock
RESET Input 1 bit BIT
Synchronous, active-high reset. Clears all internal latches and pending flags. Default: Global reset.
Default: Default Board Reset
BUSY_IN Output 1 bit BIT

Back-pressure toward the source of the IN channel.

  • HIGH (1): either the IN latch is full OR the downstream is asserting BUSY_OUT (nothing can leave the block). In both cases the source should stop sending on IN.
  • LOW (0): ready to accept a new IN word.
BUSY_PRIORITY Output 1 bit BIT

Back-pressure toward the source of the PRIORITY channel.

  • HIGH (1): either the PRIORITY latch is full OR the downstream is asserting BUSY_OUT. Depending on the collision policy, further DV_PRIORITY pulses will still be dropped (Keep old) or will overwrite the pending word (Overwrite with new) if they arrive.
  • LOW (0): ready to accept a new PRIORITY word.
OUT Output 2-1024 bit BIT VECTOR
Merged output data. Contains a word coming either from IN or from PRIORITY. Width: Word Size bits (matches both inputs).
DV_OUT Output 1 bit BIT
Data Valid output. Asserted HIGH for one clock cycle when OUT holds a valid word being forwarded to the downstream module.

Properties

Property window

Word Size (bits) WordSize

Width of the IN, PRIORITY and OUT data ports in bits

Width in bits of the IN, PRIORITY and OUT data ports. Range: 2 to 1024, default 32. Changing this value re-designs the symbol (port widths change).

Default: 32

Range: 2 – 1024

Priority collision policy PriorityOverwrite

What to do when a new PRIORITY word arrives while the previous one is still waiting to be forwarded

Policy applied when a new PRIORITY word arrives while the previous PRIORITY word is still waiting to be forwarded downstream.

  • Keep old (default): the new PRIORITY word is dropped; the older one is preserved and eventually forwarded.
  • Overwrite with new: the new PRIORITY word replaces the older one in the latch; the older one is lost.

This policy applies only to the PRIORITY channel. On the IN channel new words are always dropped while BUSY_IN is high.

Default: Keep old

Options: Keep old Overwrite with new

Usage

Motivation

In systems where a downstream list holds photon (or generic event) timestamps referenced to a common absolute reference (a “T0” tick), the T0 word must reach the list before any of the events that follow it. Otherwise the software reader will attribute those events to the wrong T0.

The Priority Switch acts as a gate:

    IN (regular events)     ─────┐
  DV_IN ──────────────────────►│
                               │
                        ┌──────▼──────┐
                        │  PRIORITY   │
                        │   SWITCH    ├─── OUT ───► downstream list
                        │             ├─── DV_OUT
                        └──────▲──────┘
                               │
  PRIORITY (T0 word)  ─────────┘
  DV_PRIORITY ────────────────►

As long as a PRIORITY word is waiting to be forwarded, no IN word can pass through, guaranteeing correct ordering downstream.

Handshake rules

Both input handshakes follow the standard SCI-Compiler DV / BUSY protocol:

  1. Source raises DV_x = ‘1’ for one clock cycle to publish a word.
  2. The block latches the word and, from the next clock cycle, raises BUSY_x = ‘1’ to tell the source not to send another word until the latch has been drained.
  3. When the latch is drained (the word has been forwarded to OUT), the block drops BUSY_x, so the source is free to send again.

In addition, BUSY_IN and BUSY_PRIORITY are also forced HIGH the moment the downstream asserts BUSY_OUT, even if the corresponding latch is still empty. Rationale: while the block cannot forward anything it makes no sense to keep accepting upstream traffic; the flag rise stops the source before it can push a burst that would fill the switch and then lose the tail. When BUSY_OUT drops, both BUSY_x flags fall back to reflect the state of their respective latches.

Arbitration

On every clock the block checks the internal latches in this order:

  1. PRIORITY pending and BUSY_OUT = ‘0’ → forward PRIORITY, clear the PRIORITY latch.
  2. Otherwise IN pending and BUSY_OUT = ‘0’ → forward IN, clear the IN latch.
  3. Otherwise no output (DV_OUT = ‘0’).

PRIORITY always wins over IN. IN never overtakes PRIORITY.

Simultaneous arrival

If both DV_IN and DV_PRIORITY fire on the same clock cycle:

  1. Both words are latched into their respective slots.
  2. Both BUSY_IN and BUSY_PRIORITY go high the next cycle.
  3. As soon as BUSY_OUT is low the PRIORITY word is forwarded first.
  4. The next cycle the IN word is forwarded and BUSY_IN drops.

So even in a collision the PRIORITY word wins with a small fixed latency (typically 2 clocks) and the IN word follows immediately after.

Collision on PRIORITY

If a new PRIORITY word arrives while the previous PRIORITY word is still waiting in the latch (BUSY_OUT was blocking, so nothing has been forwarded yet), the behaviour is compile-time selectable via the Priority collision policy property:

Policy Effect
Keep old The new PRIORITY word is silently dropped, the old one wins the output slot.
Overwrite with new The new PRIORITY word replaces the old one in the latch, the old one is lost.

For IN there is no collision policy: while the IN latch is full, a new IN word is always dropped (upstream is expected to obey BUSY_IN).

Timing

All outputs are registered and update on the rising edge of clk.

Typical minimum latency (source to downstream) is 2 clock cycles (1 for latching, 1 for output). The latency grows if BUSY_OUT is asserted or if a collision is being resolved.

Reset

Reset is active-high and synchronous. When RESET = ‘1’ all internal latches, pending flags and outputs are cleared. BUSY_IN, BUSY_PRIORITY and DV_OUT all go low.

Resources & Timing

  • Latency: 2 clock cycles minimum, longer under BUSY_OUT or collisions

  • Throughput: Up to 1 word per clock cycle when the downstream is not busy

Fully synchronous, no external primitives, no FIFO. Uses two data latches (one per input channel) and two 1-bit pending flags. Resource usage scales with WordSize.
