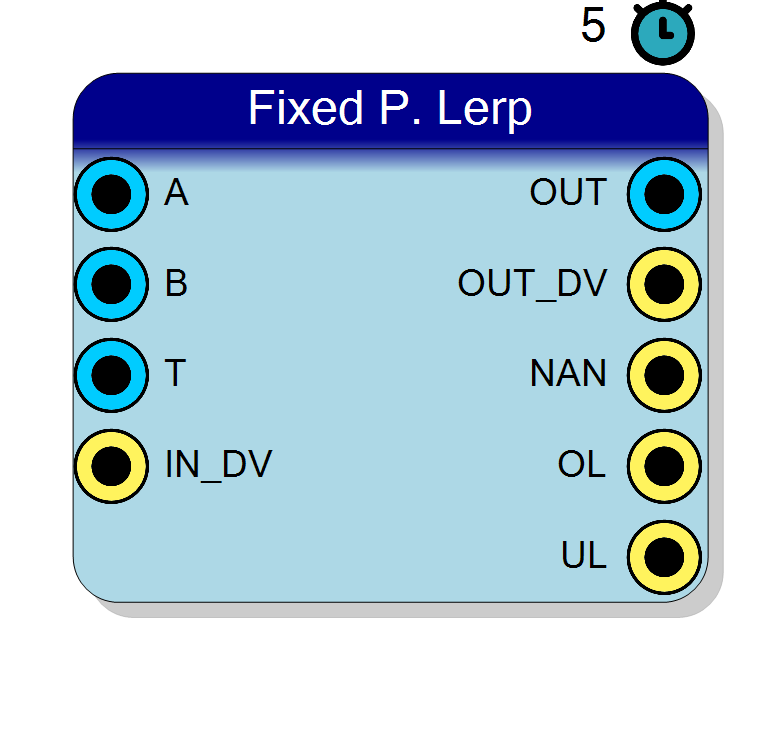

Block Preview

Introduction

The block computes, in fixed-point arithmetic, $$ \mathrm{OUT} = A + (B - A),T $$

Every operand and every result carries its own Q format: the number of integer bits, the number of fractional bits and the sign are chosen independently. The binary point is tracked through the whole datapath, so operands with different scaling are aligned automatically – no manual shifting is required, which is the main practical difference with respect to the integer-only arithmetic blocks.

Input domain. T is expected in the range [0, 1]; values outside that range extrapolate rather than interpolate.

Pin Description

A Input Variable bit BIT VECTOR
Input operand, format Q(A Integer Bits . A Fractional Bits).
Default: Must be connected
B Input Variable bit BIT VECTOR
Input operand, format Q(B Integer Bits . B Fractional Bits).
Default: Must be connected
T Input Variable bit BIT VECTOR
Input operand, format Q(T Integer Bits . T Fractional Bits).
Default: Must be connected
IN_DV Input 1 bit BIT
Input data valid, active high. Tie to ‘1’ for free running operation.
OUT Output 16 bit BIT VECTOR
Result, format Q(OUT Integer Bits . OUT Fractional Bits).
OUT_DV Output 1 bit BIT
Output data valid, asserted when the result is available.
NAN Output 1 bit BIT
Result undefined, asserted together with OUT_DV for the sample it qualifies. No operand makes this operation undefined, so this pin stays low here; it exists because every Fixed P. block presents the same status interface. NAN suppresses OL and UL.
OL Output 1 bit BIT
Overflow: the true result left the OUT format and was saturated - wrapped instead, when Enable Saturation is NO. Asserted together with OUT_DV, mutually exclusive with UL, and suppressed by NAN.
UL Output 1 bit BIT
Underflow: the true result was NOT zero but requantised to zero in the OUT format, i.e. the whole value was lost. Asserted together with OUT_DV, mutually exclusive with OL, and suppressed by NAN.
CLK
Processing clock, connected to the acquisition clock.
RESET
Global synchronous reset, active high.

Properties

Property window

A Integer Bits A_BitsInt

Number of INTEGER bits of A (the sign, when present, uses one of them).

Number of INTEGER bits of the operand A (1 to 64). When the port is SIGNED one of these bits carries the sign.

Default: 16

Options: 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64

A Fractional Bits A_BitsFract

Number of FRACTIONAL bits of A, i.e. how many bits sit to the right of the binary point. Total width = integer + fractional bits.

Number of FRACTIONAL bits of the operand A (0 to 64), i.e. the bits to the right of the binary point. Total port width = integer + fractional bits.

Default: 0

Options: 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64

A Sign A_Sign

Select whether A is a signed (two’s complement) or unsigned quantity.

Arithmetic type of A:

  • SIGNED – two’s complement, range $[-2^{N_{int}-1}, 2^{N_{int}-1})$
  • UNSIGNED – non negative only, range $[0, 2^{N_{int}})$

Default: SIGNED

Options: UNSIGNED SIGNED

B Integer Bits B_BitsInt

Number of INTEGER bits of B (the sign, when present, uses one of them).

Number of INTEGER bits of the operand B (1 to 64). When the port is SIGNED one of these bits carries the sign.

Default: 16

Options: 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64

B Fractional Bits B_BitsFract

Number of FRACTIONAL bits of B, i.e. how many bits sit to the right of the binary point. Total width = integer + fractional bits.

Number of FRACTIONAL bits of the operand B (0 to 64), i.e. the bits to the right of the binary point. Total port width = integer + fractional bits.

Default: 0

Options: 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64

B Sign B_Sign

Select whether B is a signed (two’s complement) or unsigned quantity.

Arithmetic type of B:

  • SIGNED – two’s complement, range $[-2^{N_{int}-1}, 2^{N_{int}-1})$
  • UNSIGNED – non negative only, range $[0, 2^{N_{int}})$

Default: SIGNED

Options: UNSIGNED SIGNED

T Integer Bits T_BitsInt

Number of INTEGER bits of T (the sign, when present, uses one of them).

Number of INTEGER bits of the operand T (1 to 64). When the port is SIGNED one of these bits carries the sign.

Default: 16

Options: 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64

T Fractional Bits T_BitsFract

Number of FRACTIONAL bits of T, i.e. how many bits sit to the right of the binary point. Total width = integer + fractional bits.

Number of FRACTIONAL bits of the operand T (0 to 64), i.e. the bits to the right of the binary point. Total port width = integer + fractional bits.

Default: 0

Options: 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64

T Sign T_Sign

Select whether T is a signed (two’s complement) or unsigned quantity.

Arithmetic type of T:

  • SIGNED – two’s complement, range $[-2^{N_{int}-1}, 2^{N_{int}-1})$
  • UNSIGNED – non negative only, range $[0, 2^{N_{int}})$

Default: SIGNED

Options: UNSIGNED SIGNED

OUT Integer Bits OUT_BitsInt

Number of INTEGER bits of OUT (the sign, when present, uses one of them).

Number of INTEGER bits of the result OUT (1 to 64). When the port is SIGNED one of these bits carries the sign.

Default: 16

Options: 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64

OUT Fractional Bits OUT_BitsFract

Number of FRACTIONAL bits of OUT, i.e. how many bits sit to the right of the binary point. Total width = integer + fractional bits.

Number of FRACTIONAL bits of the result OUT (0 to 64), i.e. the bits to the right of the binary point. Total port width = integer + fractional bits.

Default: 0

Options: 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64

OUT Sign OUT_Sign

Select whether OUT is a signed (two’s complement) or unsigned quantity.

Arithmetic type of OUT:

  • SIGNED – two’s complement, range $[-2^{N_{int}-1}, 2^{N_{int}-1})$
  • UNSIGNED – non negative only, range $[0, 2^{N_{int}})$

Default: SIGNED

Options: UNSIGNED SIGNED

Rounding Rounding

ROUND: round to nearest when discarding fractional bits. TRUNCATE: drop them (cheaper, adds a DC bias).

  • ROUND – round to nearest when discarding fractional bits
  • TRUNCATE – discard them (cheaper, introduces a negative bias)

Default: ROUND

Options: TRUNCATE ROUND

Saturation EnableSaturation

YES: clip to the largest representable output value on overflow. NO: wrap around (cheaper, but overflow changes sign).

  • YES – clip to the largest representable output value on overflow
  • NO – wrap around modulo the output width

Default: YES

Options: NO YES

Status Flags StatusFlags

YES: the block exposes three extra 1-bit outputs, valid together with OUT_DV – NAN (the result is mathematically undefined for the operands presented, or the operand had to be clamped into the convergence domain of the algorithm), OL (overflow: the true result left the output format and was saturated), and UL (underflow: the true result was not zero but requantized to zero). NO: the pins are not generated and the logic that produces them is not synthesised.

Default: YES

Options: NO YES

Pipeline Length PipelineLength

Fixed latency of the block, in clock cycles. More stages ease timing closure. Ignored in SERIAL mode, where the latency is set by the iteration count.

Fixed latency of the block in clock cycles (1 to 8). Higher values ease timing closure without changing the numerical result.

Default: 5

Options: 1 2 3 4 5 6 7 8

Functional description

$$ \mathrm{OUT} = A + (B - A),T $$

where

  • A – input operand, format $Q_{A_BitsInt.A_BitsFract}$
  • B – input operand, format $Q_{B_BitsInt.B_BitsFract}$
  • T – input operand, format $Q_{T_BitsInt.T_BitsFract}$
  • OUT – result, format $Q_{OUT_BitsInt.OUT_BitsFract}$

Fixed-point format

A value with $N_{int}$ integer bits and $N_{frac}$ fractional bits is stored on $N_{int} + N_{frac}$ bits and represents

$$ \text{value} = \frac{\text{raw integer}}{2^{N_{frac}}} $$

When the operand is SIGNED, one of the integer bits carries the sign (two’s complement). Each port is configured independently, so it is perfectly legal to feed a $Q_{16.0}$ signal and a $Q_{2.14}$ coefficient into the same block.

Implementation

Computed as A + (B - A)*T at full internal precision. Give T mostly fractional bits (for example 1 integer bit and 15 fractional bits).

Rounding and overflow

Two properties control how the internal full precision result is reduced to the output format:

  • Rounding – ROUND rounds to nearest when fractional bits are discarded, TRUNCATE simply drops them. Truncation is cheaper but introduces a systematic negative bias, which accumulates in a long processing chain.
  • Saturation – YES clips to the largest representable value, NO wraps around. Wrapping turns a small overflow into a full-scale sign flip, so saturation is strongly recommended for signal processing.

Latency

The PipelineLength property fixes the latency of the block in clock cycles (1 to 8). Raising it helps timing closure at high clock rates and does not change the numerical result. The symbol reports the configured latency.

Typical use cases

  • Interpolating between calibration points
  • Smooth cross-fading between two signals
  • Sub-sample interpolation of a waveform
