TM

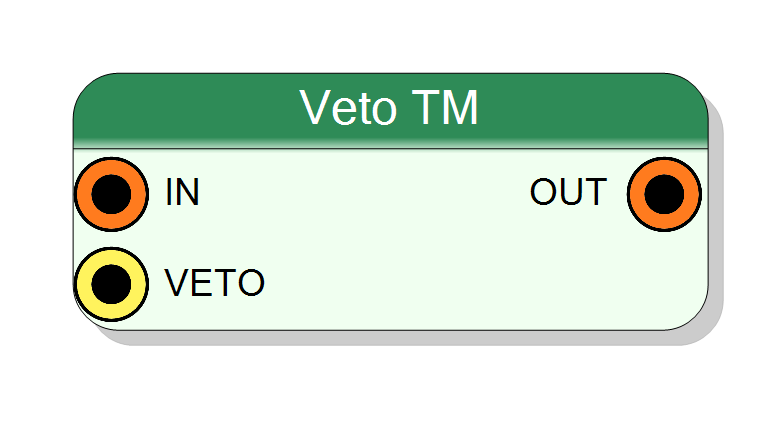

Block Preview

Introduction

This block implements a veto (inhibit) gate for time-multiplexed data. The TM input (IN) passes to the output when the corresponding VETO bit is 0. When a VETO bit is 1, the corresponding output bit is forced to 0.

$$ \mathrm{OUT} = \mathrm{IN} \land \lnot\mathrm{VETO}, $$

Equivalent to: OUT = IN AND (NOT VETO).

Important: IN is time-multiplexed, VETO is a scalar mask applied to all TM phases.

Pin Description

IN_0 Input 16 bit TM
VETO Input Variable bit BIT
Veto (inhibit) mask, always scalar (non-TM). Width: Input Size bits. When VETO bit is 1, corresponding output bit is forced to 0 in ALL TM phases. When VETO bit is 0, corresponding input bit passes through unchanged.
Default: Must be connected
OUT Output 16 bit TM
Vetoed output, always TM (same factor as IN). Width: Input Size × TM Factor OUT = IN AND (NOT VETO), where VETO is broadcast to all phases.
IN Variable bit
Input data, always TM. Width: Input Size × TM Factor Each TM phase occupies InputSize bits of the bus.
Default: Must be connected

Properties

Property window

Input size (bits) InputSize

Set the size of each input in bits

Number of bits per input sample (per phase). Range: 1 – 16384. VETO has this same width.

Default: 16

Range: 1 – 16384

TM Factor TMFactor

Time Multiplexing factor (number of phases)

Time-multiplexing factor (number of parallel phases). Range: 2 – 32. VETO is applied to all phases.

Default: 4

Range: 2 – 32

Functional description

The component implements a bitwise veto operation where:

  • IN is time-multiplexed (TM Factor phases)
  • VETO is a scalar mask (same InputSize, applied to all phases)

For each TM phase $i$ and each bit position $j$:

$$ \mathrm{OUT}{i}[j] = \mathrm{IN}{i}[j] \land \lnot\mathrm{VETO}[j] $$

The same VETO mask is applied to all TM phases in parallel.

Truth table (per bit)

IN VETO OUT
0 0 0
1 0 1
0 1 0
1 1 0

When VETO[j] = 1, the bit j is blocked (forced to 0) in all TM phases. When VETO[j] = 0, the bit j passes through unchanged in all TM phases.

Example

With InputSize = 4, TM Factor = 4, VETO = “1010”:

  • Bit 3 (VETO=1): blocked in all phases → output always 0
  • Bit 2 (VETO=0): passes through in all phases
  • Bit 1 (VETO=1): blocked in all phases → output always 0
  • Bit 0 (VETO=0): passes through in all phases

Timing

Purely combinational with zero latency.

Typical use cases

  • Disabling trigger channels based on external conditions
  • Implementing busy/deadtime logic with channel masks
  • Multi-channel gating and control
  • Bitwise masking of TM data streams
