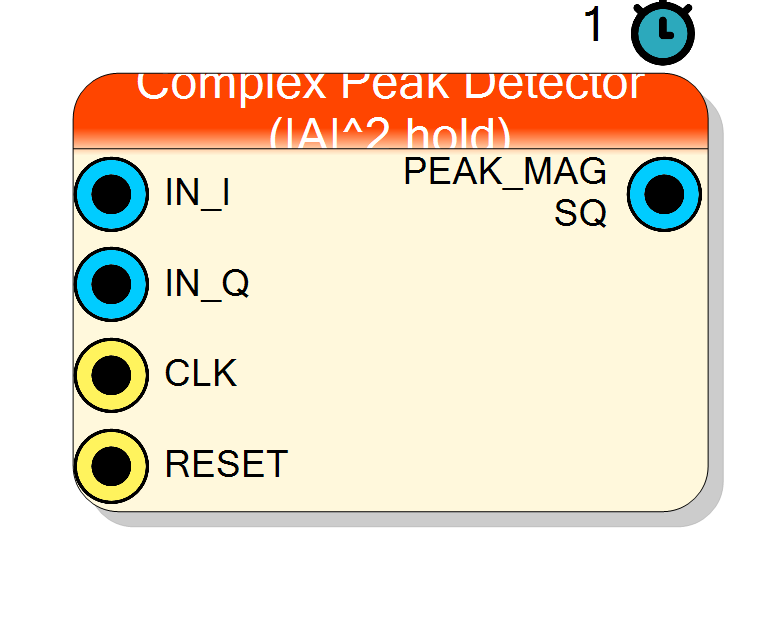

Block Preview

Introduction

The Complex Peak Detector computes the instantaneous power of every incoming sample and reports the largest value seen recently:

      mag[n]  = IN_I[n]^2 + IN_Q[n]^2      (|A|^2, squared magnitude)
    PEAK    = max held value

It is a peak-with-hold detector, not a full sliding-window maximum. Whenever a new sample exceeds the current peak, the peak jumps up to it immediately and the hold timer restarts. If no new maximum arrives within HoldLen samples, the timer expires and the peak is refreshed (dropped) to the current sample. This is the behaviour normally wanted for RSSI / envelope tracking: fast attack, timed release.

Pin Description

IN_I Input InputSize bit BIT VECTOR
In-phase (I) input sample. Signed, Input Bit Width bits.
Default: Must be connected
IN_Q Input InputSize bit BIT VECTOR
Quadrature (Q) input sample. Signed, Input Bit Width bits.
Default: Must be connected
CLK Input 1 bit BIT
System clock input. Default: Acquisition clock.
Default: Default Board Clock
RESET Input 1 bit BIT
HLS synchronous reset (ap_rst). Default: Global reset. Clears the held peak and the hold counter.
Default: Default Board Reset
PEAK_MAGSQ Output 2*InputSize + 1 bit BIT VECTOR
Held peak squared magnitude max(|A|^2). Signed (non-negative), 2*InputSize + 1 bits.

Properties

Property window

Input Bit Width InputSize

Bit width of each I/Q sample.

Bit width of each signed I / Q input sample. Range 4 to 32, default 16. Output width = 2*InputSize + 1.

Default: 16

Options: 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32

Hold Time (samples) HoldLen

Number of samples the peak is held before being reset to the current |A|^2.

Hold time in samples before the peak is released (refreshed to the current |A|^2). Selectable from 16, 32, 64, 128, 256, 512, 1024, 2048, 4096, 8192, 16384, default 256. A larger value holds a peak longer (slower release).

Default: 256

Options: 16 32 64 128 256 512 1024 2048 4096 8192 16384

Usage

Stateful / feedback behaviour

This is a stateful block. The C++ core keeps two static registers:

      static out_t peak;   // held maximum |A|^2
    static cnt_t cnt;    // samples since the peak was last refreshed

Each clock:

      mag = IN_I^2 + IN_Q^2
    if (mag > peak):                 peak = mag;  cnt = 0     // fast attack
    else if (cnt >= HoldLen-1):      peak = mag;  cnt = 0     // timed release
    else:                            cnt = cnt + 1

Note the release resets the peak to the current sample mag, not to zero, so the output continuously reflects a recent envelope estimate.

Squared magnitude (no square root)

The block outputs power |A|^2, not amplitude |A|. Avoiding the square root keeps it to two multipliers and an adder. If you need linear amplitude or dB, take the root / log downstream (or use the Complex Magnitude blocks).

Bit widths

Data is signed; the squared magnitude is non-negative.

  • IN_I, IN_Q : signed InputSize bits.
  • internal product I^2, Q^2 : 2*InputSize bits each.
  • PEAK_MAGSQ : signed 2*InputSize + 1 bits (the +1 holds the sum of the two squares without overflow).

Reset behaviour

RESET is the HLS synchronous reset (ap_rst). On assertion the held peak and the hold counter are cleared to zero. The peak then rebuilds from the incoming samples.

Latency and throughput

  • #pragma HLS PIPELINE II=1 : one sample pair per clock.
  • 1-clock latency.
  • All ports use ap_none.
  • #pragma HLS INTERFACE ap_ctrl_none port=return : no block-level control.

Typical applications

  • RSSI / envelope peak capture after a mixer or magnitude stage.
  • Threshold / trigger generation (compare PEAK_MAGSQ to a constant).
  • AGC assist feeding a slow level controller.

Resources & Timing

  • Latency: 1 clock cycle

  • Throughput: 1 sample per clock (II=1)

Two multipliers (I^2, Q^2), one adder, one comparator and a hold counter. No BRAM, no square root. Stateful (static peak + counter registers). Peak-with-hold, not a true sliding-window max, so it is O(1) per sample regardless of HoldLen.
