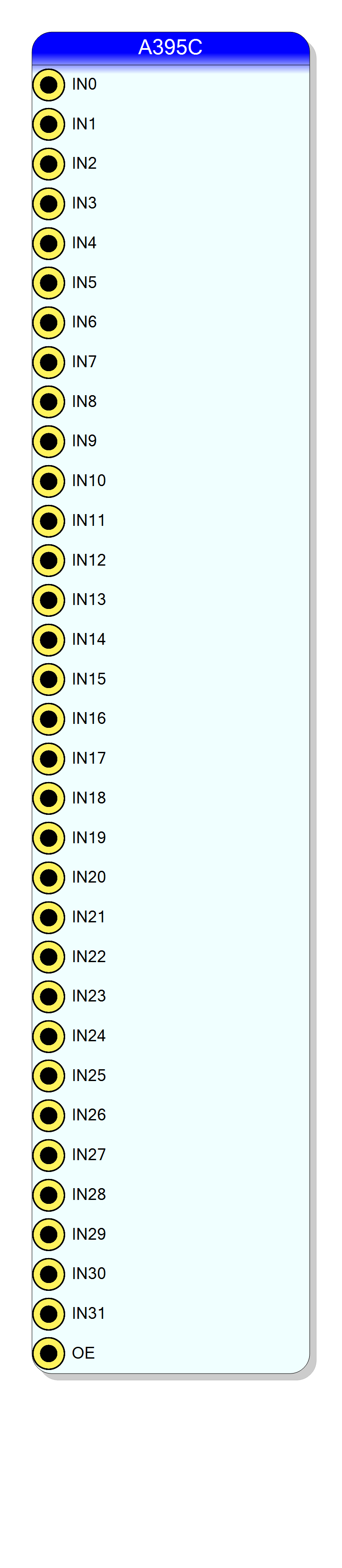

Block Preview

Introduction

The A395C is an expansion board for the V2495 that provides 32 ECL output channels. It can be installed in expansion slots D, E, or F of the V2495 mainboard.

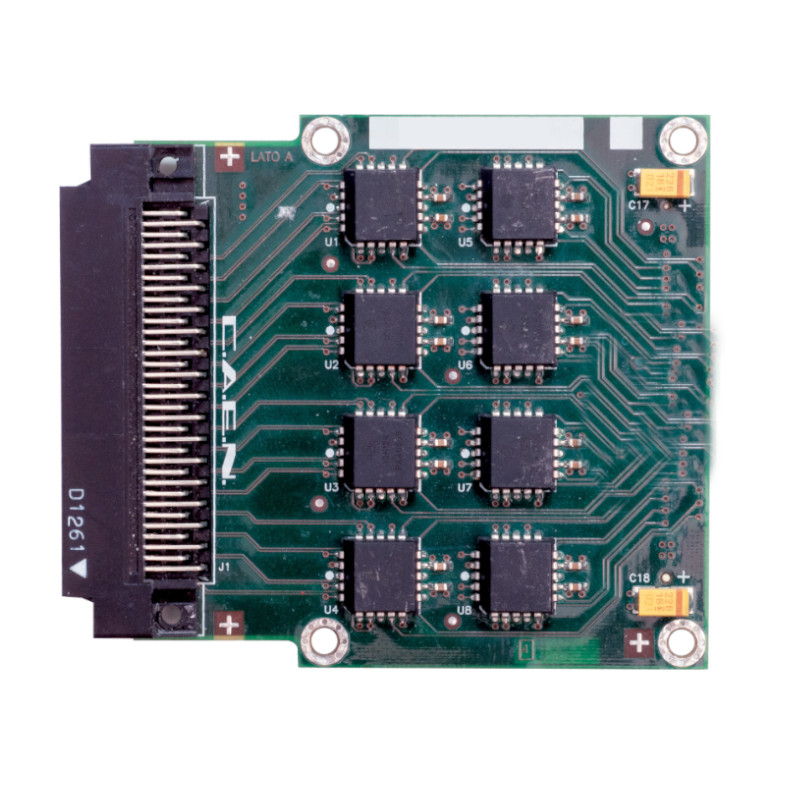

A395C Board

From the FPGA perspective, this board drives external signals. The 32 channels appear as inputs to the block (receiving data from your logic design) plus an Output Enable (OE) control.

Product link: CAEN A395C

Pin Description

IN_0 Input 1 bit BIT
IN_1 Input 1 bit BIT
IN_2 Input 1 bit BIT
IN_3 Input 1 bit BIT
IN_4 Input 1 bit BIT
IN_5 Input 1 bit BIT
IN_6 Input 1 bit BIT
IN_7 Input 1 bit BIT
IN_8 Input 1 bit BIT
IN_9 Input 1 bit BIT
IN_10 Input 1 bit BIT
IN_11 Input 1 bit BIT
IN_12 Input 1 bit BIT
IN_13 Input 1 bit BIT
IN_14 Input 1 bit BIT
IN_15 Input 1 bit BIT
IN_16 Input 1 bit BIT
IN_17 Input 1 bit BIT
IN_18 Input 1 bit BIT
IN_19 Input 1 bit BIT
IN_20 Input 1 bit BIT
IN_21 Input 1 bit BIT
IN_22 Input 1 bit BIT
IN_23 Input 1 bit BIT
IN_24 Input 1 bit BIT
IN_25 Input 1 bit BIT
IN_26 Input 1 bit BIT
IN_27 Input 1 bit BIT
IN_28 Input 1 bit BIT
IN_29 Input 1 bit BIT
IN_30 Input 1 bit BIT
IN_31 Input 1 bit BIT
OE Input 1 bit BIT

Output Enable control.

  • HIGH (1): The P/N terminals drive the INx values
  • LOW (0): The P/N terminals are in three-state (high-Z)

Use this to control when the outputs are active.

INx (IN0-IN31) Input 1 bit

Input signals from FPGA logic (32 total). Each channel is a 1-bit signal to be driven to the external output.

Connect your logic outputs to drive the ECL differential pairs.

Properties

Property window

Socket Socket

Select the socket hosting the expansion board

Selects the expansion socket where the A395C is installed. Available options: D, E, F. Must match the physical installation location on the V2495 mainboard.

Default: D

Options: D E F

Usage

Signal Direction

The A395C is an output expansion - it drives signals to external equipment via ECL differential pairs. From the SciCompiler perspective:

  ┌──────────────────────────────────────────────────────────────────┐
│                        A395C Signal Flow                         │
│                                                                  │
│   ┌─────────────┐                  ┌─────────────┐    External   │
│   │   FPGA      │                  │             │    Equipment  │
│   │   Logic     │═══► IN0-IN31 ═══►│   A395C     │═══►           │
│   │             │                  │  (32 ch)    │    ECL        │
│   │             │═══► OE ─────────►│             │    Signals    │
│   └─────────────┘                  └─────────────┘               │
└──────────────────────────────────────────────────────────────────┘


Output Enable (OE)

The OE (Output Enable) pin controls the output driver state:

OE State Behavior
HIGH (1) Outputs are driven with INx values
LOW (0) Outputs are in three-state (high impedance)


Expansion Socket Selection

The A395C can be installed in one of three expansion sockets:

Socket Description
D Expansion slot D
E Expansion slot E
F Expansion slot F

Select the appropriate socket during block creation to match the physical installation.


Signal Characteristics

Parameter Value
Channels 32
Signal type ECL (differential)
Direction Output from V2495
Output control Three-state via OE

A395B vs A395C

Feature A395B A395C
Output standard LVDS ECL
Channels 32 32
OE control Yes Yes

Choose based on your external equipment requirements.

Resources & Timing

  • Latency: Minimal (output buffer delay only)

  • Throughput: 32 channels at FPGA clock rate

  • ECL differential output standard
  • Three-state control via OE pin
  • Each channel independently driven from FPGA

Supported Boards

  • V2495
