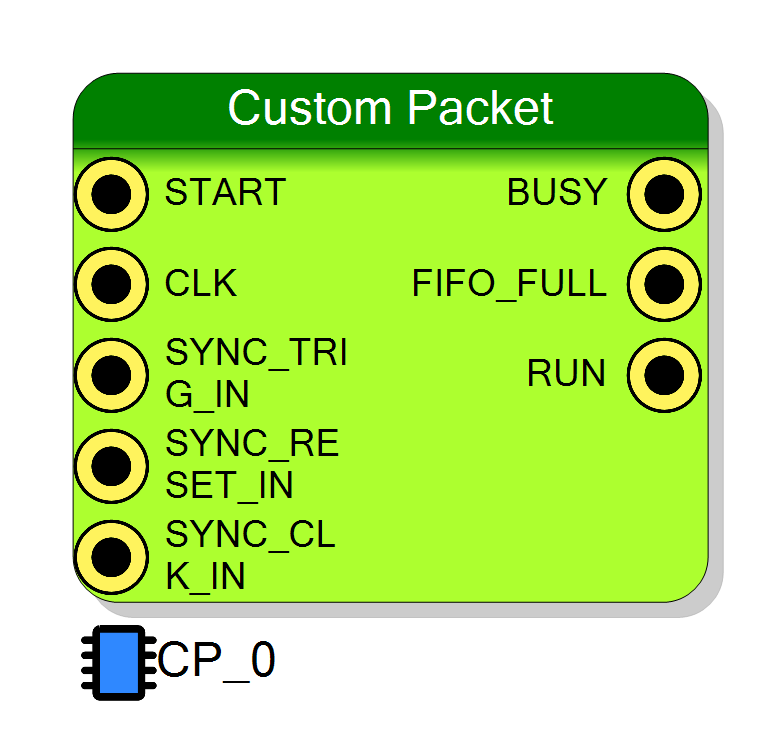

Block Preview

Introduction

The Custom Packet block enables list mode data transfer with a fully customizable packet format. Using a graphical Packet Creator tool, you define the exact structure of data packets that are pushed into an output FIFO and transferred to the host PC.

The packet data can be read via Resource Explorer (with file dump capability) or programmatically using the SciSDK library.

SciSDK Documentation: https://nuclearinstruments.github.io/SCISDK/

Pin Description

START Input 1 bit BIT

Packet trigger input. A rising edge latches all INx values and initiates packet transfer to the FIFO.

Ignored while BUSY is HIGH.

CLK Input 1 bit BIT
Clock input signal. Default: CLK_ACQ (80 MHz on DT5550) or CLK_50 (50 MHz on V2495).
Default: Default Board Clock
SYNC TRIG IN Input 1 bit BIT
SYNC RESET IN Input 1 bit BIT
SYNC CLK IN Input 1 bit BIT
BUSY Output 1 bit BIT
Transfer busy indicator. HIGH while packet data is being transferred to the FIFO. START and input changes are ignored while BUSY is HIGH.
FIFO_FULL Output 1 bit BIT
Buffer overrun indicator. Goes HIGH if the FIFO overflows (data loss occurred). Monitor this signal to detect acquisition problems.
RUN Output 1 bit BIT
Acquisition running indicator. HIGH when acquisition has been started by software.
INx (IN0, IN1, ...) Input Programmable bit

User-defined input signals. The number and size of inputs is determined by the Packet Layout configuration.

All inputs are latched simultaneously on the rising edge of START. Data must be valid one clock cycle after START.

SYNC_TRIG_IN Input 1 bit
Multi-board synchronization: External trigger input. Increments the internal trigger counter even if no packet is transferred. Use for synchronized trigger counting across multiple boards.
SYNC_RESET_IN Input 1 bit
Multi-board synchronization: Reset input. Resets the trigger counter and external timestamp to zero.
SYNC_CLK_IN Input 1 bit
Multi-board synchronization: External timestamp clock. Use an external clock for timestamp generation across multiple boards.

Properties

Property window

Name EndpointName

Set the name of the endpoint

Default: CP_0

Number of samples per channel Samples

Set the number of samples stored for each acquisition

Default: 1024

Options: 128 256 512 1024 2048 4096 8192 16384 32768 65536 131072 262144 524288

Packet Layout PacketLayout

Packet Layout

SIM. Output SimOutput

What the block writes to disk WHEN THE PROJECT IS SIMULATED (no effect on the synthesized design). None: nothing is written, and no simulation code is generated at all. Single file: every packet built goes into one file, one after the other. Multi file per packet: one file per packet. The files are written in the sim_results folder of the project, named after _. The packet builder starts itself and its FIFO is drained as fast as it fills, so no packet is lost: in a simulation there is no software to start it or to read it out.

Default: None

Options: None Single file Multi file per packet

SIM. Data Format SimDataFormat

How the packet words are written. Binary - little endian (default): a raw byte stream, 4 bytes per 32-bit word, least significant byte first. No header, no timestamp: feed it straight to a decoder. Extension .bin Binary - big endian: the same, most significant byte first - this is the on-the-wire order most packet decoders expect. Hex text: one row per packet, ‘<time_ns> …’, each word as 8 hex digits. A nibble holding X/U is written as ‘X’. Extension .txt

Default: Binary - little endian

Options: Binary - little endian Binary - big endian Hex text

SIM. Max Packets SimMaxPackets

Stop capturing after this many packets. The builder free-runs in simulation, so this is what keeps a long run from filling the disk - or, in ‘Multi file per packet’ mode, from producing a huge number of files. 0 means no limit.

Default: 1024

Name Name
Endpoint name for the Custom Packet. Used to identify the component in software (Resource Explorer, SciSDK). Default: CP_0
Number of samples per channel Number of samples per channel

Output FIFO size in 32-bit words. Available values: 128, 256, 512, 1024, 2048, 4096, 8192, 16384, 32768, 65536, 131072, 262144, 524288.

Larger buffers reduce the risk of overflow but use more FPGA resources. Default: 1024

Packet Layout Packet Layout

Opens the Packet Creator graphical editor. Define the packet structure by adding rows and elements.

Each row is 32 bits. Elements can be:

  • Constant: Fixed header/sync value
  • Timecode: Internal timestamp
  • Packet Counter: Sequential number
  • Input: Data from input pins
  • Packet Size: Total packet length

Multiple elements can share a row if their combined size ≤ 32 bits. Use slicing for inputs larger than 32 bits.

SIM. Output SIM. Output

What the block writes to disk when the project is simulated. It has no effect on the synthesized design — with None the simulation code is not even generated.

Value Effect
None Nothing is written (default).
Single file Every packet built goes into one file, one after the other.
Multi file per packet One file per packet.

Files go to the project’s sim_results folder, named after <page>_<endpoint> plus _pk<n> in the per-packet mode. The exact paths are printed in the compiler log.

In a simulation nobody writes CONFIG to arm the builder and nobody drains the FIFO, so the block starts itself and its FIFO is drained as fast as it fills — no packet is lost to FIFO_FULL.

Default: None

SIM. Data Format SIM. Data Format

How the packet words are written.

Value File Content
Binary - little endian .bin Raw byte stream, 4 bytes per 32-bit word, least significant byte first.
Binary - big endian .bin The same, most significant byte first — the on-the-wire order most packet decoders expect.
Hex text .txt One row per packet: <time_ns> <w0> <w1> …, each word as 8 hex digits.

The binary formats are a bare stream — no header, no timestamp, no padding — so the file can be fed straight to a decoder. The hex format is text, carries a header and the ns timestamp of the first word of every packet, and marks a nibble holding X/U as X rather than silently zeroing it.

Default: Binary - little endian

SIM. Max Packets SIM. Max Packets
Stop capturing after this many packets. The builder free-runs in simulation, so this is what keeps a long run from filling the disk — or, in Multi file per packet mode, from producing a huge number of files. 0 means no limit. Default: 1024

Usage

How It Works

The Custom Packet operates as follows:

  1. When START goes HIGH, all input signals are latched simultaneously
  2. The latched data is packaged according to your defined format
  3. The packet is pushed into the output FIFO
  4. The PC reads packets from the FIFO via USB/Ethernet
  ┌──────────────────────────────────────────────────────────────────┐
│                    Custom Packet Data Flow                       │
│                                                                  │
│   IN0 ────────►┌──────────────┐                                  │
│   IN1 ────────►│              │     ┌─────────────┐              │
│   IN2 ────────►│    Packet    │────►│    FIFO     │────► PC      │
│   ...         │   Builder    │     │   Buffer    │              │
│   START ─────►│              │     └─────────────┘              │
│                └──────────────┘                                  │
│                       ▲                                          │
│                       │                                          │
│              Packet Layout Definition                            │
└──────────────────────────────────────────────────────────────────┘

Important: The module latches inputs on the START rising edge. Data must be valid one clock cycle after START is issued.

Packet Creator Tool

The Packet Creator is a graphical editor for defining the packet structure. Access it by clicking the Edit button next to the “Packet Layout” property.

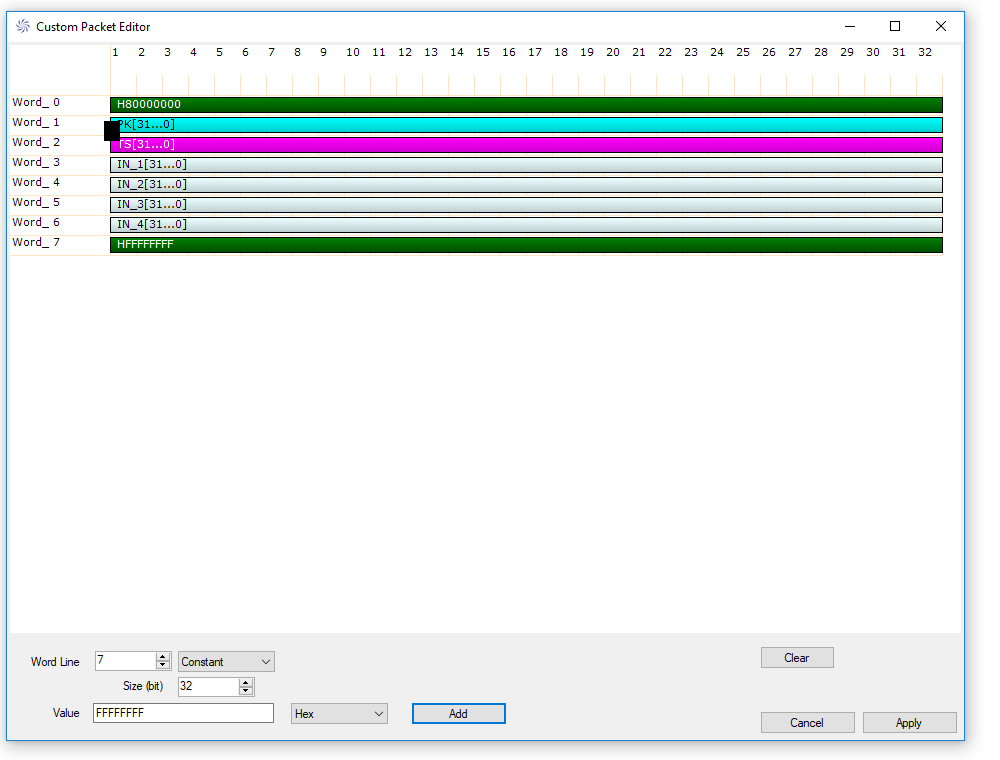

Packet Creator

Packet Structure

Each packet consists of one or more 32-bit rows. Each row can contain:

Element Type Description
Constant Fixed 32-bit value (useful as header/sync word)
Timecode Internal timestamp counter
Packet Counter Sequential packet number
Packet Size Total packet size in words
Input Data from input pins

Adding Rows and Inputs

  1. Add a new row: Click “Add Row” and select the row number (each row = 32 bits)
  2. Add an element: Click “Add Input/Constant/Timecode/etc.” and specify the size
  3. Multiple elements per row: If combined size ≤ 32 bits, multiple elements fit in one row

Data is enqueued in the output FIFO in row order:

Data Enqueue Order

Multiple Inputs Per Row

Multiple inputs can fit in a single row if their combined size ≤ 32 bits:

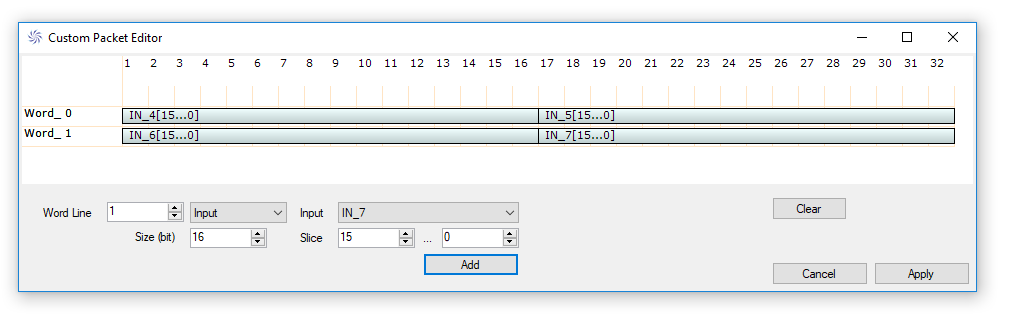

Multiple Inputs Per Row

Combining Inputs with Constants

Inputs can be combined with constant values in the same row:

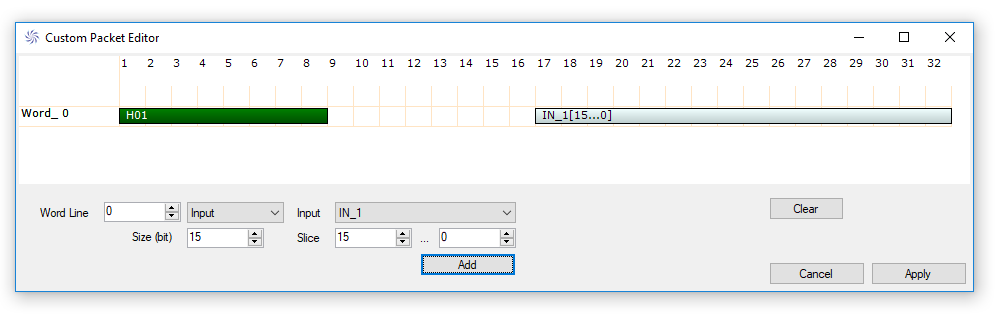

Constants with Inputs

Example: Simple Packet

  Row 0: [CONSTANT: 0xFFFFFFFF]     ← Header (sync word)
Row 1: [TIMECODE: 32 bits]        ← Timestamp
Row 2: [PACKET_COUNTER: 32 bits]  ← Sequence number
Row 3: [IN0: 16 bits][IN1: 16 bits]  ← Two 16-bit inputs
Row 4: [IN2: 32 bits]             ← One 32-bit input

Handling Large Inputs (Slicing)

If an input is larger than 32 bits, or if alignment requires it, you can slice the input across multiple rows:

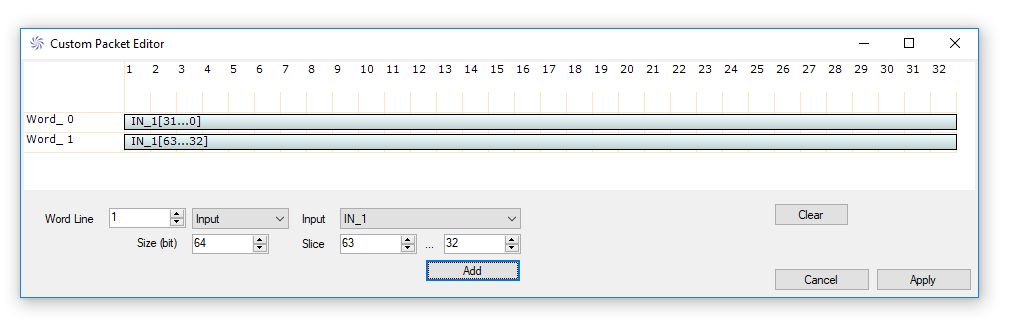

Slicing Large Inputs

  Input: ENERGY (48 bits)

Row 3: [ENERGY[31:0]]    ← Lower 32 bits
Row 4: [ENERGY[47:32]]   ← Upper 16 bits + padding

Right-click on a bar in the Packet Creator to access the context menu:

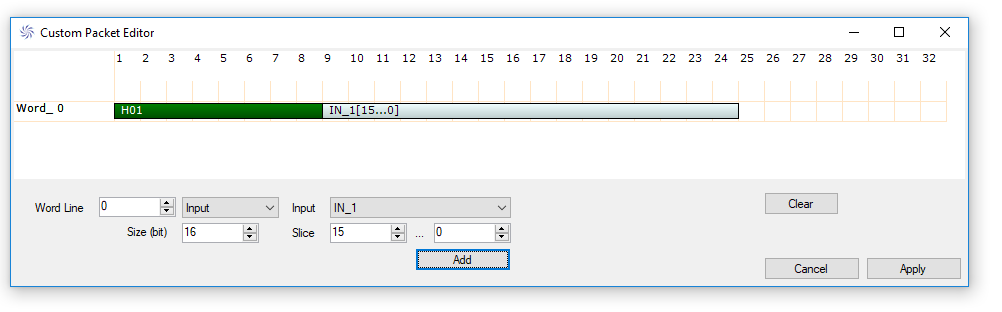

Right-Click Menu

From the context menu you can:

  • Edit the slice range (e.g., [31:0], [47:32])
  • Move the element to a different row
  • Adjust size and alignment

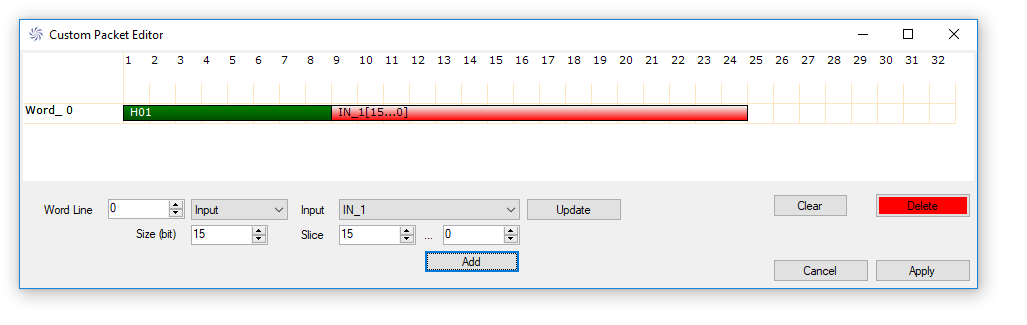

Edit Slice

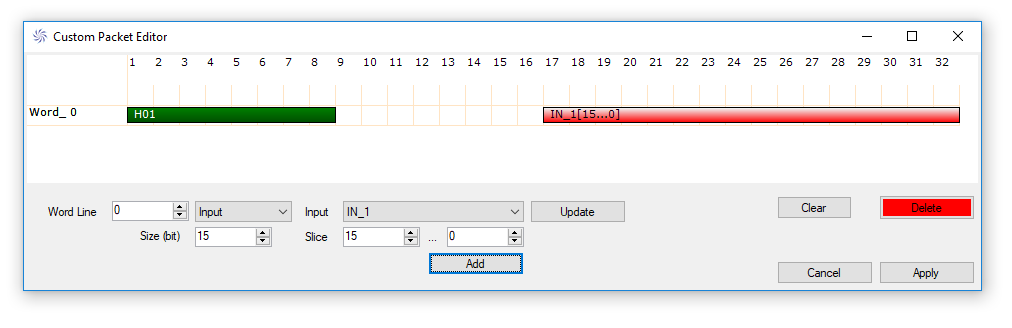

Move Row

Multi-Board Synchronization

The Custom Packet includes synchronization inputs for multi-board setups:

Input Function
SYNC_TRIG_IN External trigger that increments the trigger counter
SYNC_RESET_IN Resets trigger counter and external timestamp
SYNC_CLK_IN External timestamp clock

These allow multiple boards to share a common timebase and trigger numbering.

Status Outputs

Output Description
BUSY HIGH while packet transfer is in progress. Inputs and START are ignored.
FIFO_FULL HIGH if buffer overrun occurred (data loss).
RUN HIGH when acquisition is enabled by software.

Software Integration with SciSDK

The Custom Packet is fully supported by SciSDK. For complete documentation see: SciSDK Custom Packet Guide

Resource Explorer can also read and dump Custom Packet data to file.

Available Parameters

Parameter Access Description
acq_len R/W Maximum samples per FIFO read (default: 1024)
acq_mode R/W blocking or non-blocking
timeout R/W Timeout in milliseconds (blocking mode)
data_processing R/W raw or decode mode

Available Commands

Command Description
start Begin acquisition
stop Stop acquisition
reset Reset counters and FIFO
flush Clear FIFO content

C/C++ Example

c
  #include "SciSDK_DLL.h"

// Allocate decoded buffer (1024 packets)
SCISDK_CP_DECODED_BUFFER *buffer;
SCISDK_AllocateBufferSize("board0:/MMCComponents/CP_0",
                          T_BUFFER_TYPE_DECODED,
                          (void**)&buffer, _sdk, 1024);

// Configure decode mode
SCISDK_SetParameterString("board0:/MMCComponents/CP_0.data_processing",
                          "decode", _sdk);

// Start acquisition
SCISDK_ExecuteCommand("board0:/MMCComponents/CP_0.start", "", _sdk);

// Read data
while (running) {
    int ret = SCISDK_ReadData("board0:/MMCComponents/CP_0",
                               (void*)buffer, _sdk);
    if (ret == NI_OK) {
        // Process buffer->data...
        for (int i = 0; i < buffer->info.valid_data; i++) {
            // Access packet fields
        }
    }
}

// Stop and free
SCISDK_ExecuteCommand("board0:/MMCComponents/CP_0.stop", "", _sdk);
SCISDK_FreeBuffer("board0:/MMCComponents/CP_0",
                  T_BUFFER_TYPE_DECODED, (void**)&buffer, _sdk);

Python Example

python
  from scisdk.scisdk import SciSDK

sdk = SciSDK()
sdk.AddNewDevice("usb:10500", "dt5560", "board0", "RegisterFile.json")

# Allocate buffer
res, buf = sdk.AllocateBufferSize("board0:/MMCComponents/CP_0",
                                   sdk.T_BUFFER_TYPE_DECODED, 1024)

# Configure
sdk.SetParameter("board0:/MMCComponents/CP_0.data_processing", "decode")

# Start and read
sdk.ExecuteCommand("board0:/MMCComponents/CP_0.start", "")

while True:
    res, buf = sdk.ReadData("board0:/MMCComponents/CP_0", buf)
    if res == 0:
        for packet in buf.data:
            # Process packet...
            print(packet)

Best Practices

  1. Use a header constant: Start packets with a fixed value (e.g., 0xFFFFFFFF) for synchronization
  2. Include timecode: Essential for event timing and correlation
  3. Include packet counter: Helps detect data loss
  4. Monitor FIFO_FULL: Check for buffer overruns
  5. Size appropriately: Set FIFO size based on expected event rate

Simulation Output

In the synthesized design software arms the packet builder by writing CONFIG, and drains the output FIFO over the register bus. During a project simulation neither happens, so the builder would never start and nothing would be visible. With SIM. Output set, the generated core arms itself, keeps its FIFO drained, and writes every packet it assembles into the project’s sim_results folder.

The capture taps the FIFO write side, i.e. exactly the words the packet builder produces, and groups them by the packet length taken from the Packet Layout. What lands in the file is therefore the packet as designed — header constants, timestamps, counters and input fields already assembled — not a reconstruction.

This block has no separate simulation model: the same generated core is used for synthesis and simulation. The dump code is textio based and not synthesisable, so it is emitted only when SIM. Output is set; with None the generated VHDL is byte-for-byte the file this block has always produced.

Files are closed after every packet, so the data on disk is complete even if the simulation is stopped in the middle of the run, and an unwritable path degrades to one warning instead of killing the simulation.

Only Xilinx targets carry the dump code; on Intel targets the compiler warns that SIM. Output is not supported.

Resources & Timing

  • Latency: 1 clock cycle from START to data latch

  • Throughput: Limited by FIFO read speed and packet size

  • Uses BRAM for FIFO storage
  • Supports DMA on X5560 family (16 MWORD DDR3 FIFO)
  • Data readable via Resource Explorer or SciSDK
  • Resource Explorer can dump packets to file
